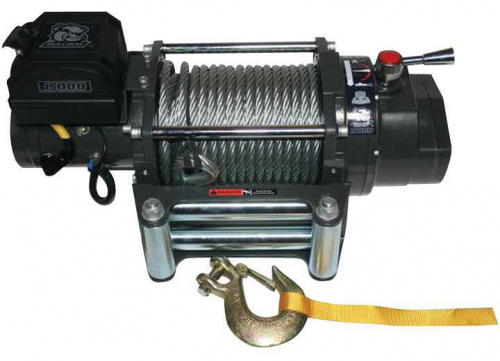

BULLDOG WINCH BDG10012

15000LB WINCH, HEAVY-DUTY, 7.2HP SERIES WOUND, ROLLER FAIRLEAD, 92FT WIRE ROPE

 Part# 10012

• Single Line Rated Pull:
  15,000 lbs
  (6818kg)
• Motor:
  12V DC 7.2hp Series Wound
• Control:
  Remote hand held with 12'
  (3.7m) lead
• Gear Ratio:
  520:1
• Clutch:
  Freespooling
• Brake:
  Automatic Load Hold - Unique ratcheting gear design
• Wire Rope Dia x L:
  15/32" x 92'
  (12mm x 28m)
• Drum Dia x L:
  3.5" x 8.8"
  ( 64mm x 224mm)
• Battery Leads:
  2ga x 6'
  (1.83mm x 1.8m)
• Overall Dimensions
  (L x W x H):
  25.3" x 8.5" x 11.3"
  (644 x 216 x 287mm)
• Mounting Bolt Pattern:
  10" x 4.5" + 10" x 6.3"
  (254 x 114.3mm) + (254 x 165.1mm)
• Weight:
  N.W. 158lbs
  (72kg)
• 2 Year Limited Warranty

Recommended for Maximum Performance:

• 650CCA Battery for maximum power
• Snatch block/pulley block to double line for loads over 8000lbs
