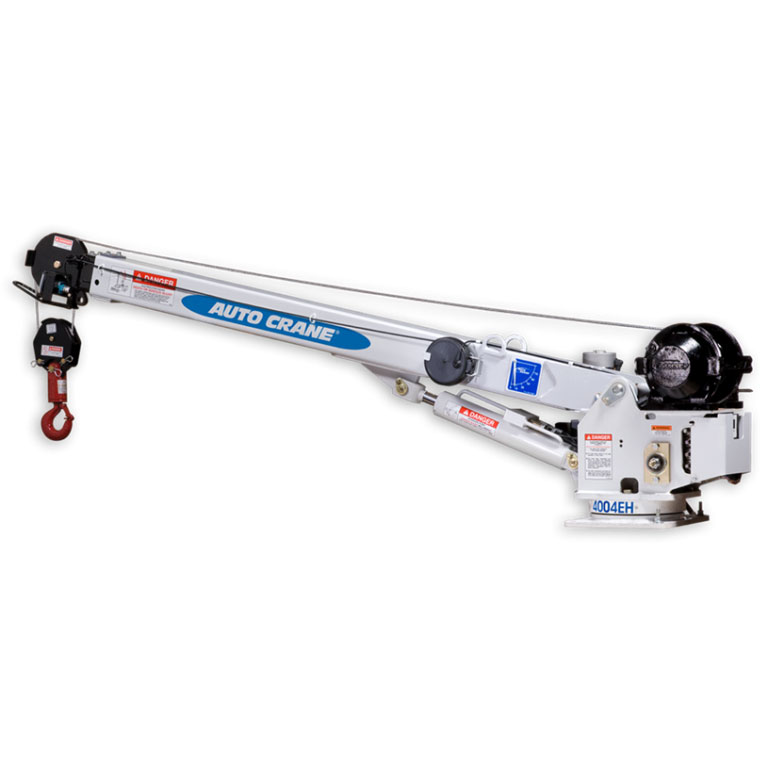

EHC-4
+ Tap or click image to enlarge

EHC-4 Tethered Pendant

No Reviews

Auto Crane

Hydraulic boom extension to 16’, manual extension to 20’

$15,985.60 $19,982.00 You Save $3,996.40
SKU: 404240020
Call To Order
1-866-658-7952

Hydraulic boom extension to 16’, manual extension to 20’

Weight
1,077 lbs (489 kg) 20 ft
Stowed Boom Length
11′ 11″ (3.63 m)
Extended Boom Length
20′ (6.1 m)
Width
1′ 10″ (.56 m)
Height
2′ 3″ (.69 m)
Base Plate Dimensions
16.75″ x 13.5″ (0.43 m x 0.34 m)
Single Line Speed
30 ft/min (9.17 m/min)
Boom Down
14-20 seconds (full stroke of cylinder)
Boom Retract
17-21 seconds (24-34 seconds — 20′ Boom)
Motor
4.8 hp 12 volt DC hoist motor
Cable
80 ft (24.3 m) of 5/16″ (8 mm) aircraft quality cable
Standards
ANSI B30.5, OSHA 1910.180

  • Truck must be equipped with jackleg extending minimum 3′ 9″ (1.14 m) from center-line of truck
  • 8,800 GVWR minimum chassis requirement. (Does not include bodies and accessories)
  • Battery Information: 575 amp cold cranking rating, 130 minute reserve capacity, maintenance type battery required for 12 volt DC operation. 70 amp minimum truck alternator required

Warranty

2 Year Warranty
