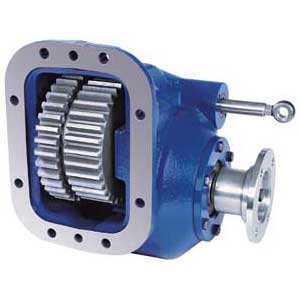

Muncie 82 Series

The Muncie 82 Series is a heavy duty, 8 bolt Power Take-off designed for driving mechanical equipment and high volume or multiple section hydraulic pumps with high torque requirements. The 82 Series features a cast iron housing, lever or air shift, and optional single or dual hydraulic pump mounts.

MUNCIE FREE SHIPPING

 MUNCIE PTO 82 SERIES

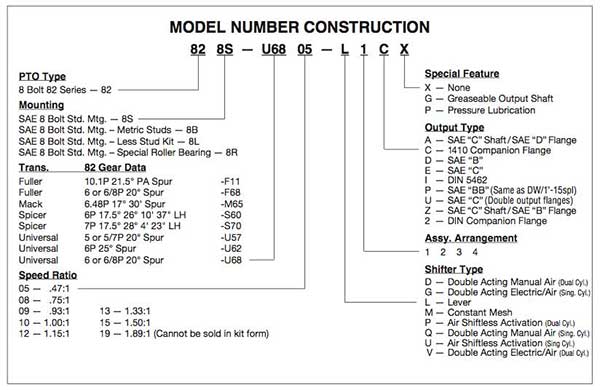

MUNCIE PTO 82 SERIES BUILD CHART

1 2
  • MUNCIE PTO 828B-U6205-M4EP
    MUNCIE PTO 828B-U6205-M4EP

    SKU: 828B-U6205-M4EP

    $3,083.07$1,801.80
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6P25°Spur
    • Speed Ratio .47:1
    Free Shipping
  • MUNCIE PTO 828B-U6210-D1EX
    MUNCIE PTO 828B-U6210-D1EX

    SKU: 828B-U6210-D1EX

    $4,280.56$2,501.61
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6P25°Spur
    • Speed Ratio 1.00:1
    Free Shipping
  • MUNCIE PTO 828B-U6808-D3EX
    MUNCIE PTO 828B-U6808-D3EX

    SKU: 828B-U6808-D3EX

    $4,139.77$2,419.20
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio .75:1
    • Shifter Type Double Act. Manual Air (Dual)
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6808-L1CX

    SKU: 828B-U6808-L1CX

    $3,370.33$1,969.67
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio .75:1
    • Shifter Type Lever
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6808-Q1CX

    SKU: 828B-U6808-Q1CX

    $4,026.96$2,353.42
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio .75:1
    • Shifter Type Double Act. Manual Air (Single)
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6808-Q1EX

    SKU: 828B-U6808-Q1EX

    $4,139.77$2,419.20
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio .75:1
    • Shifter Type Double Act. Manual Air (Single)
    Free Shipping
  • MUNCIE PTO 828B-U6809-G1EX
    MUNCIE PTO 828B-U6809-G1EX

    SKU: 828B-U6809-G1EX

    $3,891.03$2,229.61
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio .93:1
    • Shifter Type Air Shift (Special Order)
    Free Shipping
  • MUNCIE PTO 828B-U6809-L1AX
    MUNCIE PTO 828B-U6809-L1AX

    SKU: 828B-U6809-L1AX

    $4,449.23$2,600.20
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio .93:1
    • Shifter Type Lever
    Free Shipping
  • MUNCIE PTO 828B-U6809-P1EX
    MUNCIE PTO 828B-U6809-P1EX

    SKU: 828B-U6809-P1EX

    $3,961.08$2,314.92
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio .93:1
    • Shifter Type Air Shiftless Activation (Dual Cyl.)
    Free Shipping
  • MUNCIE PTO 828B-U6809-Q1AX
    MUNCIE PTO 828B-U6809-Q1AX

    SKU: 828B-U6809-Q1AX

    $5,105.86$2,983.93
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio .93:1
    • Shifter Type Double Act. Manual Air (Single)
    Free Shipping
  • MUNCIE PTO 828B-U6810-D1PX
    MUNCIE PTO 828B-U6810-D1PX

    SKU: 828B-U6810-D1PX

    $4,189.65$2,448.50
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio 1.00:1
    • Shifter Type Double Act. Manual Air (Dual)
    Free Shipping
  • MUNCIE PTO 828B-U6810-D3EG
    MUNCIE PTO 828B-U6810-D3EG

    SKU: 828B-U6810-D3EG

    $4,425.73$2,586.15
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio 1.00:1
    • Shifter Type Double Act. Manual Air (Dual)
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6810-D3EX

    SKU: 828B-U6810-D3EX

    $4,139.77$2,419.20
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio 1.00:1
    • Shifter Type Double Act. Manual Air (Dual)
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6810-L1EG

    SKU: 828B-U6810-L1EG

    $3,769.10$2,201.85
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio 1.00:1
    • Shifter Type Lever
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6810-P1CX

    SKU: 828B-U6810-P1CX

    $3,848.27$2,249.00
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio 1.00:1
    • Shifter Type Air Shiftless Activation (Dual Cyl.)
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6812-D3AX

    SKU: 828B-U6812-D3AX

    $5,105.86$2,983.93
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio 1.15:1
    • Shifter Type Double Act. Manual Air (Dual)
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6812-G3EX

    SKU: 828B-U6812-G3EX

    $4,272.47$2,496.90
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio 1.15:1
    • Shifter Type Air Shift (Special Order)
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6812-L3DX

    SKU: 828B-U6812-L3DX

    $3,483.14$2,035.61
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio 1.15:1
    • Shifter Type Lever
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6812-M1EG

    SKU: 828B-U6812-M1EG

    $3,141.56$1,835.98
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio 1.15:1
    • Shifter Type Constant Mesh
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6812-P1EX

    SKU: 828B-U6812-P1EX

    $3,961.08$2,314.92
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio 1.15:1
    • Shifter Type Air Shiftless Activation (Dual Cyl)
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6812-Q1CX

    SKU: 828B-U6812-Q1CX

    $4,026.96$2,353.42
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio
    • Shifter Type
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6813-D3ZX

    SKU: 828B-U6813-D3ZX

    $4,139.77$2,419.35
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio
    • Shifter Type
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6813-G1EX

    SKU: 828B-U6813-G1EX

    $4,272.47$2,496.90
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio
    • Shifter Type
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6813-G1PX

    SKU: 828B-U6813-G1PX

    $4,322.35$2,526.04
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio
    • Shifter Type
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6813-L1CX

    SKU: 828B-U6813-L1CX

    $3,370.33$1,969.67
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio
    • Shifter Type
    Free Shipping
  • MUNCIE PTO 82 SERIES
    MUNCIE PTO 828B-U6813-P1EG

    SKU: 828B-U6813-P1EG

    $4,247.04$2,482.03
    • SAE 8 Bolt Std. Mtg., Metric Stud Kit
    • Universal 6or6/8P20°Spur
    • Speed Ratio 1.33:1
    • Shifter Type Air Shitless Activation (Dual Cyl.)
    Free Shipping
1 2

Up to 500 lb.-ft. torque capacity and 95 H.P. @1000 RPM: Power to drive high volume pumps, high CFM blowers

  • Double acting air shift: Positive engagement and disengagement
  • Two companion flange output types: Versatility for remote pump and mechanical drives
  • Seven direct mount pump options: S.A.E. "B", "BB", "C", "D"; and DIN 5462 mounts
  • Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance





Common Applications:

  • Dry bulk tankers
  • Vacuum trucks
  • Class 8 Wreckers
  • Bulk Feed Mixers
  • Log loaders
  • Generator sets
  • Tank trucks





Specifications:

  • Weight: 85 lbs.
  • Housing Construction: Cast Iron
  • Speed Ratios: 8
  • Maximum Torque: 500 lb. ft.
  • Output Shaft Options: 9
  • Rotatable Pump Flange: Standard
  • Assembly Arrangements: 2



 82 Series PTO

MUNCIE POWER TAKE OFF
