Western Tornado Drive Parts Serial #0905-Higher

Western Tornado Drive Parts Serial Number Starting #0905- Higher

Verify Serial Number For Proper Parts Identification

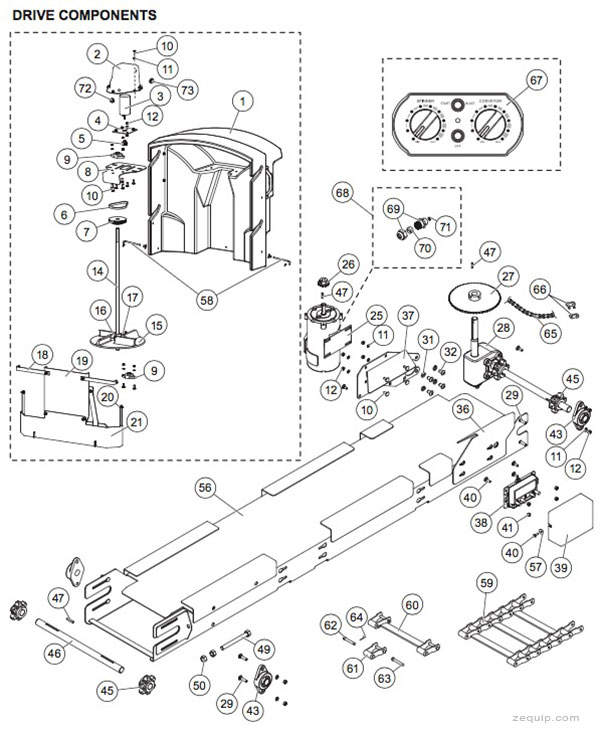

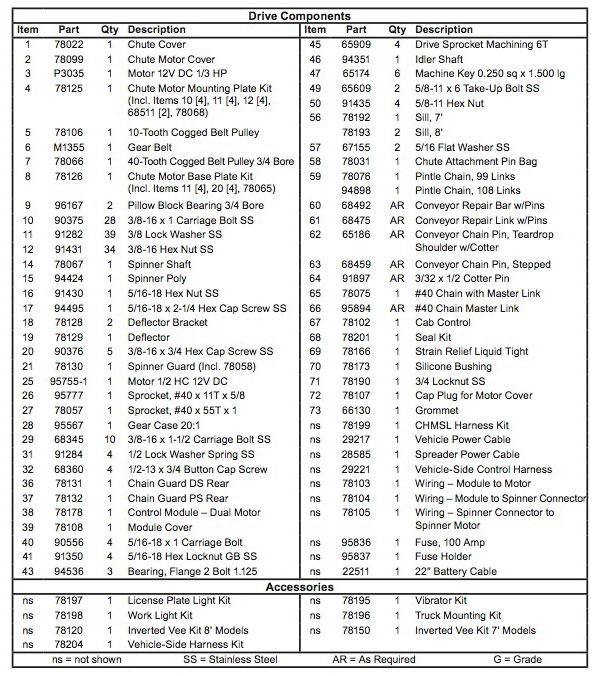

FISHER POLY-CASTER GENERATION 2 DRIVE COMPONENTS PARTS DIAGRAM CURRENTFISHER POLY-CASTER GENERATION 2 DRIVE COMPONENTS PARTS DIAGRAM CURRENT LIST
Tap or Click Images to Zoom

Current Version

Older Tornado Listed Below

FISHER POLY-CASTER GENERATION 2 DRIVE COMPONENTS PARTS DIAGRAM UPDATEDFISHER POLY-CASTER GENERATION 2 DRIVE COMPONENTS PARTS DIAGRAM UPDATED LIST
Tap or Click Images to Zoom

Older Tornado Listed Below

FISHER POLY-CASTER GENERATION 2 DRIVE COMPONENTS PARTS DIAGRAMFISHER POLY-CASTER GEN 2 PARTS LIST DRIVE COMPONENTS
Tap or Click Images to Zoom
65909 Drive Sprocket
Average rating:
average rating 100%
Drive Sprocket 6T X 1.125in I.D.
$28.70 $35.87
SKU 65909
Currently Out Of Stock - Call For Availability
  • Poly-Caster/Pro-Caster Spreaders/Ice Breaker/SteelCaster
  • Fisher/Western Factory Original Part

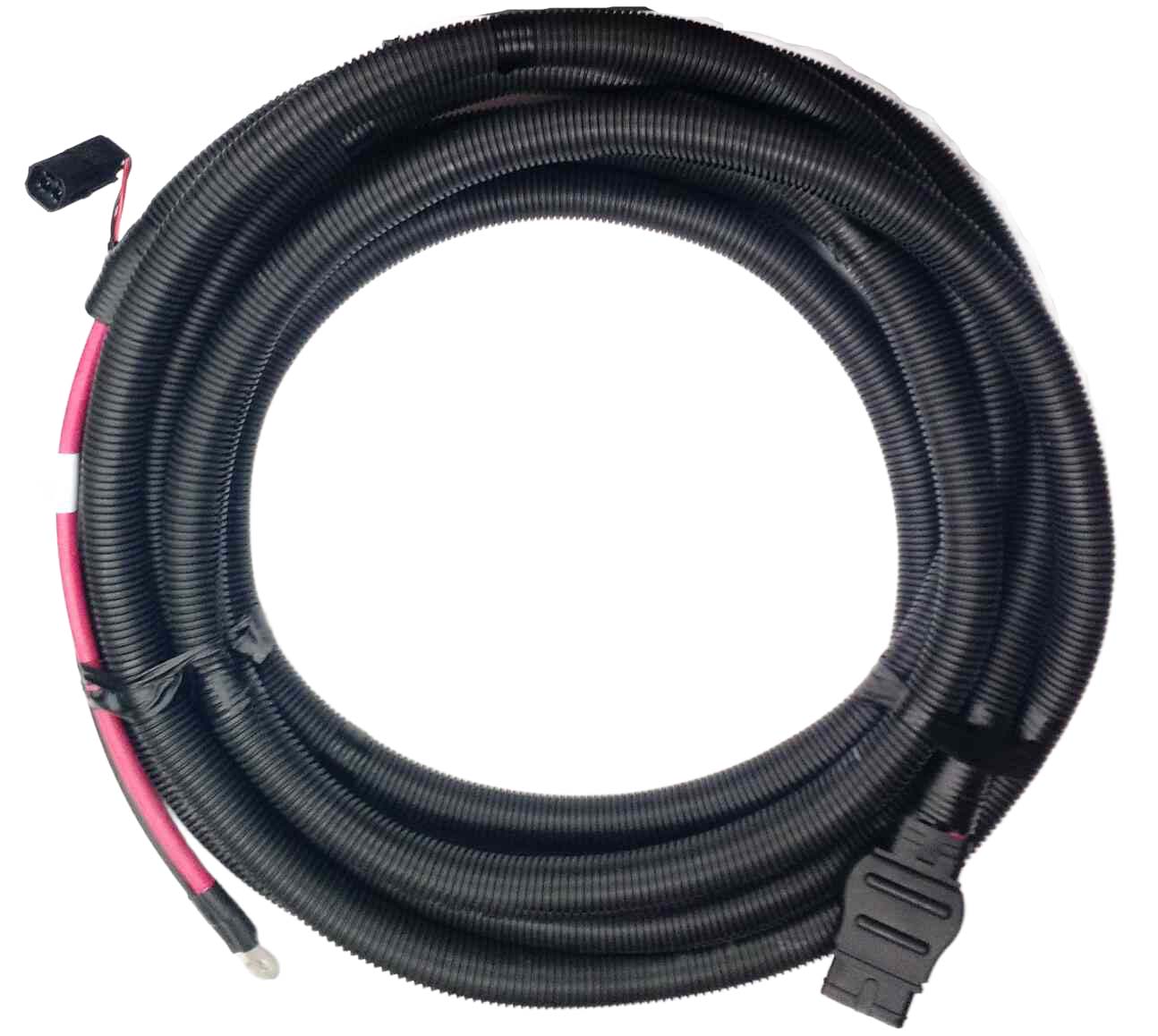

29217 Harness
Average rating:
average rating 100%
Vehicle Cable Assembly Poly Hopper
$400.94 $501.17
SKU 29217
  • Poly-Caster / Torando
  • Fisher/Western Factory Original Part

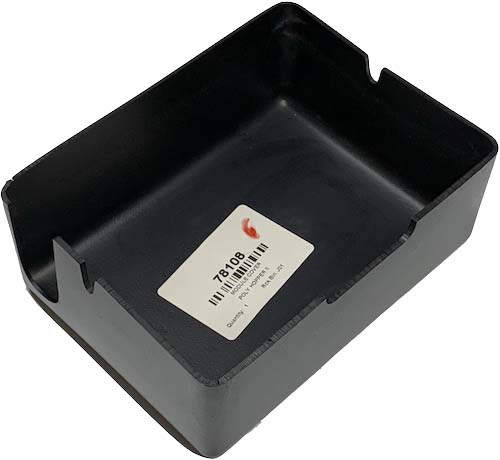

Fisher Module Cover Spreader 78108
Module Cover
$55.02 $68.78
SKU 78108
  • Fisher/Western Factory Original Part

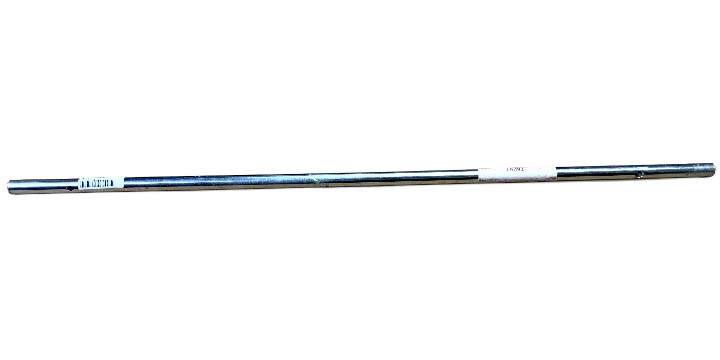

Fisher Spinner Shaft 78067
Average rating:
average rating 100%
Spinner Shaft
$78.60 $98.25
SKU 78067
  • Fisher/Western Factory Original Part

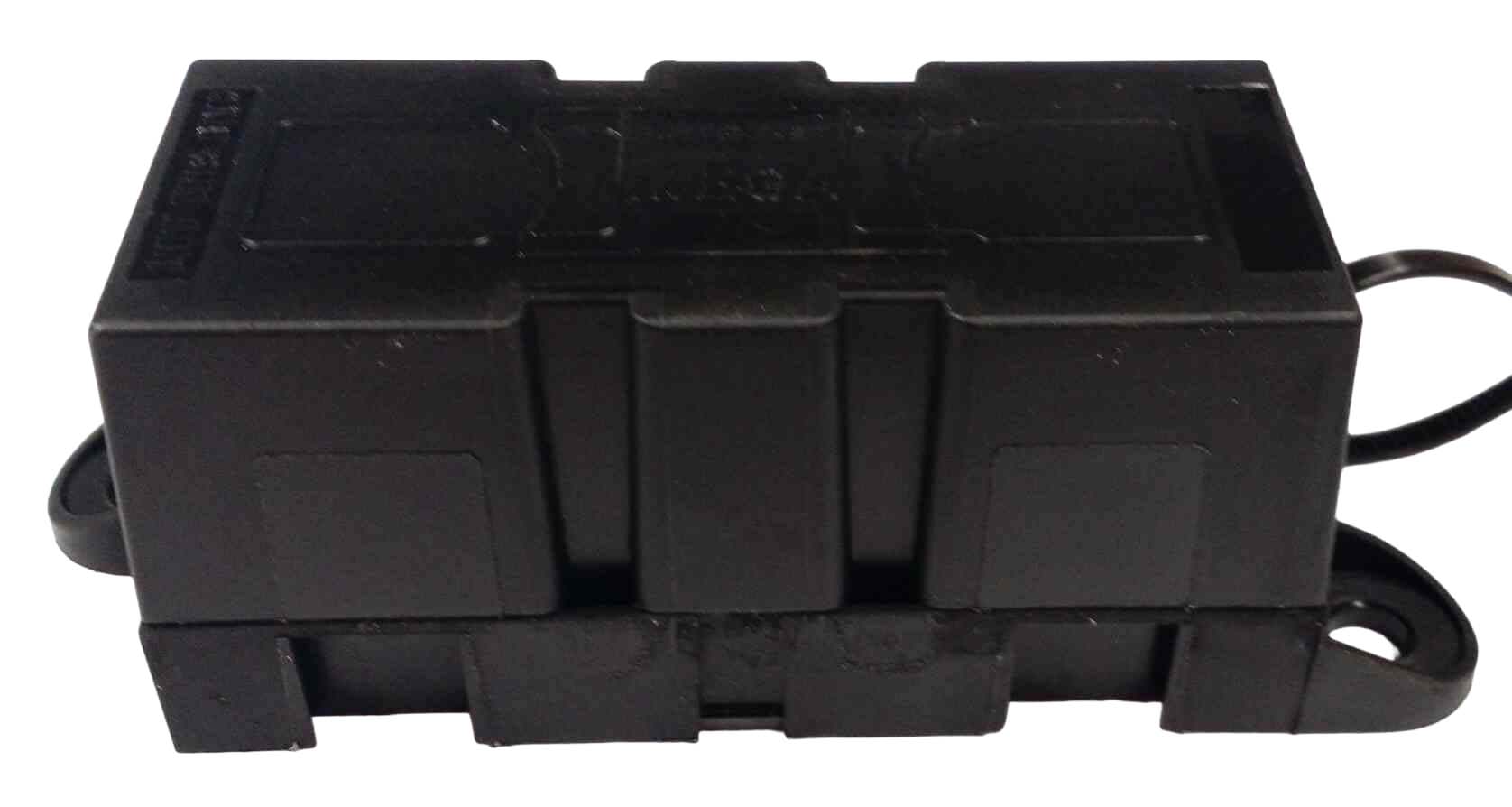

Fisher & Western 95837 Holder
FUSE HOLDER 95837
$43.98 $54.97
SKU 95837
  • Poly-Caster/Striker/Tornado
  • Fisher/Western Factory Original Part
Fisher 68492 Repair Bar
CONVEYOR REPAIR BAR HC 68492
$14.74 $18.42
SKU 68492
  • Fisher/Western Factory Original Part
78099 Fisher
SPINNER MOTOR COVER 78099
$71.68 $89.60
SKU 78099
Available as Special Order Only
Fisher 78102 Controller
DUAL CONTROL - CONTROLLER 78102
$349.23 $436.54
SKU 78102
Free Shipping
  • Fisher/Western Factory Original Part
Pulley 78106
10 TOOOTH COGGED BELT PULLEY 78106
$51.37 $64.21
SKU 78106
  • Poly-Caster 2/ Tornado
  • Fisher/Western Factory Original Part
Fisher 78178-1 Control Module
Average rating:
average rating 100%
CONTROL MODULE 78178-1
$767.58 $959.47
SKU 78178-1
Free Shipping
  • Poly-Caster / Tornado
  • Fisher/Western Factory Original Part
  • NON FLEET FLEX
Vibrator Accessory Kit 78195
VIBRATOR ACCESSORY KIT 78195
$481.60 $602.00
SKU 78195
Available as Special Order Only
  • Fisher/Western Factory Original Part
  • Poly Hopper Spreaders

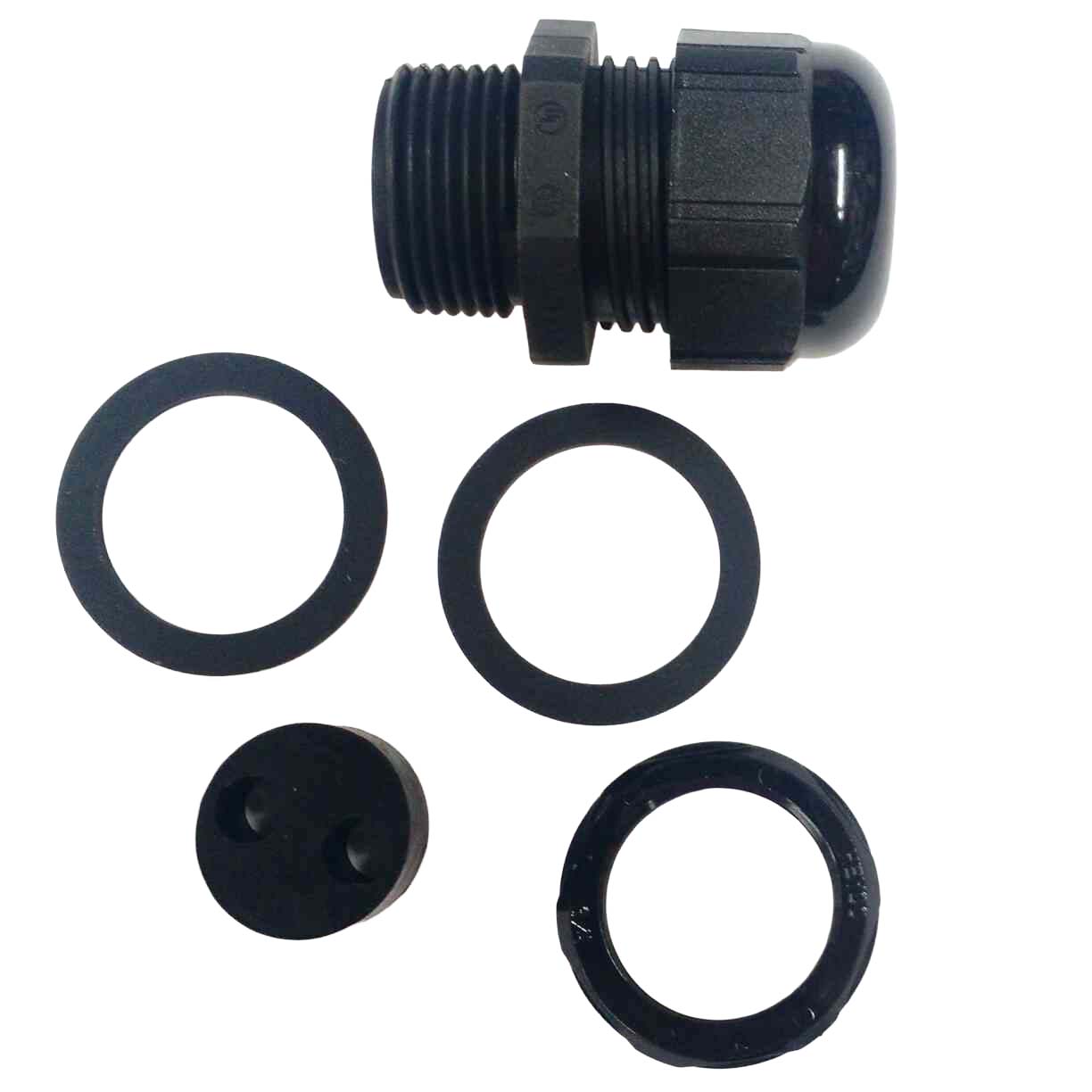

Fisher 78201 Seal Kit
FISHER SEAL KIT FOR 95839-1 78201
$28.18 $35.22
SKU 78201
Currently Out Of Stock - Call For Availability
  • Fisher/Western Factory Original Part

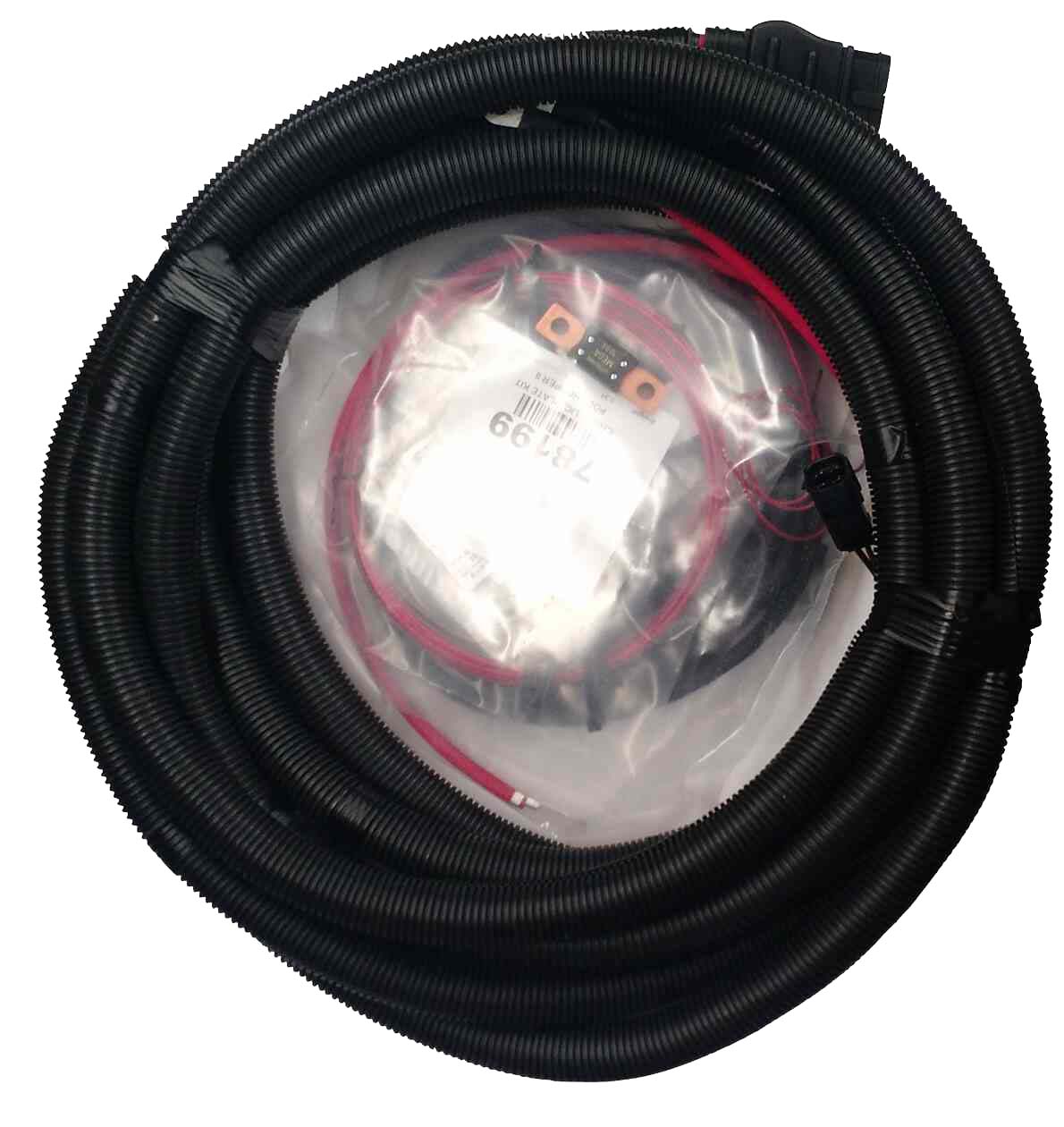

Fisher 78204 Harness
Average rating:
average rating 100%
VEHICLE SIDE HARNESS 78204
$508.53 $635.66
SKU 78204
  • Poly-Caster 2 / Tornado
  • Fisher/Western Factory Original Part
Fisher 95567 Gearcase
Average rating:
average rating 100%
GEARCASE 20:1 95567
$875.70 $1,094.63
SKU 95567
Currently Out Of Stock - Call For Availability
  • Fisher/Western Factory Original Part
Fisher & Western 94351 Idler
Average rating:
average rating 100%
IDLER SHAFT 94351
$89.34 $111.68
SKU 94351
  • Fisher/Western Factory Original Part
94424 Fisher
Average rating:
average rating 100%
SPINNER POLY TWO STAGE 94424
$137.96 $172.45
SKU 94424
  • Poly-Caster/Tornado
  • Polymer
  • Fisher/Western Factory Original Part
Fisher & Western Bearing 94536
BEARING - 2 BOLT FLANGE 94536
$30.00 $37.50
SKU 94536
  • 2 Bolt Flange
  • Poly-Caster/Striker/SteelCaster
  • Fisher/Western Factory Original Part
Fisher & Western 95777 Sprocket
Average rating:
average rating 100%
11-TOOTH SPROCKET #40 95777
$19.86 $24.83
SKU 95777
  • Fisher/Western Factory Original Part
100 AMP FUSES 95836
100 AMP FUSES 95836
$16.63 $20.79
SKU 95836
  • Fisher/Western Factory Original Part
SPROCKET 78057
55 TOOTH #40 1" BORE SPROCKET 78057
$84.46 $105.58
SKU 78057
  • Fisher/Western Factory Original Part
76796
Average rating:
average rating 100%

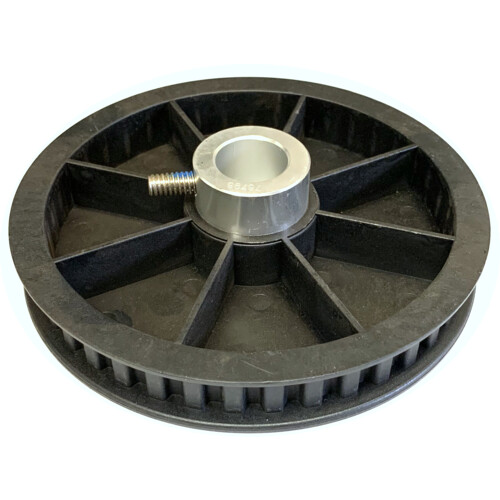

40 TOOTH COGGED BELT PULLEY .75" BORE 76796
$71.86 $89.82
SKU 76796
  • Fisher/Western Factory Original Part

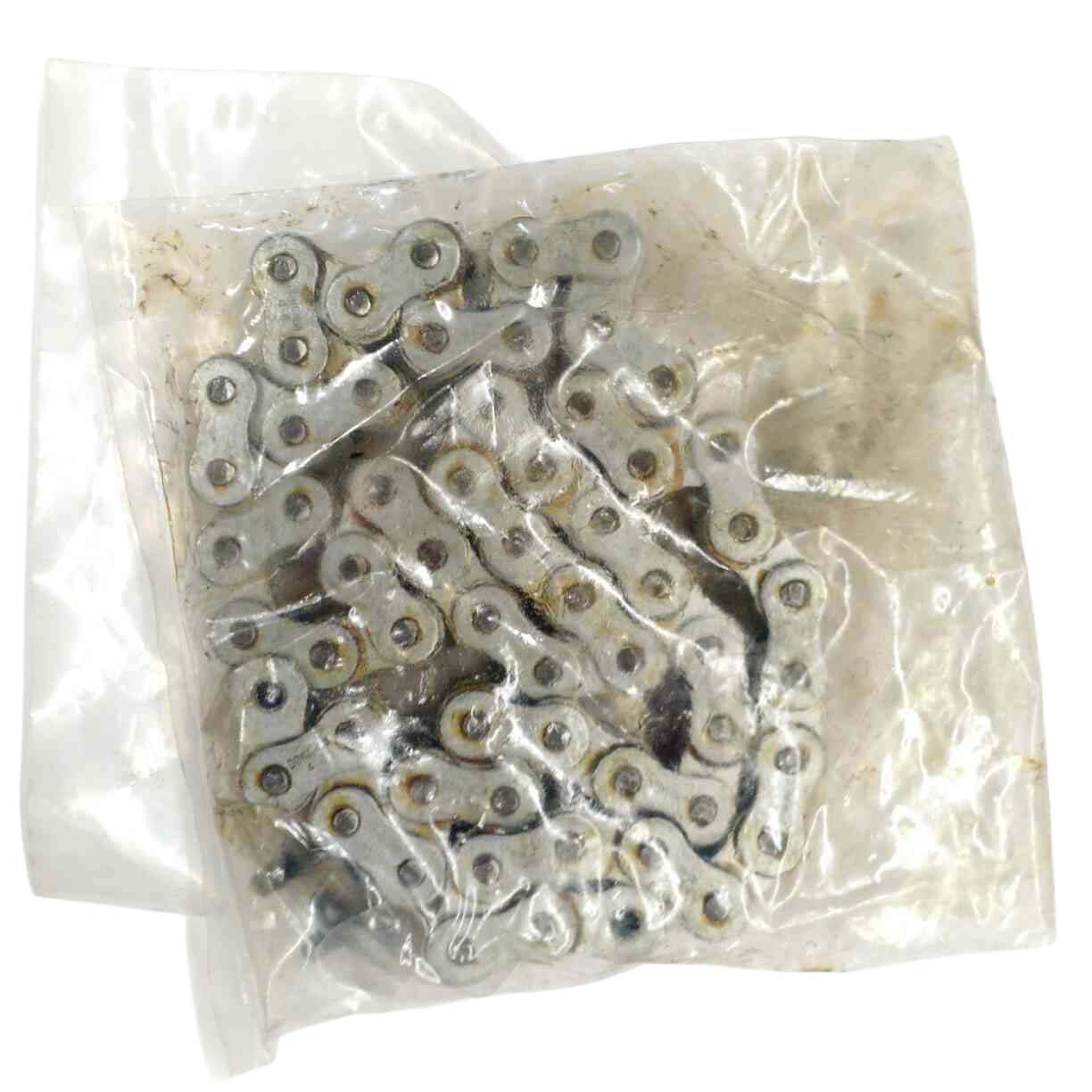

78075 Roller Chain
#40 ROLLER CHAIN 29.5" LONG 78075
$110.70 $138.38
SKU 78075
Currently Out Of Stock - Call For Availability
Bearing 96167
Average rating:
average rating 100%
BEARING -.750 ID 2 BOLT FLANGE 96167
$33.44 $41.80
SKU 96167
  • Poly-Caster / Model 2500
  • Fisher/Western Factory Original Part
FISHER 22511
BATTERY CABLE 22" (RED) 22511
$14.66 $18.33
SKU 22511
  • Battery Cable 22"
  • Fisher/Western Factory Original Part
95755 Motor
Average rating:
average rating 100%

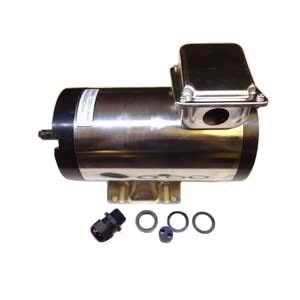

Motor 1/2HP 12V Service 95755-2
$767.55 $959.44
SKU 95755-2
  • Fisher/Western Factory Original Part
