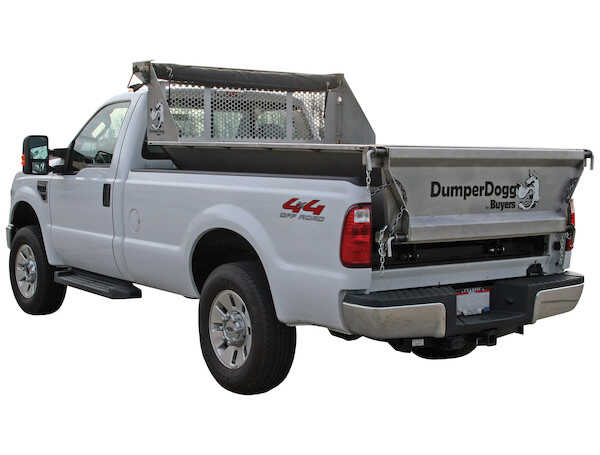

BUYERS DUMPERDOGG 8ft STAINLESS STEEL DUMP INSERT 5534000
DumperDogg Series-Power Up and Down, 1.5KW Motor (3 HP Max) For Hydraulic Pump, 6,000 lbs. Max, Dump Angle 0-45 Degrees.
- Transforms your 3/4 ton and up pickup into a dump truck, saving you time, effort and cost when unloading heavy or bulky material.
- Double pivoting and removable tailgate lets you load and access the truck bed with ease.

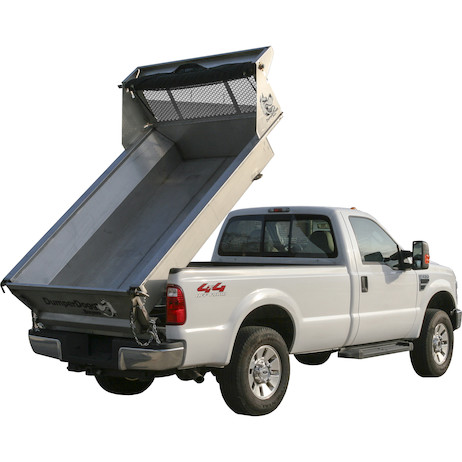

- Completely clears truck bed of material with a maximum 45º dump angle.
- Corrosion-resistant powder-coated steel frame and stainless steel insert.
- Included body-up indicator kit alerts you when the DumperDogg is raised.
- Pair with the SaltDogg Tailgate Replacement Spreader to turn your truck into a salt spreader during winter.
- Versatile design lets you continue to use your truck for transporting items like plywood sheets or pallets.
- Tarp system, side exensions, and cab guard sold separately (see "Accessories" below for more information).
- Backed with a 2 year warranty.
Buyers Products DumperDogg Stainless Steel Dump Insert transforms your pickup truck into a dump truck, making it easier to transport and unload heavy, loose material such as mulch or stone. Built from 12 Ga stainless steel, the inserts will fit either a 6 ft or an 8 ft domestic truck bed on 3/4 ton and up pickups. Each insert has a payload capacity of up to 6,000 lb.

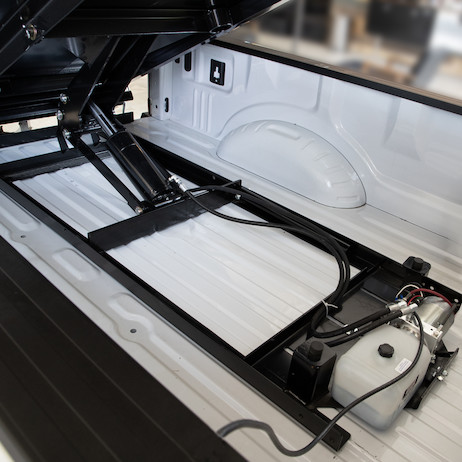

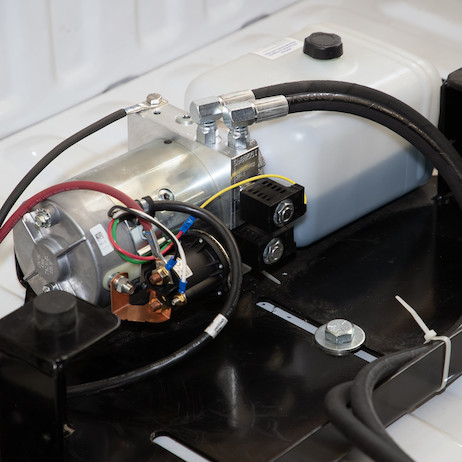

The DumperDogg Stainless Steel Dump Insert bolts to the frame of your vehicle and uses a powerful scissor hoist to provide a dump angle of up to 45º. The self-contained 3 HP power unit connects to the vehicle's electrical system to operate the power up/power down hoist. A body-up indicator kit is included to notify you when dump is in the upright position. The DumperDogg Stainless Steel Dump Insert has a tethered control box with a 10 ft cord so you can operate from a distance.
The multi-purpose DumperDogg Stainless Steel Dump Insert has a double pivoting and removable tailgate. Four 3/4 in. quick release hinge pins allow the tailgate to open up or down for loading or unloading. They can also be removed completely for easy access to the truck bed. These features enable you to continue to use your truck for transporting standard items, accommodating plywood sheets and pallets. A powder-coated steel structural frame maintains the integrity of the DumperDogg Stainless Steel Dump Insert for years of use.
SpecificationsLoad capcity of 6,000 Lbs. Fits Most 8 foot beds.
Fits Most 8' and 6' Beds
Power Up and Power Down
1.5Kw motor (3 HP max) for
2 cu yd cap.(8'); 1.5 cu yd cap.(6')
Payload cap.: 6,000 lbs. max*
Dump Angle 0°– 45°
12 Gauge Steel orNEW Stainless Steel Material
Black Powder Coat Finish or
NEW Stainless Steel
Includes Manual Safety Bar
Tethered Control Box with 9' Cord
Grease Fittings/Holes in Pivot Points
Includes Body-Up Indicator Kit (SK10)
20' Battery Cables
Black Powder Coat Structural
Double Pivoting and Removable
3/4" Diameter Tailgate Hinge Pins
- 5531010 - Bolt-On Cab Guard for 6' & 8' Steel Insert
- 5534010 - Bolt-On Cab Guard for 6' & 8' Stainless Steel Insert
- 5531020 - Wall Extension Bracket Kit for 6' & 8' Steel Insert (hardware & 2 brackets per side), accepts one 2" x 12" per side**
- 5534020 - Wall Extension Bracket Kit for 6' & 8' Stainless Steel Insert (hardware & 2 brackets per side), accepts one 2" x 12" per side**
- DTR5508 - Roll Tarp Kit, 5.4' x 9.5' for 6' Steel/Stainless Steel Inserts***
- DTR5511 - Roll Tarp Kit, 5.4' x 11.5' for 8' Steel/Stainless Steel Inserts***
