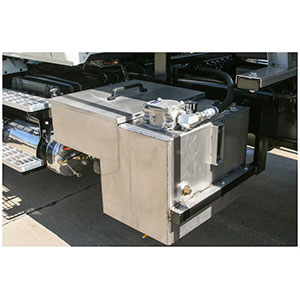

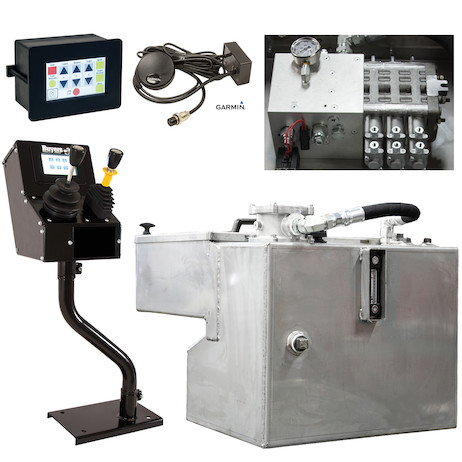

CENTRAL HYDRAULIC SYSTEM, 6 FUNCTION
+ Tap or click image to enlarge
$10,213.00
$16,340.94
SKU 6383061
Product Details
CENTRAL HYDRAULIC SYSTEM, 6 FUNCTION
- Reservoir Volume 30 Gal
- Reservoir Material 304 Stainless Steel
- Reservoir Mount Position Side Mount
- Number Of Functions Supported 6
- Hoist Action Power Up/Power Down - 1 Port Relief
- Plow Action Power Up/Power Down
- Spreader Control Included? Yes
- Spreader Control Type Electric Over Hydraulic
- Spreader Controller HVC06T
- Plow Control Included? Yes
- Plow Control Type Electric
- Hoist Control Included? Yes
- GPS Capable? Yes
- GPS Included? Yes
- Oil Level/Temperature Gauge Included? Yes
- Inlet Port 3/4 SAE ORB (-12)
- Work Ports 1/2 SAE ORB (-8)
- Outlet Port 2 NPT
- Suction Port 3/4 SAE ORB (-12)
- Auger/Chain Port 1/2 SAE ORB (-8)
- Spinner Port 1/2 SAE ORB (-8)
- Main Relief Setting 1500 PSI
- Port Relief Hoist 500 PSI
- Port Relief Angle 1500 PSI
- Maximum Flow Rate 28 GPM
- Maximum Pressure 3000 PSI
- Return Line Filter Included? Yes
- Return Line Filter Flow Rating 26 GPM
- Return Line Filter Rating 25 µm
- Suction Filter Included? Yes
- Suction Filter Flow Rating 49 GPM
- Suction Filter Rating 150 µm
- Magnetic Drain Plug Yes
