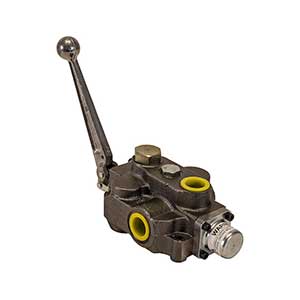

Buyers Directional Control Valve
+ Tap or click image to enlarge

Buyers Directional Control Valve

No Reviews

Buyers Products

DIRECTIONAL CONTROL VALVE 4 WAY SPR CTR #12 ORB

$329.10 $526.56 You Save $197.46
SKU: HV11AG2ED0

Buyers Directional Control Valve



  • Main Relief Setting 2000 PSI
  • Maximum Pressure 3500 PSI
  • Power Beyond (Y/N) Yes
  • Spool Action Power Up/Power Down
  • Maximum Flow Rate 30 GPM
  • Work Port Size 3/4 SAE ORB (-12)
  • Inlet Port Size 3/4 SAE ORB (-12)
  • Outlet Port Size 3/4 SAE ORB (-12)
  • Electrically Operated (Y/N) No



  • Number of Spools:1
  • Port Size and Type: All - 3/4in SAE
  • Spool Action: 4 way - Spring Action
  • Rated working Pressure: 2500 PSI (172 bar)
  • Max. Shock and Surge Pressure: 4000 PSI (276 bar)
  • Rated Flow Capacity: 30 GPM
  • Max. Spool Leakage: (100 PSI) 16 cc/min
  • Mounting, Any Position 3 mounting Holes for 3/8" Bolts
  • Weight 1 Spool: 13 lbs

  • Integral load holding check valves (prevents reverse flow through valve when shifting)
  • Integral differential poppet type relief valve, adjustable (set @ 2000 PSI, 10 GPM)
  • Balanced, select-fit spools (provide minimum leakage, smooth operation)
  • External spool seals (permit easy replacement, reduced maintenance cost)
  • 3/4" NPTF Cyl. 1/2" or 3/4" SAE work ports
