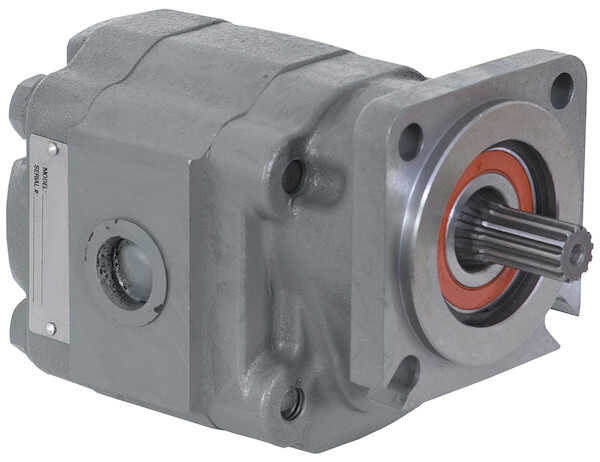

PUMP CCW 1-3/4in GEAR 3.5 CIR

Product Details

PUMP Counter Clockwise Rotation 1-3/4in GEAR 3.5 CIR

• Displacement 3 in.³/r
• Displacement 18 GPM
• Gear Width 1.750 "
• Input Mount Type Integral Bracket
• Material Cast Iron
• Mount Type SAE B 4 Bolt
• Pilot Diameter 4.00 "
• Shaft Size 7/8-13
• Shaft Type Splined
• Ports (Rear/Side) Side
• Inlet Port Size 1 1/4 NPT
• Maximum Pressure 3000 PSI
• Direct Or Remote Mount Direct Mount
• Outlet Port Size 1 1/4 NPT
• Rotation Counterclockwise
• Gear Size 1.75 "
• Flow At 600 RPM 10.80 GPM
• Flow At 1000 RPM 18 GPM
• Flow At 1800 RPM 32.4 GPM
• Flow At 900 RPM 16.2 GPM
• Flow At 1200 RPM 21.60 GPM
• Flow At 1500 RPM 27.00 GPM
• Flow At 2100 RPM 37.8 GPM
