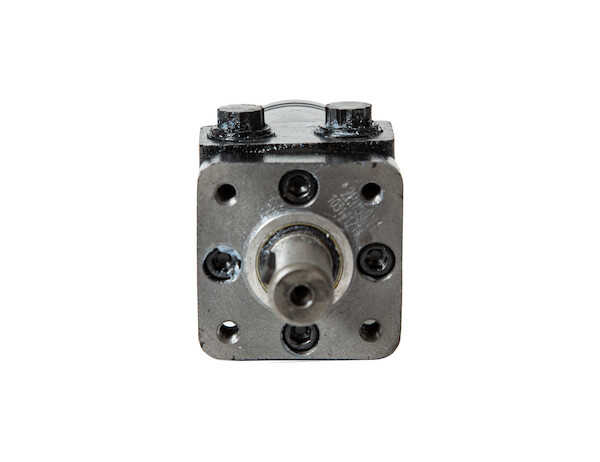

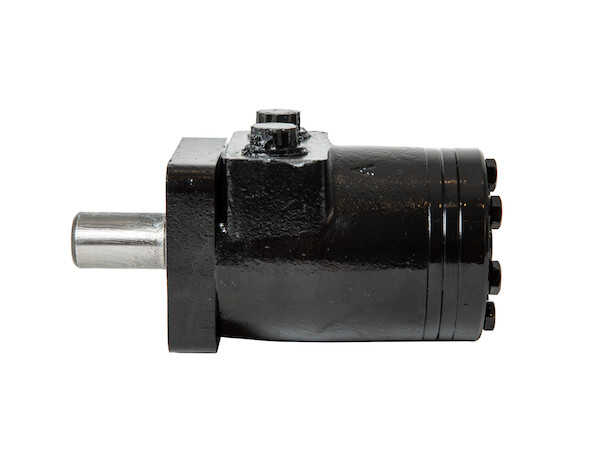

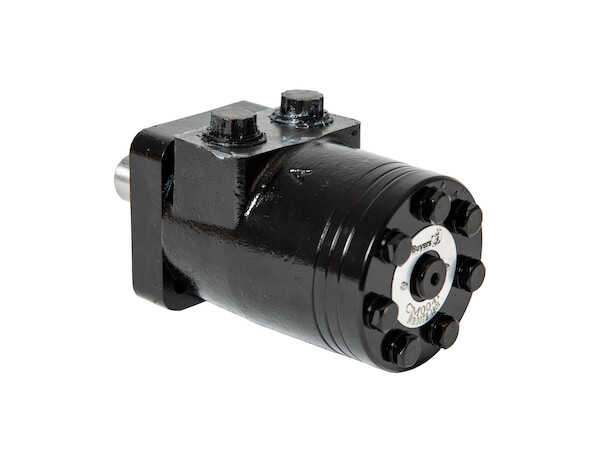

HYDRAULIC MOTOR 4-BOLT, 3.17 CIPR
+ Tap or click image to enlarge
$192.34
$307.74
SKU CM004P
Product Details
Compares To 101-1001-009
Flow (Continuous) 12 GPM
Input Mount Type 4 Bolt
Material Cast Iron
Maximum Case Pressure (Without Case Drain) 1500 PSI
Maximum Speed (Continuous) 969 RPM
Pilot Diameter 1.75 "
Shaft Keyway 0.25 "
Shaft Type Straight
Displacement 2.8 in.²
Flow (Intermittent) 14 GPM
Torque Rating (Continuous) 650 Inch Pound
Torque Rating (Intermittent) 720 Inch Pound
Port Size 1/2 NPT
Shaft Size 1.00 "
Specifications
- Meyer 60324
- Flink 462-1
- Swenson 04101-035-00
- Char-Lynn 101-1001
