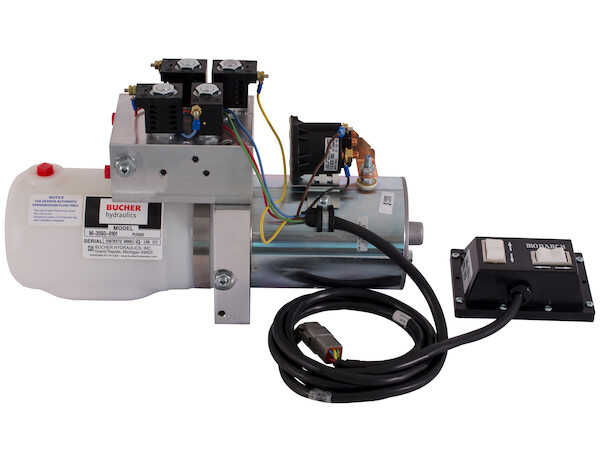

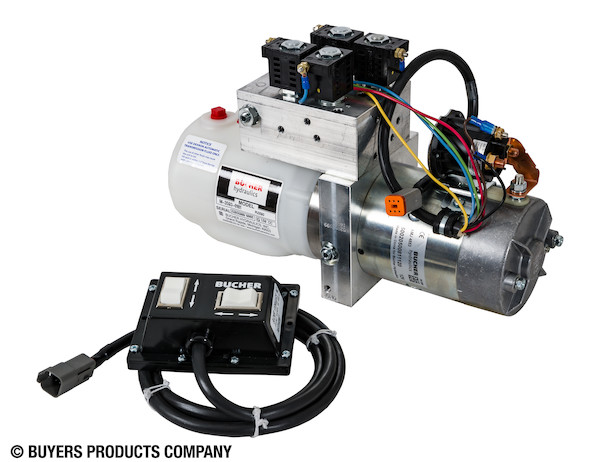

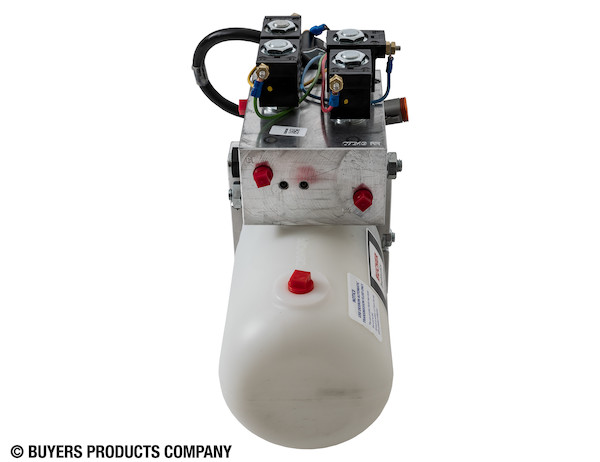

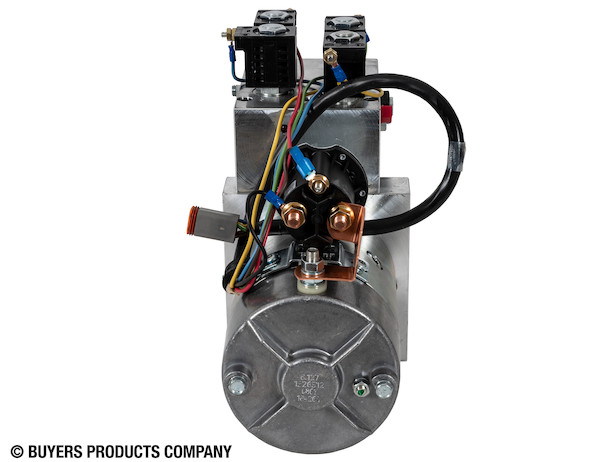

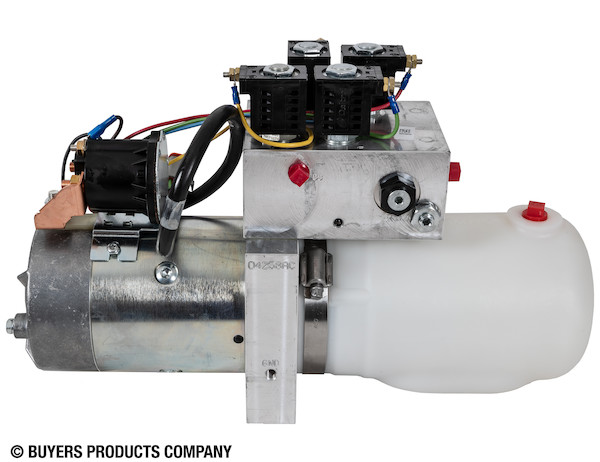

PU3593 POWER UNIT HYDRAULIC 12V DC SNOW PLOW
+ Tap or click image to enlarge
$1,054.33
$1,686.92
SKU PU3593
Product Details
POWER UNIT HYDRAULIC 12V DC SNOW PLOW
Manual Or Push Button Rocker Switch
Mounting Position Horizontal
Reservoir Material Glass Filled Nylon
Motor Horsepower 2 HP
Reservoir Volume 0.32 Gal
Pressure Rating 2000 PSI
Motor Voltage 12 VDC
Width 5.25 "
Length 15.38 "
Height 9.66 "
Spool Action Power Up/Gravity Down, Power Up/Power Down
Number Of Cartridge Valves 4
Outlet Port Size 1/4 NPT
Controller Included? Y
Control Cable Length 72 "
Motor Power (KW) 1.5
Specifications
| Part # | PU3593 |
| Description | 4-1/2" x 8" Poly Reservoir 1.36 Quart (79 in3) |
| Weight | 34 lbs. |
