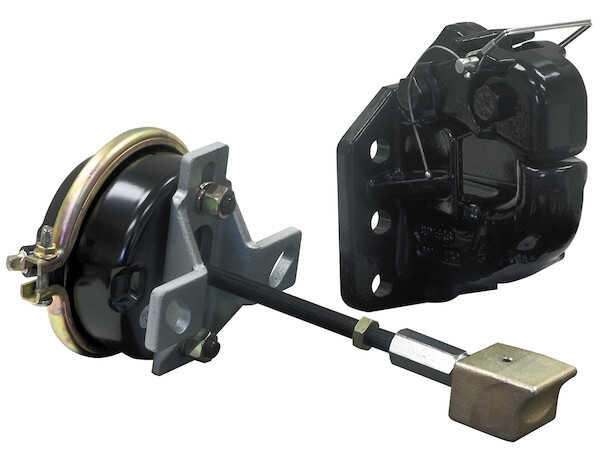

Pintle Hook - Commercial
+ Tap or click image to enlarge
$311.03
$566.50
SKU PH50AC
Product Details
PINTLE HOOK - COMMERCIAL 50 TON-RIGID W/AIR
Color Black
Finish Powder-Coat
Material Cast Steel
Pintle Hook Type Air Compensated

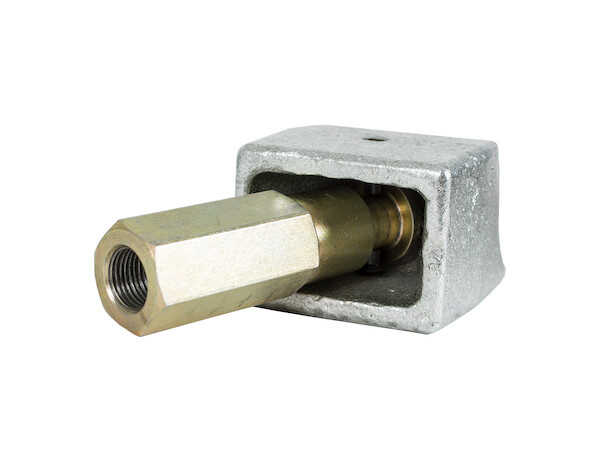

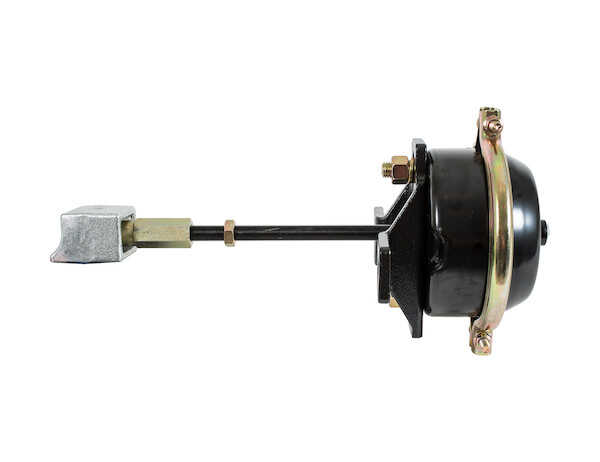

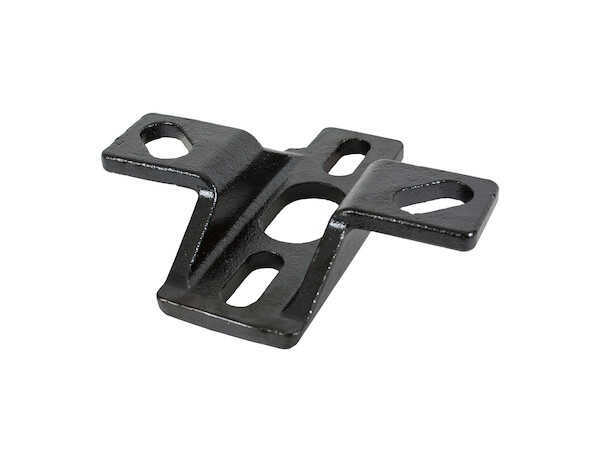

Includes Pintle Hook, Plunger, Brake Chamber & Bracket
Drawbar Eye Inner Dia. (In.) 2.38-3.00 "
M.G.T.W. (Lbs) 100,000 lb
M.V.L. (Lbs) 20,000 lb
Vertical Hole Spacing (In.) 2.125 Bottom / 2.375 Top "
Horizontal Hole Spacing (In.) 5.00 "
Mounting Hole Diameter (In.) 0.781 "
