Fisher XLS 8'-10' Blade Parts

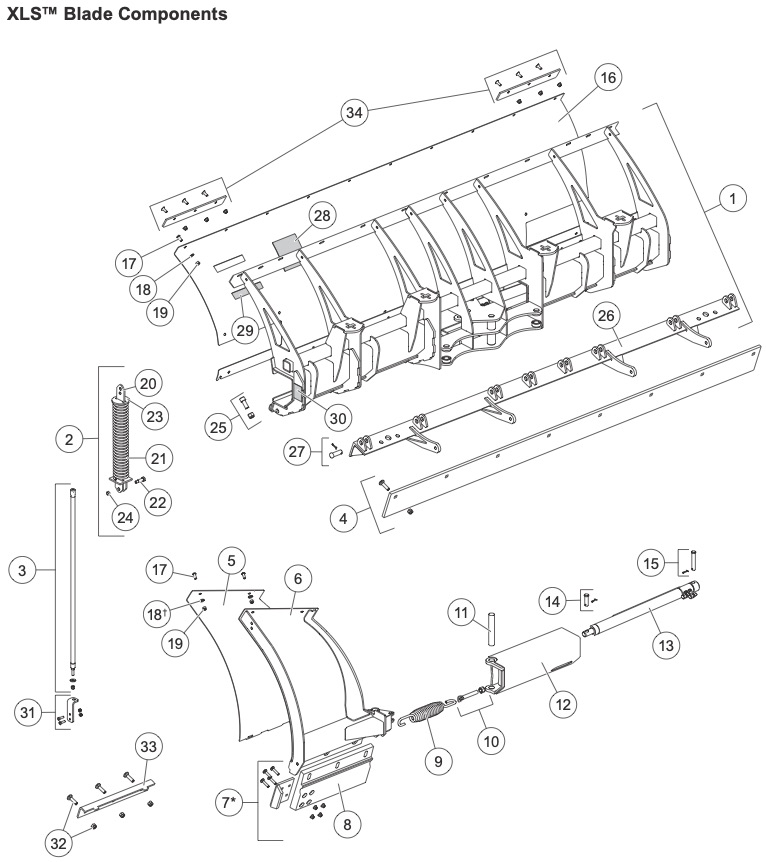

Fisher XLS Blade Diagram

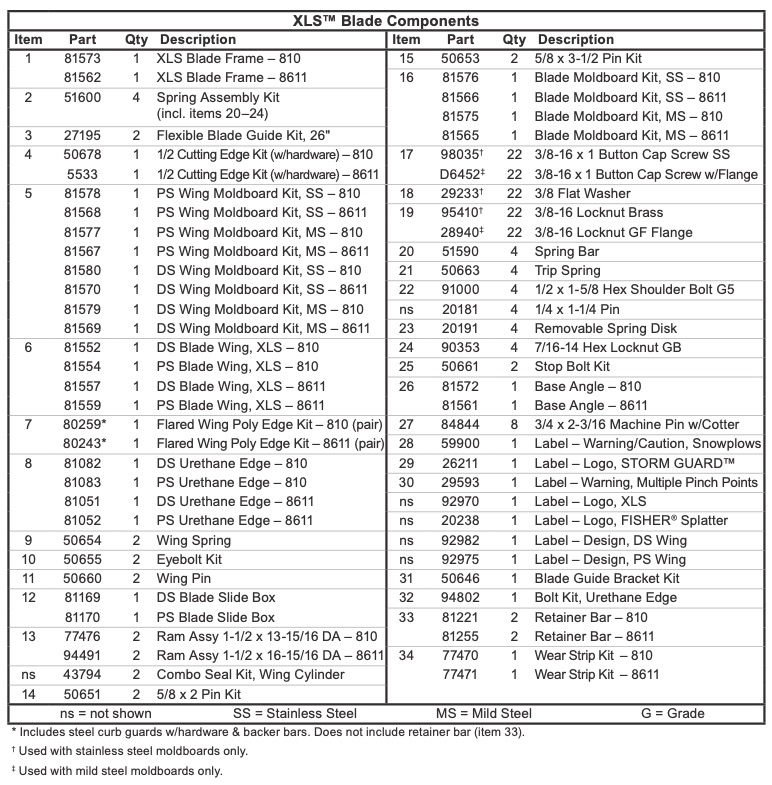

Fisher XLS Blade Diagram List

20181 Fisher
FISHER PIN - 1/4" X 1-1/4" 20181
$1.79 $2.24
SKU: 20181
FISHER REMOVABLE SPRING DISC 20191
FISHER REMOVABLE SPRING DISC 20191
$6.61 $8.26
SKU: 20191
FISHER DECAL 13-1/4 X 14-1/2 20238
FISHER DECAL 13-1/4 X 14-1/2 20238
$13.95 $17.43
SKU: 20238
  • Fisher Factory Original Part
Fisher 26211 Sticker
  • Fisher Factory Original Part
FISHER 24" COMMERCIAL BLADE GUIDE KIT 26530K
Average rating:
average rating 86%
FISHER 24" COMMERCIAL BLADE GUIDE KIT
$36.61 $45.76
SKU: 26530K
  • Bright Orange
  • Fisher Factory Original Part
Fisher 27195 Blade Guide
Average rating:
average rating 100%
FLEXIBLE BLADE GUIDE KIT - 26" 27195
$35.11 $43.89
SKU: 27195
  • 26in
  • Black w/ Yellow Tip
29535 Fisher
FISHER LABEL - XLS IDENTITY 29535
$10.95 $13.69
SKU: 29535
  • Fisher Factory Original Part
29639 Fisher
FISHER LABEL, XLS WINGS 29639
$29.22 $36.52
SKU: 29639
Fisher 50576 Label
Available as Special Order Only
  • Fisher Factory Original Part
Fisher 50604 Label
FISHER LABEL - 8' - 10' XLS 50604
$1.29 $1.61
SKU: 50604
  • Fisher Factory Original Part
Fisher 50626 Assembly Kit
Average rating:
average rating 100%
URETHANE EDGE ASSEMBLY KIT 50626
$178.88 $223.60
SKU: 50626
  • XLS / WIDE-OUT Snow Plow
  • Kit PS & DS (Does Not Include Retainer Bar)
  • Fisher/Western Factory Original Part
FISHER RUBBER DEFLECTOR KIT - 8' - 10' XLS 50628-1
  • 8' - 10' XLS Plow
  • Fisher Factory Original Part
50638 Fisher
Average rating:
average rating 100%
WEAR STRIP 50638
$9.67 $12.10
SKU: 50638
  • XLS/WIDE-OUT
  • Fisher/Western Factory Original Part
50639 Fisher
Average rating:
average rating 100%
WEAR STRIP - WING TOP 50639
$9.67 $12.10
SKU: 50639
  • XLS/WIDE-OUT
  • Fisher Factory Original Part
Fisher 50642 Stop Kit
BOLT KIT 50642
$7.70 $9.62
SKU: 50642
Backordered - Call For Availability
Fisher 50643 Bar
FISHER RETAINER BAR 50643
$9.01 $11.25
SKU: 50643
Fisher 50645 Edge
URETHANE EDGE 50645
$88.19 $110.24
SKU: 50645
  • XLS / WIDE-OUT
  • Fisher/Western Factory Original Part
50646 Fisher
FISHER BLADE GUIDE BRACKET KIT 50646
$11.95 $14.93
SKU: 50646
  • Fisher Factory Original Part
50647 Fisher
FISHER DS BLADE WING, XLS 50647
$401.37 $501.71
SKU: 50647
  • Fisher Factory Original Part
50648 Fisher
FISHER PS BLADE WING, XLS 50648
$401.37 $501.71
SKU: 50648
5192 Fisher
PIN KIT 5/8" X 2" 50651
$5.30 $6.64
SKU: 50651
  • XLS / WIDE-OUT
  • Fisher/Westrern Factory Original Part
Fisher 50653 Pin
PIN KIT 5/8" X 3" 50653
$6.15 $7.69
SKU: 50653
  • XLS / WIDE-OUT
  • Fisher/Western Factory Original Part
FISHER WING SPRING 50564
WING SPRING 50654
$42.08 $52.60
SKU: 50654
  • XLS / WIDE-OUT Snow Plow
  • Fisher/Western Factory Original Part
Fisher 50655 Eyebolt Kit
FISHER EYEBOLT KIT 50655
$7.62 $9.53
SKU: 50655
50656 Fisher
FISHER DS BLADE SLIDEBOX, XLS 50656
$200.25 $250.31
SKU: 50656
Available as Special Order Only
50657 Fisher
FISHER PS BLADE SLIDEBOX, XLS 50657
$200.41 $250.31
SKU: 50657
Available as Special Order Only
Fisher 50660 Pin
WING PIN 50660
$25.17 $31.46
SKU: 50660
  • XLS / WIDE-OUT Snow Plow
  • Fisher/Western Factory Original Part
50661 Fisher
Average rating:
average rating 100%
STOP BOLT KIT 50661
$6.65 $8.31
SKU: 50661
  • XLS / WIDE-OUT
  • Fisher/Western Factory Original Part
50663 Fisher
FISHER TRIP SPRING 50663
$41.08 $51.36
SKU: 50663
50665 Fisher
FISHER SPRING ASSEMBLY KIT 50665
$102.72 $128.40
SKU: 50665
Fisher 50678 Cutting Edge
Average rating:
average rating 100%
FISHER CUTTING EDGE KIT - 8' - 10' XLS, HT & HD2 1/2 INCH 50678
$136.45 $170.56
SKU: 50678
  • Fisher Factory Original Part
  • Includes Hardware
59900
WARNING/CAUTION LABEL 59900
$5.19
SKU: 59900
fisherImageSoon
Bolt HX 1/2 x 1 5/8
$1.12
SKU: 91000
