KLEINN AIR HORN KIT HK7

Product Details

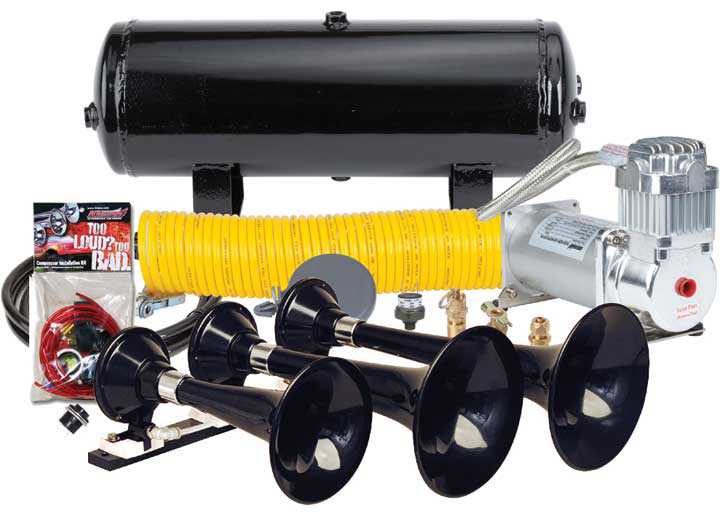

BLACK ABS WIDE-BELL TRIPLE TRAIN HORN. THREE TUNED TRUMPETS, 17.5IN, 14.5IN AND 11.5IN. THE FLAT-RACK DESIGN REQUIRES 40% LESS CLEARANCE THAN OUR 500 SERIES TRAIN HORNS. THE TRUMPETS CAN BE SEPARATED FROM THE MOUNTING BRACKETS FOR INSTALLATION IN VEHICLES THAT COULD NOT OTHERWISE FIT FULL SIZED TRAIN HORNS. THE KIT INCLUDES A FULL ONBOARD AIR SYSTEM WITH A 100% DUTY 150 PSI AIR COMPRESSOR, 3 GALLON TANK AND A TIRE INFLATION KIT.

Package Includes:

Triple train horn w/ solenoid

150 PSI air compressor

3 gallon air tank

Pressure switch, Drain valve, Safety Valve & Outlet Air Fitting

12 ft high pressure nylon air tubing

35' tire inflation coil hose & Horn button

Wiring/Installation Kit

Specifications

ConstructionHigh impact ABS

Tank Capacity 3 gallon

Horn Dimensions (in)18.25" x 18" x 7"

Pressure Switch 120 psi on, 150 psi off

Compressor Dimensions (in)9" x 4" x 7"

Duty Rating 100%

Tank Dimensions (in)20" x 6.5" x 9.25"

CFM @ 0 PSI 1.48

Output (dB) @ 100 PSI150.6

Compressor Amp Draw 18

Output (db) @ 150 psi153.3

Thermal Protection Yes

Max Pressure150 PSI

Shipping Weight 13/28 lbs
