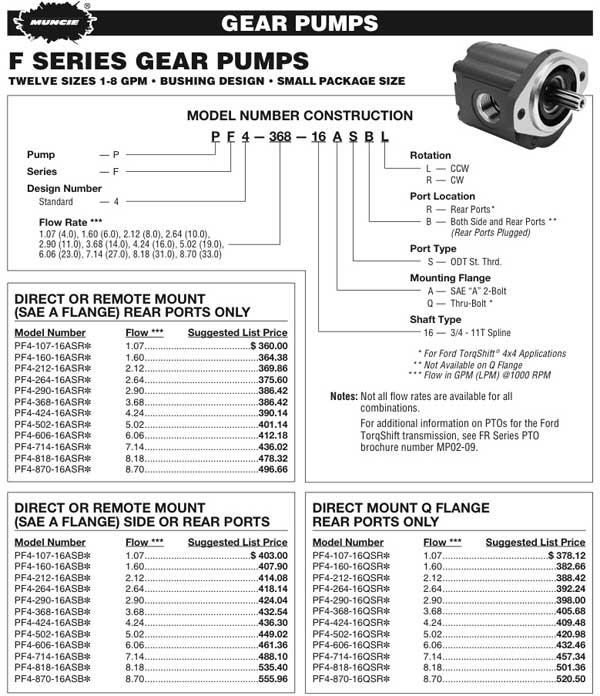

Muncie F Series Pump
The PF Series aluminum bodied, thru bore bushing style pumps are offered in a wide range of sizes. With its high pressure capabilities, the PF Series provides ultimate power in a small package.
1 2
-
MUNCIE DIRECT MOUNT Q FLANGE REAR PORTS ONLY PF4-424-16QSR_SKU: PF4-424-16QSR_
$513.24$299.94- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT OR REMOTE MOUNT (SAE A FLANGE) SIDE OR REAR PORTS PF4-502-16ASB_
SKU: PF4-502-16ASB_
$562.82$328.92- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT OR REMOTE MOUNT (SAE A FLANGE) REAR PORTS ONLY PF4-502-16ASR_
SKU: PF4-502-16ASR_
$502.80$293.84- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT MOUNT Q FLANGE REAR PORTS ONLY PF4-502-16QSR_
SKU: PF4-502-16QSR_
$527.65$308.36- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT OR REMOTE MOUNT PUMP (SAE A FLANGE) SIDE OR REAR PORTS PF4-606-16ASB_
SKU: PF4-606-16ASB_
$499.41$347.04- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT OR REMOTE MOUNT PUMP (SAE A FLANGE) REAR PORTS ONLY PF4-606-16ASR_
SKU: PF4-606-16ASR_
$446.18$356.94- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT MOUNT PUMP Q FLANGE REAR PORTS ONLY PF4-606-16QSR_
SKU: PF4-606-16QSR_
$468.13$374.50- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT OR REMOTE MOUNT PUMP (SAE A FLANGE) SIDE OR REAR PORTS PF4-714-16ASB_
SKU: PF4-714-16ASB_
$611.79$357.55- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT OR REMOTE MOUNT PUMP (SAE A FLANGE) REAR PORTS ONLY PF4-714-16ASR_
SKU: PF4-714-16ASR_
$546.50$319.39- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT MOUNT PUMP Q FLANGE REAR PORTS ONLY PF4-714-16QSR_
SKU: PF4-714-16QSR_
$573.22$334.99- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT OR REMOTE MOUNT PUMP (SAE A FLANGE) SIDE OR REAR PORTS PF4-818-16ASB_
SKU: PF4-818-16ASB_
$671.08$392.19- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT OR REMOTE MOUNT PUMP (SAE A FLANGE) REAR PORTS ONLY PF4-818-16ASR_
SKU: PF4-818-16ASR_
$599.53$350.37- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT MOUNT PUMP Q FLANGE REAR PORTS ONLY PF4-818-16QSR_
SKU: PF4-818-16QSR_
$628.40$367.25- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT OR REMOTE MOUNT PUMP (SAE A FLANGE) SIDE OR REAR PORTS PF4-870-16ASB_
SKU: PF4-870-16ASB_
$696.82$407.23- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT OR REMOTE MOUNT PUMP (SAE A FLANGE) REAR PORTS ONLY PF4-870-16ASR_
SKU: PF4-870-16ASR_
$622.48$363.78- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
-
MUNCIE DIRECT MOUNT PUMP Q FLANGE REAR PORTS ONLY PF4-870-16QSR_
SKU: PF4-870-16QSR_
$652.41$381.28- Porting: S.A.E. o-ring
- Maximum Operating Pressure: 3625 PSI
- Solid, one piece shaft
1 2
|
 |
