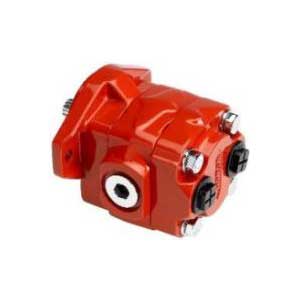

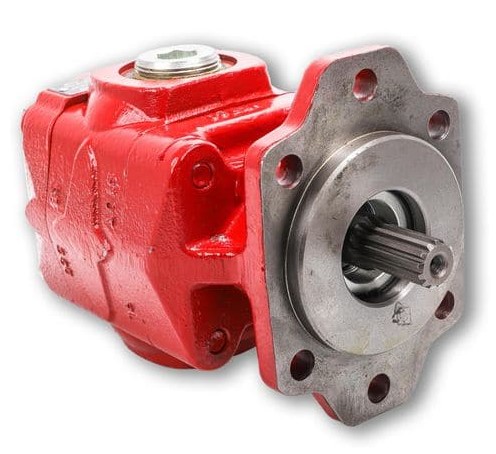

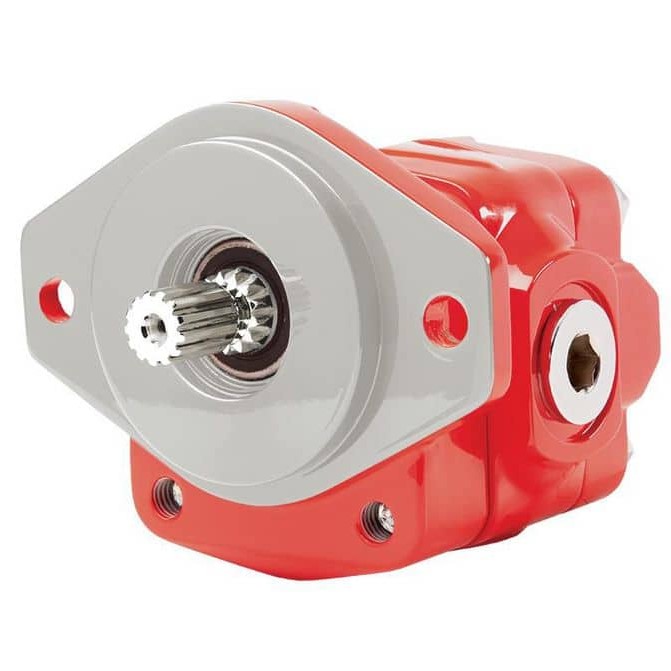

Muncie K Series Pump

The PK Series is designed to meet the application needs of either a pump or a motor. All cast iron construction with 4 ports and roller bearing design. The pumps bi-rotational feature helps reduce inventory requirements.

 Key Features / Benefits:

  • 7 pump sizes (4, 6, 8, 11, 13, 15, 17 GPM @ 1000 RPM: Fit a wide variety of applications
  • Pressure to 3000 PSI: High pressure capability
  • Speeds to 3600 RPM: Application versatility
  • All cast iron construction: Long life, capable of high PSI
  • Solid, one piece shafts: Stronger
  • Versatile 4-port design: Installation flexibility
  • Heavy duty roller bearings: Long product life
  • 4 shaft types & 4 mounting flanges (pump or motor): Optimum flexibility

Common Applications:

  • Snow and ice control
  • Utility line trucks
  • Refuse equipment
  • Low boys
  • Live floor trailers
  • Transfer trailers

Specifications:

  • Displacement (cu. in/rev): .98 - 3.94
  • Maximum Operating Pressure (PSI): 3000
  • Input Shaft Options: 4
  • S.A.E. Mounting Flange: A, B
  • Other Mounting Options: Remote pad
  • Cloverleaf mount Porting: N.P.T or S.A.E. (side and rear)

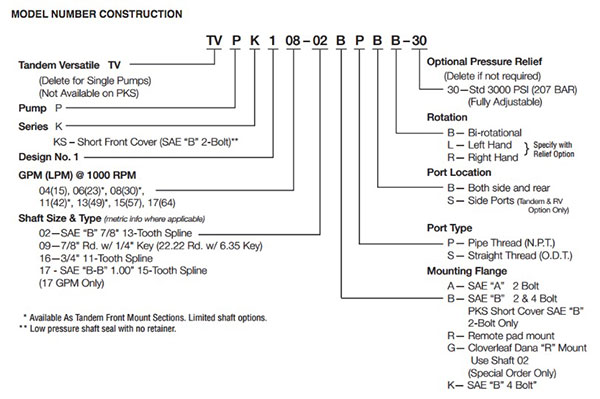

Muncie K Series Pump MODEL NUMBER CONSTRUCTION

MUNCIE POWER TAKE OFF
