Muncie MJ Series Motors

Muncie High Torque Motors For Work Truck Equipment

MJ Series Low Speed Motors

The MJ Series Low Speed High Torque Motor is available in 10 displacement sizes. The MJ Series motor is constructed using heavy-duty roller bearings designed for extra side load capacity. A heavy-duty drive link provides greater resistance to pressure and torque spikes.

KEY FEATURES
Shaft and mounting options to match the most common SAE standards.
Three-zone commutator valve for higher flows and higher pressure applications.
Heavy-duty, tapered roller bearings for extra side load capacity.
Heavy-duty drive link with larger pitch diameter than competitors for greater resistance to pressure and torque spikes.
Standard case drain with integral internal drain for extended shaft seal life.

MJ MOTOR MODEL NUMBER CONSTRUCTION

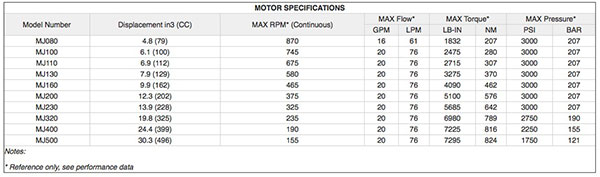

MJ MOTOR SPECIFICATIONS



Muncie MJ Series Motor
HYDRAULIC MOTOR, 79CC, 1" SHAFT
$372.78 $621.29
SKU: MJ080-01AFM-XXXRR
  • Max RPM: 870
  • Max GPM: 16
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 79CC, 1" SHAFT
$405.09 $675.16
SKU: MJ080-01AFX-XXXRR
  • Max RPM: 870
  • Max GPM: 16
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 79CC, 1-1/4 SHAFT
$372.78 $621.29
SKU: MJ080-07AFM-XXXRR
  • Max RPM: 870
  • Max GPM: 16
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 79CC, 1-1/4" SHAFT
$404.96 $674.94
SKU: MJ080-07AFX-XXXRR
  • Max RPM: 870
  • Max GPM: 16
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 100CC, 1" SHAFT
$412.67 $687.78
SKU: MJ100-01AFM-XXXRR
  • Port: 7⁄8"-14 O-Ring
  • Flange: 2-Bolt, SAE A
  • Shaft: 1" Straight (SAE B-B)
Muncie MJ Series Motor
HYDRAULIC MOTOR, 100CC, 1" SHAFT
$375.69 $626.16
SKU: MJ100-01AFX-XXXRR
  • Port: 1-1⁄16"-12 O-Ring
  • Flange: 2-Bolt, SAE A
  • Shaft: 1" Straight (SAE B-B)
Muncie MJ Series Motor
HYDRAULIC MOTOR, 100CC, 1-1/4 SHAFT
$412.67 $687.78
SKU: MJ100-07AFM-XXXRR
  • Port: 7⁄8"-14 O-Ring
  • Flange: 2-Bolt, SAE A
  • Shaft: 1-1⁄4" Straight (SAE C)
Muncie MJ Series Motor
HYDRAULIC MOTOR, 100CC, 1-1/4" SHAFT
$410.19 $683.64
SKU: MJ100-07AFX-XXXRR
  • Max RPM: 745
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 112CC, 1" SHAFT
$414.03 $690.04
SKU: MJ110-01AFM-XXXRR
  • Max RPM: 675
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 112CC, 1" SHAFT
$411.52 $685.86
SKU: MJ110-01AFX-XXXRR
  • Max RPM: 675
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 112CC, 1-1/4 SHAFT
$414.03 $690.04
SKU: MJ110-07AFM-XXXRR
  • Max RPM: 675
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 112CC, 1-1/4" SHAFT
$411.52 $685.86
SKU: MJ110-07AFX-XXXRR
  • Max RPM: 675
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 129CC, 1" SHAFT
$415.56 $692.60
SKU: MJ130-01AFM-XXXRR
  • Max RPM: 580
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 129CC, 1" SHAFT
$378.24 $630.40
SKU: MJ130-01AFX-XXXRR
  • Max RPM: 580
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 129CC, 1-1/4 SHAFT
$415.56 $692.60
SKU: MJ130-07AFM-XXXRR
  • Max RPM: 580
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 129CC, 1-1/4" SHAFT
$412.96 $688.26
SKU: MJ130-07AFX-XXXRR
  • Max RPM: 580
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 162CC, 1" SHAFT
$419.63 $699.38
SKU: MJ160-01AFM-XXXRR
  • Max RPM: 465
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 162CC, 1" SHAFT
$416.85 $694.76
SKU: MJ160-01AFX-XXXRR
  • Max RPM: 465
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 162CC, 1-1/4 SHAFT
$419.63 $699.38
SKU: MJ160-07AFM-XXXRR
  • Max RPM: 465
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 162CC, 1-1/4" SHAFT
$381.81 $636.34
SKU: MJ160-07AFX-XXXRR
  • Max RPM: 465
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 160CC, MAGNETO
$423.55 $705.90
SKU: MJ160-29ZFM-XXXRR
  • Max RPM: 465
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 202CC, 1" SHAFT
$425.85 $709.76
SKU: MJ200-01AFM-XXXRR
  • Max RPM: 375
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 202CC, 1" SHAFT
$422.80 $704.66
SKU: MJ200-01AFX-XXXRR
  • Max RPM: 375
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 202CC, 1-1/4" SHAFT
$422.80 $704.66
SKU: MJ200-07AFX-XXXRR
  • Max RPM: 375
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 200CC, MAGNETO
$393.62 $656.04
SKU: MJ200-29ZFM-XXXRR
  • Max RPM: 375
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 228CC, 1" SHAFT
$430.97 $718.28
SKU: MJ230-01AFX-XXXRR
  • Max RPM: 325
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 228CC, 1-1/4 SHAFT
$434.39 $723.98
SKU: MJ230-07AFM-XXXRR
  • Max RPM: 325
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 228CC, 1-1/4" SHAFT
$430.97 $718.28
SKU: MJ230-07AFX-XXXRR
  • Max RPM: 325
  • Max GPM: 20
  • Max PSI: 3,000
Muncie MJ Series Motor
HYDRAULIC MOTOR, 325CC, 1-1/4 SHAFT
$446.05 $743.42
SKU: MJ320-07AFM-XXXRR
  • Max RPM: 235
  • Max GPM: 20
  • Max PSI: 2750
Muncie MJ Series Motor
HYDRAULIC MOTOR, 325CC, 1-1/4" SHAFT
$442.15 $736.90
SKU: MJ320-07AFX-XXXRR
  • Max RPM: 235
  • Max GPM: 20
  • Max PSI: 2750
Muncie MJ Series Motor
HYDRAULIC MOTOR, 320CC, MAGNETO
$449.99 $749.98
SKU: MJ320-29ZFM-XXXRR
  • Max RPM: 235
  • Max GPM: 20
  • Max PSI: 2750
Muncie MJ Series Motor
HYDRAULIC MOTOR, 399CC, 1" SHAFT
$461.59 $769.32
SKU: MJ400-01AFM-XXXRR
  • Max RPM: 190
  • Max GPM: 20
  • Max PSI: 2250
Muncie MJ Series Motor
HYDRAULIC MOTOR, 399CC, 1-1/4 SHAFT
$422.78 $704.63
SKU: MJ40007AFMXXXRR
  • Max RPM: 190
  • Max GPM: 20
  • Max PSI: 2250
Muncie MJ Series Motor
HYDRAULIC MOTOR, 399CC, 1-1/4" SHAFT
$456.99 $761.64
SKU: MJ400-07AFX-XXXRR
  • Max RPM: 190
  • Max GPM: 20
  • Max PSI: 2250
Muncie MJ Series Motor
HYDRAULIC MOTOR, 496CC, 1" SHAFT
$471.03 $785.04
SKU: MJ500-01AFX-XXXRR
  • Max RPM: 155
  • Max GPM: 20
  • Max PSI: 1750
Muncie MJ Series Motor
HYDRAULIC MOTOR, 496CC, 1-1/4 SHAFT
$521.72 $869.54
SKU: MJ500-07AFM-XXXRR
  • Max RPM: 155
  • Max GPM: 20
  • Max PSI: 1750
Muncie MJ Series Motor
HYDRAULIC MOTOR, 500CC, MAGNETO
$525.68 $876.14
SKU: MJ500-29ZFM-XXXRR
  • Max RPM: 155
  • Max GPM: 20
  • Max PSI: 1750
