Ramsey Planetary Electric Winch Parts

Ramsey Winch Patriot 6000 Parts

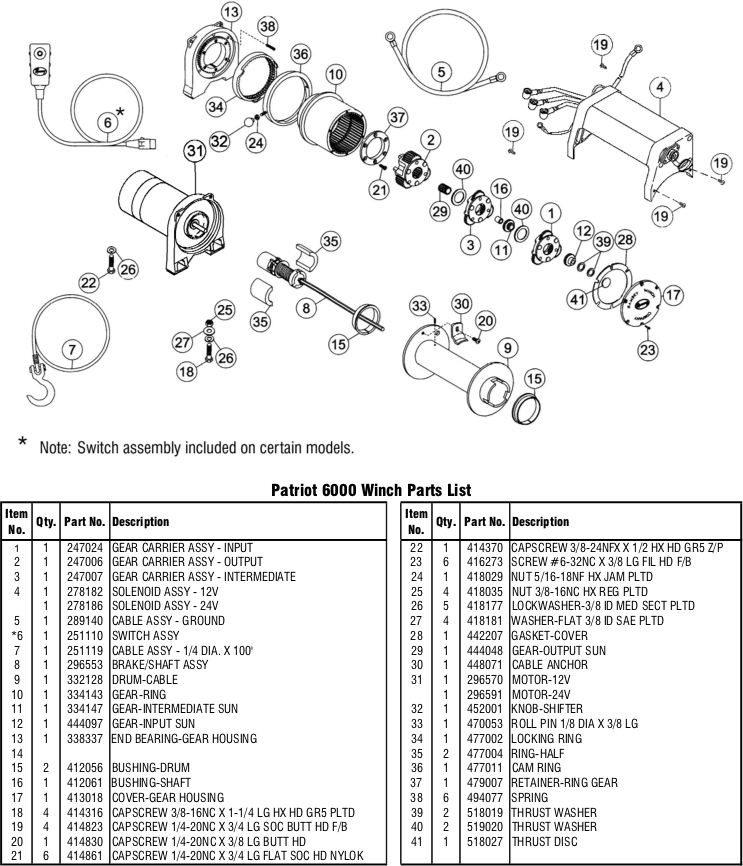

Ramsey Winch Patriot 6000 Parts DiagramRamsey Winch Patriot 6000 Solenoid Parts Diagram List
Tap or Click Images to Zoom
CONNECTOR - FEMALE
CONNECTOR - FEMALE
$27.88 $34.00
SKU 430022
Ramsey Winch Parts
GEAR CARRIER ASSEMBLY-OUTPUT, DC PLANETARY
$337.02 $411.00
SKU 247006
Ramsey Winch Parts
INPUT GEAR CARRIER ASSEMBLY
$112.34 $137.00
SKU 247024
BATTERY WIRE ASSY
BATTERY WIRE ASSY
$60.07 $73.25
SKU 289015
BRAKE ASSY PRO+6/8, 4.8HP MOTOR
BRAKE ASSY PRO+6/8, 4.8HP MOTOR
$90.20 $110.00
SKU 296553
Ramsey Winch Parts
MOTOR-END BRG, 4.8HP, W/GROUND
$697.82 $851.00
SKU 296570
Ramsey Winch Parts
SOLENOID MTG END CAP LH
$101.68 $124.00
SKU 316103
CAP-END, RH, SOLENOID MTG
CAP-END, RH, SOLENOID MTG
$79.75 $97.25
SKU 316101
CABLE DRUM
CABLE DRUM
$311.60 $380.00
SKU 332128
RING GEAR
RING GEAR
$216.48 $264.00
SKU 334143
INTERM GEAR / SUN,H/T #682061, REP-8000
INTERM GEAR / SUN,H/T #682061, REP-8000
$16.20 $19.75
SKU 334147
DRUM BUSHING
DRUM BUSHING
$6.77 $8.25
SKU 412056
SHAFT BUSHING
SHAFT BUSHING
$5.54 $6.75
SKU 412061
GEAR HOUSING COVER
GEAR HOUSING COVER
$16.20 $19.75
SKU 413018
Ramsey Winch
SOLENOID WIRE COVER, PRO PLUS SERIES # 16049D
$11.48 $14.00
SKU 413078
CAPSCREW 3/8-16NC X 1 1/4
CAPSCREW 3/8-16NC X 1 1/4
$1.23 $1.50
SKU 414316
BOLT 1/4-20NC X 3/4LG
BOLT 1/4-20NC X 3/4LG
$1.23 $1.50
SKU 414823
CAPSCREW 1/4-20NC X 3/8
CAPSCREW 1/4-20NC X 3/8
$1.23 $1.50
SKU 414830
BOLT 1/4 X 20NC X 3/4 NY-LOK
BOLT 1/4 X 20NC X 3/4 NY-LOK
$2.26 $2.75
SKU 414861
CAPSCREW-5/16-18NC X 1 1/2
CAPSCREW-5/16-18NC X 1 1/2
$2.26 $2.75
SKU 414880
SCREW #8-32NC X 3/8
SCREW #8-32NC X 3/8
$1.23 $1.50
SKU 416207
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
$1.23 $1.50
SKU 416227
SCREW ASM-#6-32NC X 3/8
SCREW ASM-#6-32NC X 3/8
$2.26 $2.75
SKU 416273
NUT 5/16-24NF HEX JAM
NUT 5/16-24NF HEX JAM
$2.26 $2.75
SKU 418029
NUT-3/8-16NC HEX REG ZINC PLATED
NUT-3/8-16NC HEX REG ZINC PLATED
$1.23 $1.50
SKU 418035
LOCKWASHER 3/8
LOCKWASHER 3/8
$1.23 $1.50
SKU 418177
WASHER 3/8 ID
WASHER 3/8 ID
$3.00 $3.75
SKU 418181
STRAP-COPPER, PRO PLUS
STRAP-COPPER, PRO PLUS
$10.25 $12.50
SKU 440259
STRAP-COPPER,PRO PLUS
STRAP-COPPER,PRO PLUS
$3.49 $4.25
SKU 440260
SOLENOID-12V
SOLENOID-12V
$36.08 $44.00
SKU 440262
SOLENOID-24V
SOLENOID-24V
$36.90 $45.00
SKU 440265
ASSY-WIRE, GROUND
ASSY-WIRE, GROUND
$19.68 $24.00
SKU 440276
GASKET-GH COVER
Average rating:
average rating 100%
GASKET-GH COVER
$2.26 $2.75
SKU 442207
OUTPUT GEAR
OUTPUT GEAR
$28.70 $35.00
SKU 444048
INPUT GEAR
INPUT GEAR
$11.48 $14.00
SKU 444097
CABLE ANCHOR-10 GA
CABLE ANCHOR-10 GA
$20.09 $24.50
SKU 448071
KNOB-LEVER GRAY
KNOB-LEVER GRAY
$12.92 $15.75
SKU 452001
ROLL PIN-1/8 DIA X 3/8 LG
ROLL PIN-1/8 DIA X 3/8 LG
$1.23 $1.50
SKU 470053
LOCKING RING - RING GEAR
Average rating:
average rating 100%
LOCKING RING - RING GEAR
$42.85 $52.25
SKU 477002
HALF RING, INPUT FRICTION, W/REP-8000
HALF RING, INPUT FRICTION, W/REP-8000
$8.61 $10.50
SKU 477004
CAM RING
CAM RING
$46.33 $56.50
SKU 477011
RETAINER RING GEAR
RETAINER RING GEAR
$11.48 $14.00
SKU 479007
COVER FEMALE RECEPTACLE
COVER FEMALE RECEPTACLE
$6.77 $8.25
SKU 482029
RING GEAR SPRING
RING GEAR SPRING
$2.26 $2.75
SKU 494077
Ramsey Winch Parts
THRUST WASHER-.50 ID,FIBER GLASS,PL
$2.26 $2.75
SKU 518019
Ramsey Winch Parts
THRUST DISC-.035X.922DIA/ALL PLANET
$2.26 $2.75
SKU 518027
