Ramsey Winch Patriot 8000 Parts

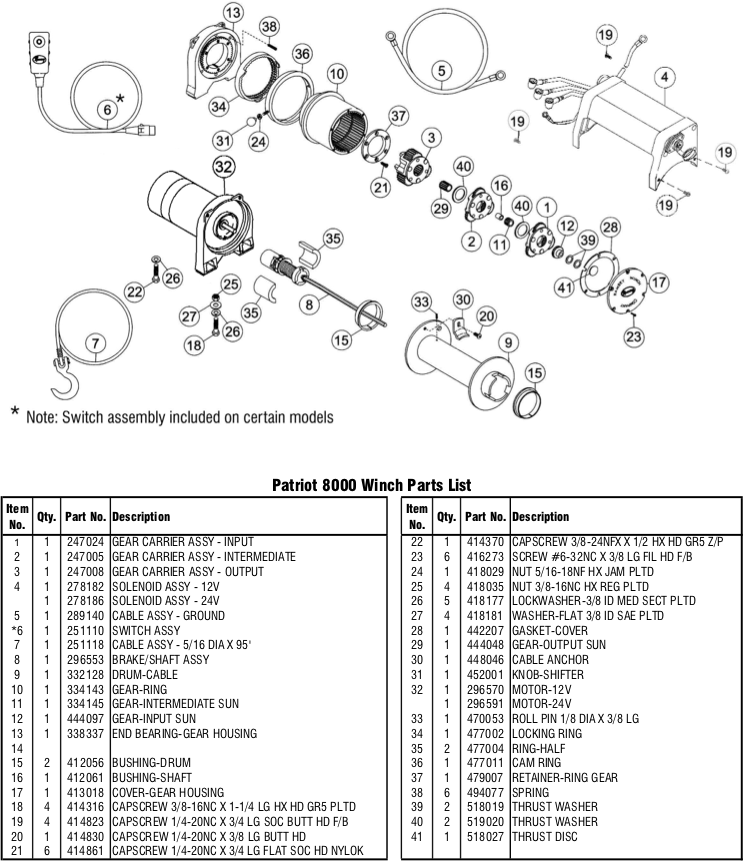

Ramsey Winch Patriot 8000 Parts DiagramRamsey Winch Patriot 8000 Parts List
Tap or Click Images to Zoom
ZequipNoImage
CONNECTOR - FEMALE
$27.88 $34.00
SKU: 430022
Ramsey Winch Parts
GEAR CARRIER ASSEMBLY-INTERMED/DC PLANE
$164.00 $200.00
SKU: 247005
Ramsey Winch Parts
GEAR CARRIER ASSEMBLY-OUTPUT, REP-8000
$309.14 $377.00
SKU: 247008
Ramsey Winch Parts
INPUT GEAR CARRIER ASSEMBLY
$112.34 $137.00
SKU: 247024
ramsey-no-pic
BATTERY WIRE ASSY
$60.07 $73.25
SKU: 289015
ramsey-no-pic
BRAKE ASSY PRO+6/8, 4.8HP MOTOR
$90.20 $110.00
SKU: 296553
Ramsey Winch Parts
MOTOR-END BRG, 4.8HP, W/GROUND
$697.82 $851.00
SKU: 296570
Ramsey Winch Parts
SOLENOID MTG END CAP LH
$101.68 $124.00
SKU: 316103
ramsey-no-pic
CAP-END, RH, SOLENOID MTG
$79.75 $97.25
SKU: 316101
ramsey-no-pic
CABLE DRUM
$311.60 $380.00
SKU: 332128
ramsey-no-pic
RING GEAR
$216.48 $264.00
SKU: 334143
ramsey-no-pic
GEAR-INTERM/SUN,H/T#682051/REP-6000
$12.92 $15.75
SKU: 334145
ramsey-no-pic
DRUM BUSHING
$6.77 $8.25
SKU: 412056
ramsey-no-pic
SHAFT BUSHING
$5.54 $6.75
SKU: 412061
ramsey-no-pic
GEAR HOUSING COVER
$16.20 $19.75
SKU: 413018
ramsey-no-pic
CAPSCREW 3/8-16NC X 1 1/4
$1.23 $1.50
SKU: 414316
ramsey-no-pic
BOLT 1/4-20NC X 3/4LG
$1.23 $1.50
SKU: 414823
ramsey-no-pic
CAPSCREW 1/4-20NC X 3/8
$1.23 $1.50
SKU: 414830
ramsey-no-pic
BOLT 1/4 X 20NC X 3/4 NY-LOK
$2.26 $2.75
SKU: 414861
ramsey-no-pic
CAPSCREW-5/16-18NC X 1 1/2
$2.26 $2.75
SKU: 414880
ramsey-no-pic
SCREW #8-32NC X 3/8
$1.23 $1.50
SKU: 416207
ramsey-no-pic
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
$1.23 $1.50
SKU: 416227
ramsey-no-pic
SCREW ASM-#6-32NC X 3/8
$2.26 $2.75
SKU: 416273
ramsey-no-pic
NUT 5/16-24NF HEX JAM
$2.26 $2.75
SKU: 418029
ramsey-no-pic
NUT-3/8-16NC HEX REG ZINC PLATED
$1.23 $1.50
SKU: 418035
ramsey-no-pic
LOCKWASHER 3/8
$1.23 $1.50
SKU: 418177
ramsey-no-pic
WASHER 3/8 ID
$1.23 $1.50
SKU: 418181
ramsey-no-pic
STRAP-COPPER, PRO PLUS
$10.25 $12.50
SKU: 440259
ramsey-no-pic
STRAP-COPPER,PRO PLUS
$3.49 $4.25
SKU: 440260
ramsey-no-pic
SOLENOID-12V
$36.08 $44.00
SKU: 440262
ramsey-no-pic
SOLENOID-24V
$36.90 $45.00
SKU: 440265
ramsey-no-pic
ASSY-WIRE, GROUND
$19.68 $24.00
SKU: 440276
ramsey-no-pic
GASKET-GH COVER
$2.26 $2.75
SKU: 442207
ramsey-no-pic
OUTPUT GEAR
$28.70 $35.00
SKU: 444048
ramsey-no-pic
INPUT GEAR
$11.48 $14.00
SKU: 444097
ramsey-no-pic
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
$10.25 $12.50
SKU: 448046
ramsey-no-pic
KNOB-LEVER GRAY
$12.92 $15.75
SKU: 452001
ramsey-no-pic
ROLL PIN-1/8 DIA X 3/8 LG
$1.23 $1.50
SKU: 470053
ramsey-no-pic
LOCKING RING - RING GEAR
$42.85 $52.25
SKU: 477002
ramsey-no-pic
HALF RING, INPUT FRICTION, W/REP-8000
$8.61 $10.50
SKU: 477004
ramsey-no-pic
CAM RING
$46.33 $56.50
SKU: 477011
ramsey-no-pic
RETAINER RING GEAR
$11.48 $14.00
SKU: 479007
ramsey-no-pic
COVER FEMALE RECEPTACLE
$6.77 $8.25
SKU: 482029
ramsey-no-pic
RING GEAR SPRING
$2.26 $2.75
SKU: 494077
Ramsey Winch Parts
THRUST WASHER-.50 ID,FIBER GLASS,PL
$2.26 $2.75
SKU: 518019
Ramsey Winch Parts
THRUST DISC-.035X.922DIA/ALL PLANET
$2.26 $2.75
SKU: 518027
