Ramsey Winch TR 5000 Parts

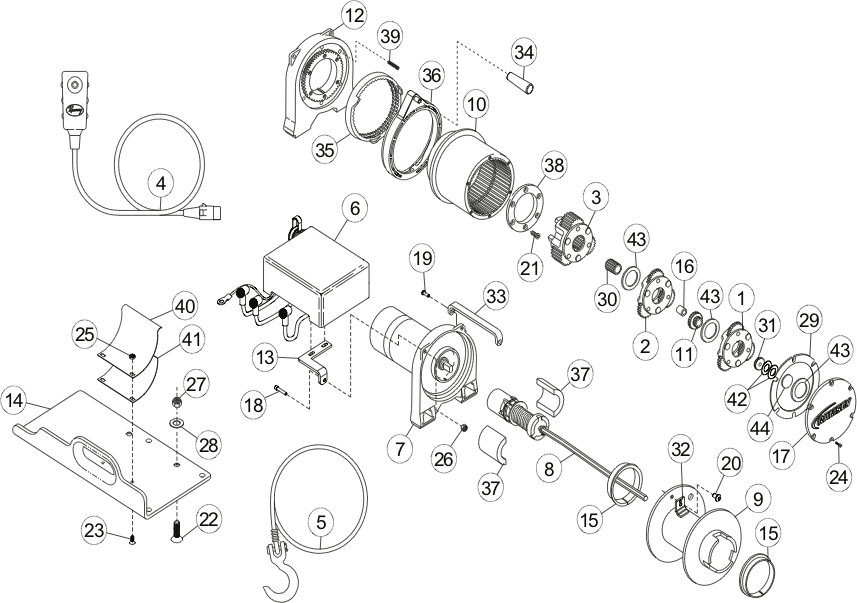

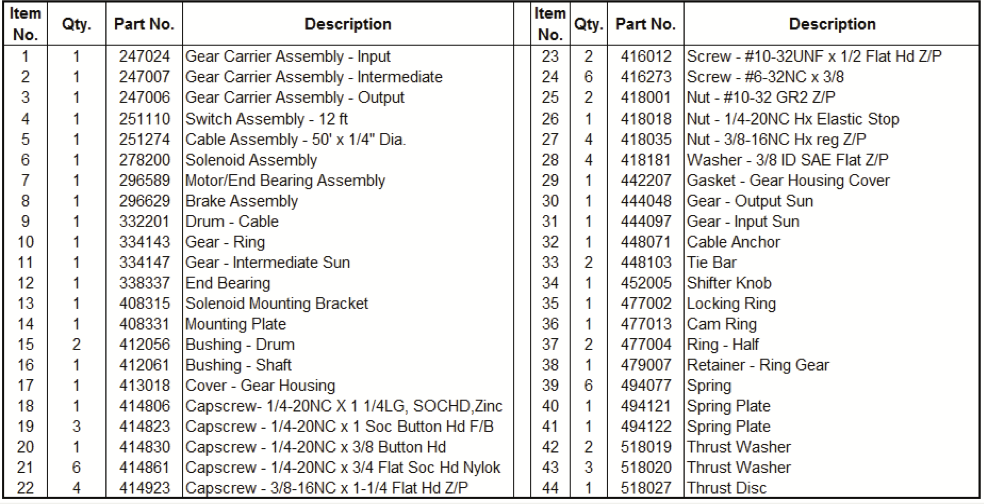

Ramsey Winch TR 5000 Parts Diagram Ramsey Winch TR 5000 Parts List


Ramsey Winch TR 5000 Parts Solenoid

Ramsey Winch Parts
GEAR CARRIER ASSEMBLY-OUTPUT, DC PLANETARY
$282.98 $332.92
SKU: 247006
Ramsey Winch Parts
INPUT GEAR CARRIER ASSEMBLY
$94.32 $110.97
SKU: 247024
ramsey-no-pic
BATTERY WIRE ASSY
$50.60 $59.52
SKU: 289015
ramsey-no-pic
WIRE ASSY-EXT,FEM CONN TO SOL,PLANE
$6.87 $8.08
SKU: 289091
ramsey-no-pic
WIRE ASSY-SOLEN,#6GA BLACK,3 1/2 LG
$8.69 $10.23
SKU: 289092
Ramsey Winch Parts
MOTOR, REP-8000
$338.84 $398.64
SKU: 296589
ramsey-no-pic
RING GEAR
$181.33 $213.33
SKU: 334143
ramsey-no-pic
GEAR-INTERM/SUN,H/T#682061,REP-8000
$13.51 $15.89
SKU: 334147
Ramsey Winch Parts
STRAP-COPPER
$9.62 $11.32
SKU: 364002
ramsey-no-pic
DRUM BUSHING
$5.72 $6.73
SKU: 412056
ramsey-no-pic
SHAFT BUSHING
$4.81 $5.65
SKU: 412061
ramsey-no-pic
GEAR HOUSING COVER
$13.51 $15.89
SKU: 413018
ramsey-no-pic
SOLENOID COVER REP8000
$10.75 $12.65
SKU: 413024
ramsey-no-pic
BOLT 1/4-20NC X 3/4LG
$0.97 $1.14
SKU: 414823
ramsey-no-pic
CAPSCREW 1/4-20NC X 3/8
$0.97 $1.14
SKU: 414830
ramsey-no-pic
BOLT 1/4 X 20NC X 3/4 NY-LOK
$1.94 $2.29
SKU: 414861
ramsey-no-pic
SCREW-#10-24NC X 1/2LG
$1.94 $2.29
SKU: 416216
ramsey-no-pic
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
$0.97 $1.14
SKU: 416227
ramsey-no-pic
SCREW ASM-#6-32NC X 3/8
$1.94 $2.29
SKU: 416273
ramsey-no-pic
NUT-HEX #10-24NC REG
$1.94 $2.29
SKU: 418004
ramsey-no-pic
NUT 1/4-20NC
$0.97 $1.14
SKU: 418014
ramsey-no-pic
NUT 1/4-20NC
$0.97 $1.14
SKU: 418018
ramsey-no-pic
NUT-3/8-16NC HEX REG ZINC PLATED
$0.97 $1.14
SKU: 418035
ramsey-no-pic
LOCKWASHER 1/4
$0.97 $1.14
SKU: 418149
ramsey-no-pic
WASHER 3/8 ID
$0.97 $1.14
SKU: 418181
ramsey-no-pic
NUT-#10-24NC, NUTSERT
$0.97 $1.14
SKU: 418411
ramsey-no-pic
SPACER SOLENIOD BRACKET
$2.98 $3.50
SKU: 418514
ramsey-no-pic
Average rating:
average rating 100%
CONNECTOR-FEMALE RECEPTACLE MOLDED
$38.93 $45.79
SKU: 430013
ramsey-no-pic
TERMINAL TAB-MALE
$0.97 $1.14
SKU: 440071
ramsey-no-pic
SOLENOID-12V
$53.35 $62.76
SKU: 440110
ramsey-no-pic
STRAP
$3.89 $4.58
SKU: 440111
ramsey-no-pic
GASKET-GH COVER
$1.94 $2.29
SKU: 442207
ramsey-no-pic
OUTPUT GEAR
$24.26 $28.55
SKU: 444048
ramsey-no-pic
INPUT GEAR
$9.62 $11.32
SKU: 444097
ramsey-no-pic
CABLE ANCHOR-10 GA
$4.81 $5.65
SKU: 448071
ramsey-no-pic
LOCKING RING-RING GEAR
$35.95 $42.29
SKU: 477002
ramsey-no-pic
RING-HALF,INPUT FRICTION,W/REP-8000
$3.89 $4.58
SKU: 477004
ramsey-no-pic
RETAINER-RING GEAR,INJ MOLD,DC PLAN
$9.62 $11.32
SKU: 479007
ramsey-no-pic
COVER FEMALE RECEPTACLE
$5.72 $6.73
SKU: 482029
ramsey-no-pic
RING GEAR SPRING
$1.94 $2.29
SKU: 494077
Ramsey Winch Parts
THRUST WASHER-.50 ID,FIBER GLASS,PL
$1.94 $2.29
SKU: 518019
Ramsey Winch Parts
THRUST WASHER-1.39 ID,PLAS,DC PLANE
$2.98 $3.50
SKU: 518020
Ramsey Winch Parts
THRUST DISC-.035X.922DIA/ALL PLANET
$1.94 $2.29
SKU: 518027
