Ramsey Heavy Duty Electric Winch Parts

Ramsey Winch Electric DC-200 Series Parts (DC/Y 200/246)

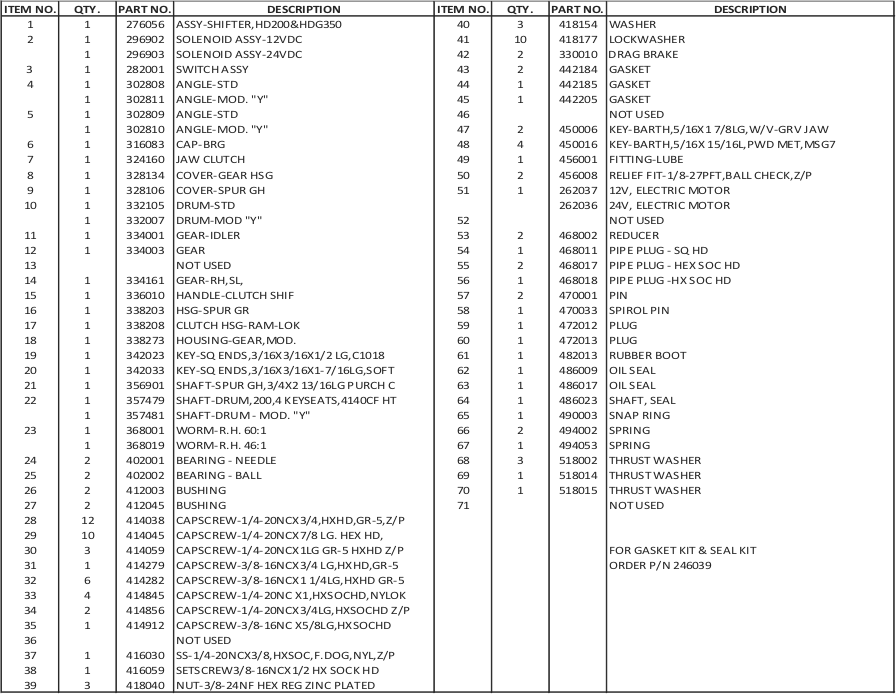

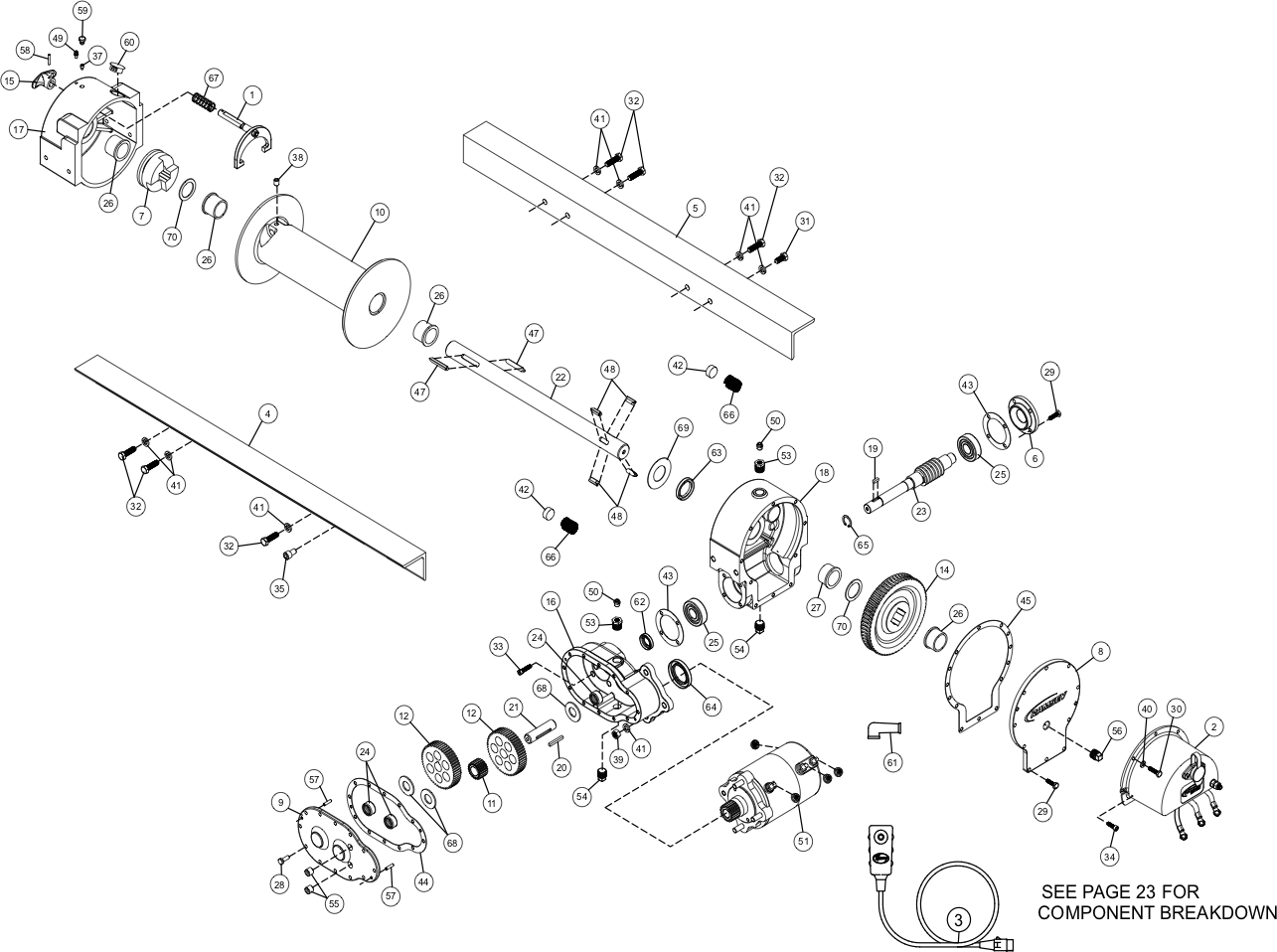

Ramsey Winch Electric DC-200 Series Parts DiagramRamsey Winch Electric DC-200 Series Parts List
Tap or Click Images to Zoom

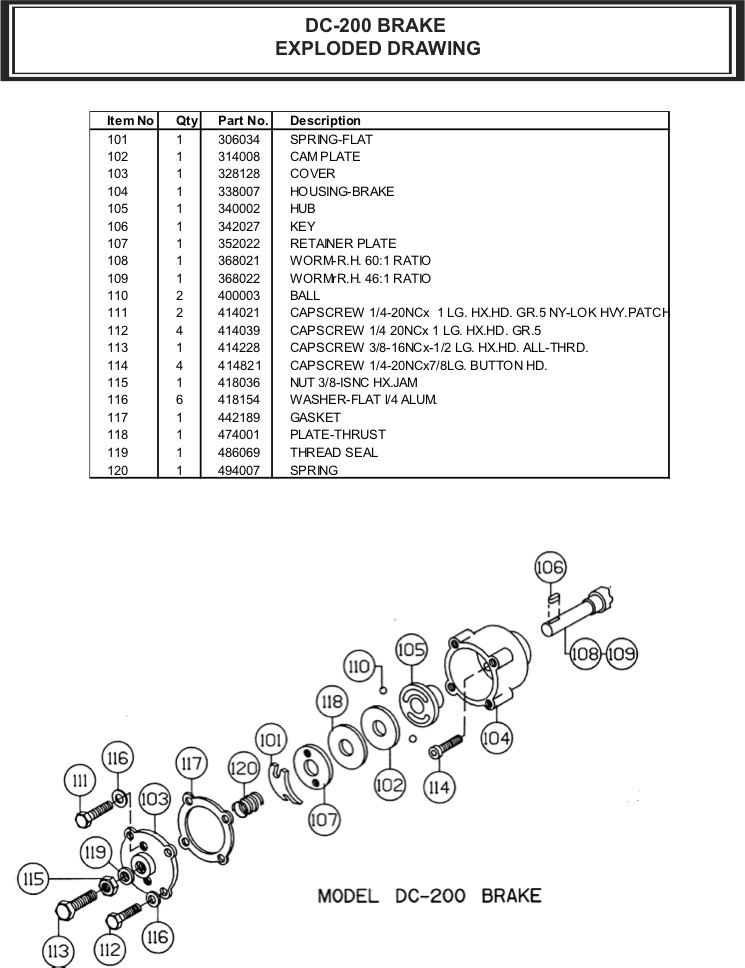

Ramsey Winch Electric DC-200 Series Brake Parts

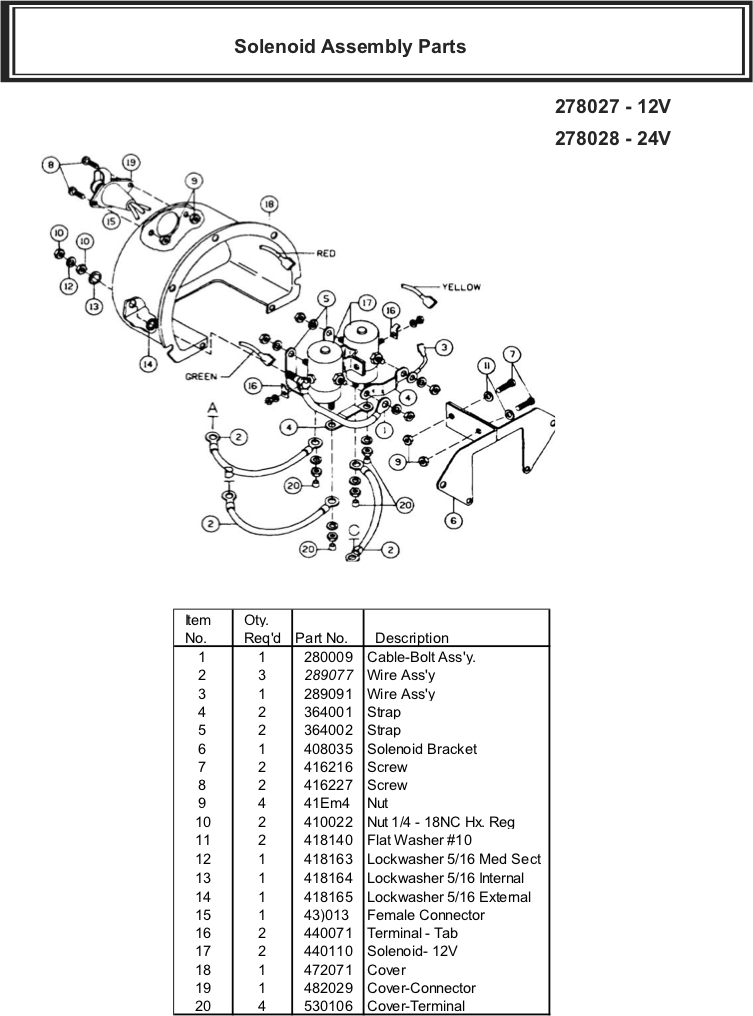

Ramsey Winch Electric DC-200 Series Solenoid Parts Diagram

Ramsey DC200 Seal Kit
Ramsey DC200 Seal Kit
$71.55 $87.25
SKU 246007
GASKET-GH COVER 200 CORK,N-40
GASKET-GH COVER 200 CORK,N-40
$5.54 $6.75
SKU 442188
RAMSEY 12V, ELECTRIC MOTOR
RAMSEY 12V, ELECTRIC MOTOR
$379.75 $505.00
SKU 262037
Rod & Fork 276056
Rod & Fork 276056
$67.04 $81.75
SKU 276056
Ramsey Drag Brake
Average rating:
average rating 80%
Ramsey Drag Brake
$16.20 $19.75
SKU 330010
no image available
Average rating:
average rating 60%
BALL BEARING
$21.94 $26.75
SKU 402002
no image available
GASKET
$2.26 $2.75
SKU 442184
no image available
OIL SEAL
$12.92 $15.75
SKU 486009
Out Of Stock - Call For Availability
no image available
GASKET
$6.77 $8.25
SKU 442205
Ramsey Winch Parts
Ramsey Key Barth
$4.72 $5.75
SKU 450016
no image available
END PLATE COVER
$119.72 $146.00
SKU 328134
no image available
Capscrew 1/4-20unc x 3/4 LG HX HD GR5 Z/P
$2.26 $2.75
SKU 414038
no image available
PIPE PLUG
$2.26 $2.75
SKU 468011
Ramsey HD200R Brass Gear 334161
Brass Gear 334161
$349.32 $426.00
SKU 334161
no image available
CLUTCH JAW
$127.10 $155.00
SKU 324160
no image available
Housing Gear Model 200 338273
$287.82 $351.00
SKU 338273
no image available
SEAL
$19.68 $24.00
SKU 486017
360347,
BUSHING
$27.88 $34.00
SKU 412003
Out Of Stock - Call For Availability
BUSHING
BUSHING
$14.97 $18.25
SKU 412045
CLUTCH HOUSING RAM-LOK ALUM 338208
CLUTCH HOUSING RAM-LOK ALUM 338208
$282.90 $345.00
SKU 338208
RAMSEY HANDLE 336010
RAMSEY HANDLE 336010
$24.40 $29.75
SKU 336010
RAMSEY KEY 342027
RAMSEY KEY 342027
$14.97 $18.25
SKU 342027
RAMSEY PIN - SPIROL 470033
RAMSEY PIN - SPIROL 470033
$2.26 $2.75
SKU 470033
RAMSEY SPRING 494002
Average rating:
average rating 100%
RAMSEY SPRING 494002
$6.77 $8.25
SKU 494002
PLASTIC PLUG
PLASTIC PLUG
$2.26 $2.75
SKU 472013
RUBBER PLUG
RUBBER PLUG
$3.49 $4.25
SKU 472012
Key - Barth (Ramsey) 450006
Key - Barth
$23.17 $28.25
SKU 450006
Ramsey Winch Parts
THRUST WASHER
$24.40 $29.75
SKU 518014
BALL POPPET 400003
BALL POPPET 400003
$3.49 $4.25
SKU 400003
ANGLE-1/4X2.5X2.5X36LG,DC&H-200
ANGLE-1/4X2.5X2.5X36LG,DC&H-200
$126.28 $154.00
SKU 302809
ELECTRIC MOTOR ASSEMBLY - 24V, RE-12000, W/ISOLATED GROUND
ELECTRIC MOTOR ASSEMBLY - 24V, RE-12000, W/ISOLATED GROUND
$528.90 $645.00
SKU 262036
CABLE & BOLT ASSY-W/ALL 12 & 24V SOLENOID
CABLE & BOLT ASSY-W/ALL 12 & 24V SOLENOID
$21.94 $26.75
SKU 280009
SWITCH ASSEMBLY-12FT LG
SWITCH ASSEMBLY-12FT LG
$89.38 $109.00
SKU 282001
WIRE ASSY - 4.5LG, #6GA 2-TERM
WIRE ASSY - 4.5LG, #6GA 2-TERM
$11.48 $14.00
SKU 289077
WIRE ASSY-EXT,FEM CONN TO SOL,PLANE
WIRE ASSY-EXT,FEM CONN TO SOL,PLANE
$8.20 $10.00
SKU 289091
SOLENOID ASSY-12VDC,S-SUB-UP,DC-200
SOLENOID ASSY-12VDC,S-SUB-UP,DC-200
$323.08 $394.00
SKU 296902
ANGLE 1/4X2.5X2.5X36 LG, DC-200
ANGLE 1/4X2.5X2.5X36 LG, DC-200
$85.28 $104.00
SKU 302808
ANGLE-1/4X2.5X2.5X36LG,DCY-/HY-200
ANGLE-1/4X2.5X2.5X36LG,DCY-/HY-200
$98.40 $120.00
SKU 302810
SPRING-FLAT,BRK,G200,G7,FM FIN.
SPRING-FLAT,BRK,G200,G7,FM FIN.
$40.80 $49.75
SKU 306034
CAM PLATE-WM BRK,7/200/R-8B,8620 HR
CAM PLATE-WM BRK,7/200/R-8B,8620 HR
$281.26 $343.00
SKU 314008
BEARING CAP
BEARING CAP
$33.42 $40.75
SKU 316083
Ramsey Winch Parts
COVER-SPUR GH,DC8 & 200
$108.24 $132.00
SKU 328106
COVER-WM BRK,G7/G200,.321 BOSS,TENZ
COVER-WM BRK,G7/G200,.321 BOSS,TENZ
$151.70 $185.00
SKU 328128
DRUM-MODEL Y-200, MFG FOR 234005
DRUM-MODEL Y-200, MFG FOR 234005
$712.58 $869.00
SKU 332007
IDLER GEAR
IDLER GEAR
$124.64 $152.00
SKU 334001
GEAR-INTER & DRIVE, DC8 & DC200
GEAR-INTER & DRIVE, DC8 & DC200
$150.88 $184.00
SKU 334003
BRAKE HOUSING-MOD 200 TENZ CASTING
BRAKE HOUSING-MOD 200 TENZ CASTING
$291.92 $356.00
SKU 338007
HOUSING -SPUR GEAR DC7-8-200
HOUSING -SPUR GEAR DC7-8-200
$457.56 $558.00
SKU 338203
HUB-BRAKE, MODEL 200, FINISHED
HUB-BRAKE, MODEL 200, FINISHED
$36.90 $45.00
SKU 340002
KEY-SQ ENDS,3/16 X 3/16 X 1/2
KEY-SQ ENDS,3/16 X 3/16 X 1/2
$6.77 $8.25
SKU 342023
KEY-SQ ENDS 3/16 X 3/16 X 1-7/16LG
KEY-SQ ENDS 3/16 X 3/16 X 1-7/16LG
$6.77 $8.25
SKU 342033
RETAINER PLATE-BRK/7/200/R8B,8620HR
RETAINER PLATE-BRK/7/200/R8B,8620HR
$163.18 $199.00
SKU 352022
SHAFT
SHAFT
$56.58 $69.00
SKU 356901
DRUM SHAFT
DRUM SHAFT
$257.48 $314.00
SKU 357479
DRUM SHAFT, Y200, R/L & LEV, W/1 PC GEAR
DRUM SHAFT, Y200, R/L & LEV, W/1 PC GEAR
$266.50 $325.00
SKU 357481
Ramsey Winch Parts
COPPER STRAP
$10.25 $12.50
SKU 364001
Ramsey Winch Parts
STRAP-COPPER
$11.48 $14.00
SKU 364002
WORM-R.H. SL 1 5/8DIAX9 3/8LG 8620H
WORM-R.H. SL 1 5/8DIAX9 3/8LG 8620H
$417.38 $509.00
SKU 368001
NEEDLE BEARING
NEEDLE BEARING
$19.68 $24.00
SKU 402001
MOUNTING BRACKET SOLENOID
MOUNTING BRACKET SOLENOID
$9.43 $11.50
SKU 408035
BOLT 1/4NC X 1
BOLT 1/4NC X 1
$1.23 $1.50
SKU 414021
CAPSCREW-1/4-20NC X 1 LG
CAPSCREW-1/4-20NC X 1 LG
$1.23 $1.50
SKU 414039
Ramsey
CAPSCREW 1/4-20NC X 7/8 LG. HEX HD
$1.23 $1.50
SKU 414045
CAPSCREW 1/4-20NC X 1LG
CAPSCREW 1/4-20NC X 1LG
$2.26 $2.75
SKU 414059
CAPSCREW 3/8-16NC X 3/4 LG
CAPSCREW 3/8-16NC X 3/4 LG
$2.26 $2.75
SKU 414279
CAPSCREW-3/8-16NC X 1 1/4LG
CAPSCREW-3/8-16NC X 1 1/4LG
$3.49 $4.25
SKU 414282
CAPSCREW 1/4-20NC X 7/8
CAPSCREW 1/4-20NC X 7/8
$1.23 $1.50
SKU 414821
CAPSCREW 1/4-20NC X 1 NYLOK
CAPSCREW 1/4-20NC X 1 NYLOK
$3.49 $4.25
SKU 414845
CAPSCREW 1/4-20NC X 3/4 LG
CAPSCREW 1/4-20NC X 3/4 LG
$1.01 $1.19
SKU 414856
CAPSCREW-3/8-16NC X 5/8 LG
CAPSCREW-3/8-16NC X 5/8 LG
$3.49 $4.25
SKU 414912
SCREW SS-1/4-20NC X 3/8
SCREW SS-1/4-20NC X 3/8
$4.72 $5.75
SKU 416030
SETSCREW 3/8-16NC X 1/2
SETSCREW 3/8-16NC X 1/2
$2.26 $2.75
SKU 416059
SCREW-#10-24NC X 1/2LG
SCREW-#10-24NC X 1/2LG
$2.26 $2.75
SKU 416216
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
$1.23 $1.50
SKU 416227
NUT 3/8-16 NC
NUT 3/8-16 NC
$2.26 $2.75
SKU 418036
NUT 3/8-24NF HEX
NUT 3/8-24NF HEX
$2.26 $2.75
SKU 418040
WASHER-1/4 FLAT ALUM.
WASHER-1/4 FLAT ALUM.
$2.26 $2.75
SKU 418154
LOCKWASHER 5/16
LOCKWASHER 5/16
$1.23 $1.50
SKU 418163
WASHER 5/16
WASHER 5/16
$1.23 $1.50
SKU 418165
LOCKWASHER 3/8
LOCKWASHER 3/8
$1.23 $1.50
SKU 418177
TERMINAL TAB-MALE
TERMINAL TAB-MALE
$1.23 $1.50
SKU 440071
SOLENOID-12V
SOLENOID-12V
$63.35 $77.25
SKU 440110
GASKET-SPUR GR BX,DC7-8-200,N40 COR
GASKET-SPUR GR BX,DC7-8-200,N40 COR
$4.10 $5.00
SKU 442185
GASKET-BRK HSG COVER,200,D/CORK N40
GASKET-BRK HSG COVER,200,D/CORK N40
$3.49 $4.25
SKU 442189
GREASE FITTING-3/16
GREASE FITTING-3/16
$2.26 $2.75
SKU 456001
RELIEF FITTING -1/8-27PFT
RELIEF FITTING -1/8-27PFT
$5.54 $6.75
SKU 456008
3/8-1/8 NPTF GEN.PLUG
3/8-1/8 NPTF GEN.PLUG
$5.54 $6.75
SKU 468002
PIPE PLUG 1/4-18 NPTF HEX
PIPE PLUG 1/4-18 NPTF HEX
$2.26 $2.75
SKU 468017
PIPE PLUG 3/8-18 NPTF
PIPE PLUG 3/8-18 NPTF
$2.26 $2.75
SKU 468018
DOWEL PIN-3/16 DIA X 3/4 LG
DOWEL PIN-3/16 DIA X 3/4 LG
$2.26 $2.75
SKU 470001
SOLENOID COVER, 4.8HP MTR, RE8/10/12
SOLENOID COVER, 4.8HP MTR, RE8/10/12
$10.25 $12.50
SKU 472071
THRUST PLATE 7 & 200, SCAN-PAC #RF-53
THRUST PLATE 7 & 200, SCAN-PAC #RF-53
$64.78 $79.00
SKU 474001
RUBBER GROMMET
RUBBER GROMMET
$3.49 $4.25
SKU 482013
COVER FEMALE RECEPTACLE
COVER FEMALE RECEPTACLE
$6.77 $8.25
SKU 482029
Ramsey Winch Parts
OIL SEAL
$23.17 $28.25
SKU 486023
SEAL
SEAL
$5.13 $6.25
SKU 486069
SNAP RING
SNAP RING
$3.49 $4.25
SKU 490003
RAM-LOK CLUTCH SPRING-W/MOD 200
Average rating:
average rating 100%
RAM-LOK CLUTCH SPRING-W/MOD 200
$2.26 $2.75
SKU 494053
Ramsey Winch Parts
THRUST WASHER COMM BRONZE GR 220
$9.43 $11.50
SKU 518002
Ramsey Winch Parts
THRUST WASHER - GH,7,8,200,R8,2000,6000
$3.49 $4.25
SKU 518015
Ramsey Winch Parts
COVER-SOLENOID
$1.23 $1.50
SKU 530106
