Ramsey Winch Electric DC-300 Series Parts (DC/Y 300/346)

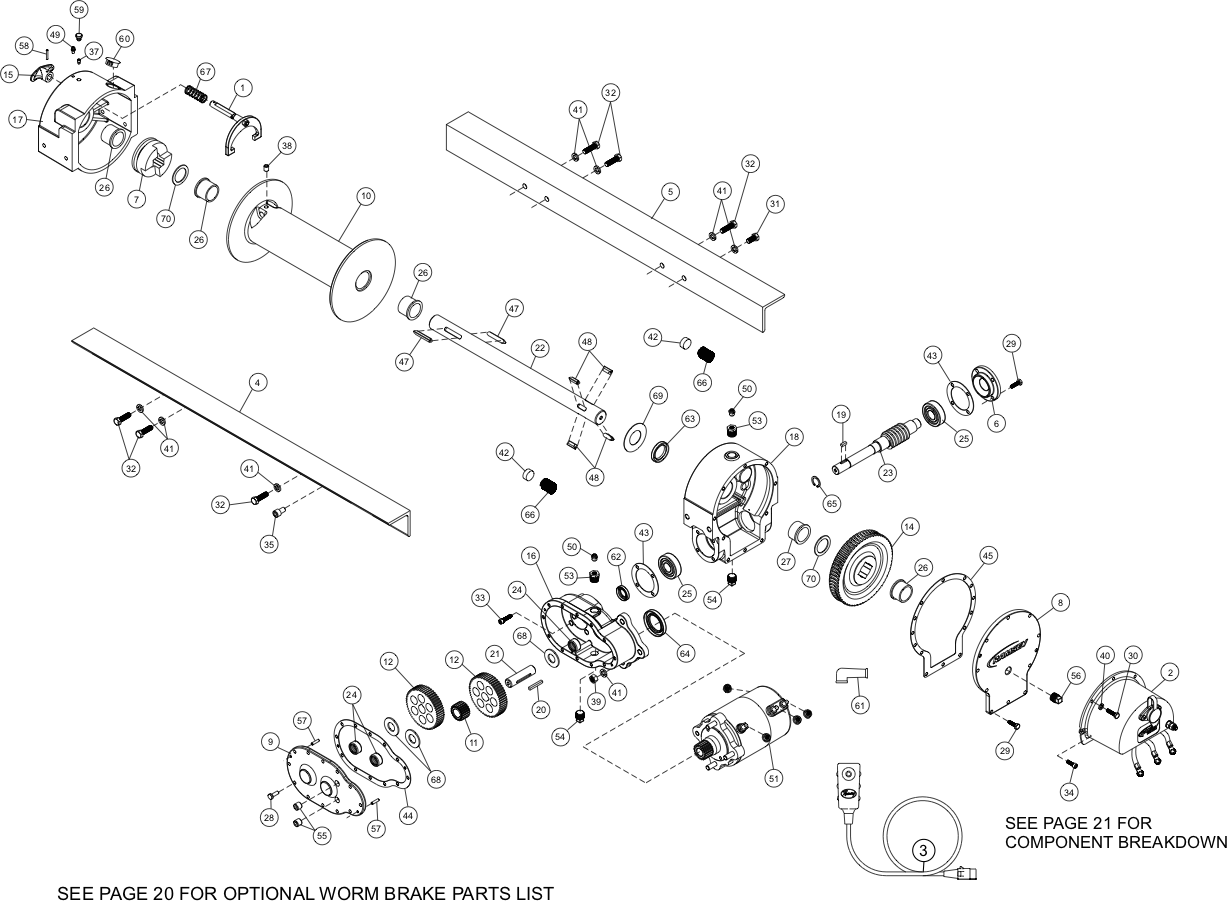

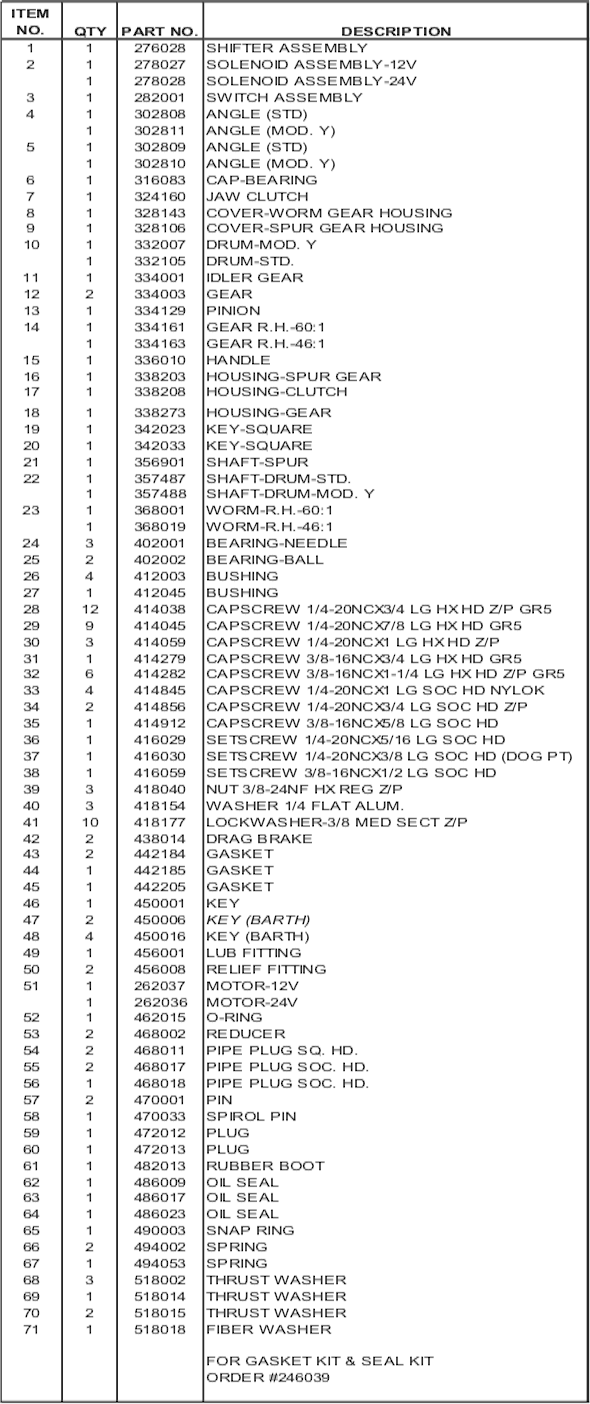

Ramsey Winch Electric DC-300 Series Parts DiagramRamsey Winch Electric DC-300 Series Parts List
Tap or Click Images to Zoom

diagram3

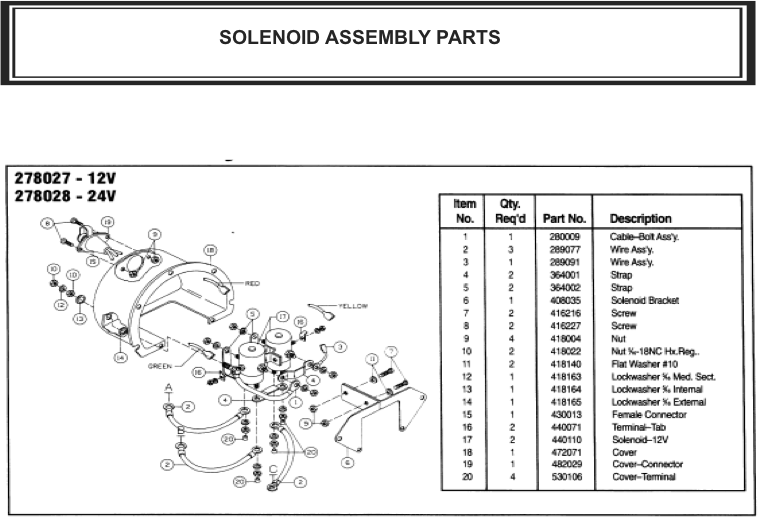

Ramsey Winch Electric DC-300 Series Solenoid Parts Diagram

ramsey-no-pic
DRUM SHAFT RAMSEY #357487
$294.38 $359.00
SKU: 357487
no image available
Average rating:
average rating 60%
BALL BEARING
$21.94 $26.75
SKU: 402002
no image available
GASKET
$2.26 $2.75
SKU: 442184
no image available
OIL SEAL
$12.92 $15.75
SKU: 486009
no image available
GASKET
$6.77 $8.25
SKU: 442205
Ramsey Winch Parts
Ramsey Key Barth
$4.72 $5.75
SKU: 450016
no image available
PIPE PLUG
$2.26 $2.75
SKU: 468011
Ramsey HD200R Brass Gear 334161
Ramsey HD200R Brass Gear 334161
$349.32 $426.00
SKU: 334161
no image available
CLUTCH JAW
$127.10 $155.00
SKU: 324160
no image available
Housing Gear Model 200 338273
$287.82 $351.00
SKU: 338273
no image available
SEAL
$19.68 $24.00
SKU: 486017
360347,
BUSHING
$27.88 $34.00
SKU: 412003
ramsey-no-pic
BUSHING
$14.97 $18.25
SKU: 412045
ramsey-no-pic
CLUTCH HOUSING RAM-LOK ALUM 338208
$282.90 $345.00
SKU: 338208
ramsey-no-pic
RAMSEY HANDLE 336010
$24.40 $29.75
SKU: 336010
ramsey-no-pic
RAMSEY KEY 342027
$14.97 $18.25
SKU: 342027
ramsey-no-pic
RAMSEY PIN - SPIROL 470033
$2.26 $2.75
SKU: 470033
ramsey-no-pic
Average rating:
average rating 100%
RAMSEY SPRING 494002
$6.77 $8.25
SKU: 494002
ramsey-no-pic
PLASTIC PLUG
$2.26 $2.75
SKU: 472013
ramsey-no-pic
RUBBER PLUG
$3.49 $4.25
SKU: 472012
Key - Barth (Ramsey) 450006
Key - Barth
$23.17 $28.25
SKU: 450006
ramsey-no-pic
BRAKE DISC
$12.20 $15.21
SKU: 330010
Ramsey Winch Parts
THRUST WASHER
$24.40 $29.75
SKU: 518014
ramsey-no-pic
BALL POPPET 400003
$3.49 $4.25
SKU: 400003
ramsey-no-pic
ANGLE-1/4X2.5X2.5X36LG,DC&H-200
$126.28 $154.00
SKU: 302809
Ramsey Winch Parts
SOLENOID ASSEMBLY-DC-200, NEW STYLE, 12V
$206.64 $252.00
SKU: 278027
Ramsey Winch Parts
SOLENOID ASSY-DC-200,NEW STYLE,24V
$219.76 $268.00
SKU: 278028
ramsey-no-pic
CABLE & BOLT ASSY-W/ALL 12 & 24V SOLENOID
$21.94 $26.75
SKU: 280009
ramsey-no-pic
SWITCH ASSEMBLY-12FT LG
$89.38 $109.00
SKU: 282001
ramsey-no-pic
WIRE ASSY - 4.5LG, #6GA 2-TERM
$11.48 $14.00
SKU: 289077
ramsey-no-pic
WIRE ASSY-EXT,FEM CONN TO SOL,PLANE
$8.20 $10.00
SKU: 289091
ramsey-no-pic
ANGLE 1/4X2.5X2.5X36 LG, DC-200
$85.28 $104.00
SKU: 302808
ramsey-no-pic
ANGLE-1/4X2.5X2.5X36LG,DCY-/HY-200
$98.40 $120.00
SKU: 302810
ramsey-no-pic
SPRING-FLAT,BRK,G200,G7,FM FIN.
$40.80 $49.75
SKU: 306034
ramsey-no-pic
CAM PLATE-WM BRK,7/200/R-8B,8620 HR
$281.26 $343.00
SKU: 314008
ramsey-no-pic
BEARING CAP
$33.42 $40.75
SKU: 316083
Ramsey Winch Parts
COVER-SPUR GH,DC8 & 200
$108.24 $132.00
SKU: 328106
ramsey-no-pic
COVER-WM BRK,G7/G200,.321 BOSS,TENZ
$151.70 $185.00
SKU: 328128
ramsey-no-pic
DRUM-MODEL Y-200, MFG FOR 234005
$712.58 $869.00
SKU: 332007
ramsey-no-pic
IDLER GEAR
$124.64 $152.00
SKU: 334001
ramsey-no-pic
GEAR-INTER & DRIVE, DC8 & DC200
$150.88 $184.00
SKU: 334003
ramsey-no-pic
PINION
$130.38 $159.00
SKU: 334129
ramsey-no-pic
GEAR-RH,SL,8P,246R,1 PC WORM GEAR
$342.76 $418.00
SKU: 334163
ramsey-no-pic
BRAKE HOUSING-MOD 200 TENZ CASTING
$291.92 $356.00
SKU: 338007
ramsey-no-pic
HOUSING -SPUR GEAR DC7-8-200
$457.56 $558.00
SKU: 338203
ramsey-no-pic
HUB-BRAKE, MODEL 200, FINISHED
$36.90 $45.00
SKU: 340002
ramsey-no-pic
KEY-SQ ENDS,3/16 X 3/16 X 1/2
$6.77 $8.25
SKU: 342023
ramsey-no-pic
KEY-SQ ENDS 3/16 X 3/16 X 1-7/16LG
$6.77 $8.25
SKU: 342033
ramsey-no-pic
RETAINER PLATE-BRK/7/200/R8B,8620HR
$163.18 $199.00
SKU: 352022
ramsey-no-pic
SHAFT
$56.58 $69.00
SKU: 356901
ramsey-no-pic
OUTPUT SHAFT
$127.92 $156.00
SKU: 357488
Ramsey Winch Parts
COPPER STRAP
$10.25 $12.50
SKU: 364001
Ramsey Winch Parts
STRAP-COPPER
$11.48 $14.00
SKU: 364002
ramsey-no-pic
WORM-R.H. SL 1 5/8DIAX9 3/8LG 8620H
$417.38 $509.00
SKU: 368001
ramsey-no-pic
NEEDLE BEARING
$19.68 $24.00
SKU: 402001
ramsey-no-pic
MOUNTING BRACKET SOLENOID
$9.43 $11.50
SKU: 408035
ramsey-no-pic
BOLT 1/4NC X 1
$1.23 $1.50
SKU: 414021
ramsey-no-pic
CAPSCREW-1/4-20NC X 1 LG
$1.23 $1.50
SKU: 414039
Ramsey
CAPSCREW 1/4-20NC X 7/8 LG. HEX HD
$1.23 $1.50
SKU: 414045
ramsey-no-pic
CAPSCREW 1/4-20NC X 1LG
$2.26 $2.75
SKU: 414059
ramsey-no-pic
CAPSCREW 3/8-16NC X 3/4 LG
$2.26 $2.75
SKU: 414279
ramsey-no-pic
CAPSCREW-3/8-16NC X 1 1/4LG
$3.49 $4.25
SKU: 414282
ramsey-no-pic
CAPSCREW 1/4-20NC X 7/8
$1.23 $1.50
SKU: 414821
ramsey-no-pic
CAPSCREW 1/4-20NC X 1 NYLOK
$3.49 $4.25
SKU: 414845
ramsey-no-pic
CAPSCREW 1/4-20NC X 3/4 LG
$1.01 $1.19
SKU: 414856
ramsey-no-pic
CAPSCREW-3/8-16NC X 5/8 LG
$3.49 $4.25
SKU: 414912
ramsey-no-pic
SETSCREW 1/4-20 X 5/16
$4.72 $5.75
SKU: 416029
ramsey-no-pic
SCREW SS-1/4-20NC X 3/8
$4.72 $5.75
SKU: 416030
ramsey-no-pic
SETSCREW 3/8-16NC X 1/2
$2.26 $2.75
SKU: 416059
ramsey-no-pic
SCREW-#10-24NC X 1/2LG
$2.26 $2.75
SKU: 416216
ramsey-no-pic
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
$1.23 $1.50
SKU: 416227
ramsey-no-pic
NUT-HEX #10-24NC REG
$2.26 $2.75
SKU: 418004
ramsey-no-pic
NUT 5/16-18NC HEX REG
$2.26 $2.75
SKU: 418022
ramsey-no-pic
NUT-3/8-16NC HEX REG ZINC PLATED
$1.23 $1.50
SKU: 418035
ramsey-no-pic
NUT 3/8-24NF HEX
$2.26 $2.75
SKU: 418040
ramsey-no-pic
WASHER-1/4 FLAT ALUM.
$2.26 $2.75
SKU: 418154
ramsey-no-pic
LOCKWASHER 5/16
$1.23 $1.50
SKU: 418163
ramsey-no-pic
WASHER 5/16
$1.23 $1.50
SKU: 418165
ramsey-no-pic
LOCKWASHER 3/8
$1.23 $1.50
SKU: 418177
Ramsey Winch Parts
Average rating:
average rating 100%
CONNECTOR-FEMALE RECEPTACLE MOLDED
$46.33 $56.50
SKU: 430013
ramsey-no-pic
TERMINAL TAB-MALE
$1.23 $1.50
SKU: 440071
ramsey-no-pic
SOLENOID-12V
$63.35 $77.25
SKU: 440110
ramsey-no-pic
GASKET-SPUR GR BX,DC7-8-200,N40 COR
$4.10 $5.00
SKU: 442185
ramsey-no-pic
GASKET-BRK HSG COVER,200,D/CORK N40
$3.49 $4.25
SKU: 442189
ramsey-no-pic
KEY-WOODRUFF NO. 9
$3.49 $4.25
SKU: 450001
ramsey-no-pic
GREASE FITTING-3/16
$2.26 $2.75
SKU: 456001
ramsey-no-pic
RELIEF FITTING -1/8-27PFT
$5.54 $6.75
SKU: 456008
ramsey-no-pic
O-RING-1/8 X 3/4 X 1 OD,VICTOR #722
$3.49 $4.25
SKU: 462015
ramsey-no-pic
3/8-1/8 NPTF GEN.PLUG
$5.54 $6.75
SKU: 468002
ramsey-no-pic
PIPE PLUG 1/4-18 NPTF HEX
$2.26 $2.75
SKU: 468017
ramsey-no-pic
PIPE PLUG 3/8-18 NPTF
$2.26 $2.75
SKU: 468018
ramsey-no-pic
DOWEL PIN-3/16 DIA X 3/4 LG
$2.26 $2.75
SKU: 470001
ramsey-no-pic
SOLENOID COVER, 4.8HP MTR, RE8/10/12
$10.25 $12.50
SKU: 472071
ramsey-no-pic
THRUST PLATE 7 & 200, SCAN-PAC #RF-53
$64.78 $79.00
SKU: 474001
ramsey-no-pic
RUBBER GROMMET
$3.49 $4.25
SKU: 482013
ramsey-no-pic
COVER FEMALE RECEPTACLE
$6.77 $8.25
SKU: 482029
Ramsey Winch Parts
OIL SEAL
$23.17 $28.25
SKU: 486023
ramsey-no-pic
SNAP RING
$3.49 $4.25
SKU: 490003
ramsey-no-pic
SPRING-WM BRK COV,.525X9/16LG MOD7,
$16.20 $19.75
SKU: 494007
ramsey-no-pic
Average rating:
average rating 100%
RAM-LOK CLUTCH SPRING-W/MOD 200
$2.26 $2.75
SKU: 494053
Ramsey Winch Parts
THRUST WASHER COMM BRONZE GR 220
$9.43 $11.50
SKU: 518002
Ramsey Winch Parts
THRUST WASHER - GH,7,8,200,R8,2000,6000
$3.49 $4.25
SKU: 518015
Ramsey Winch Parts
FIBER WASHER, W/PINION
$2.26 $2.75
SKU: 518018
Ramsey Winch Parts
COVER-SOLENOID
$1.23 $1.50
SKU: 530106
