Ramsey Heavy Duty Electric Winch Parts

Ramsey Winch Electric DC-7 DCX-7 Parts

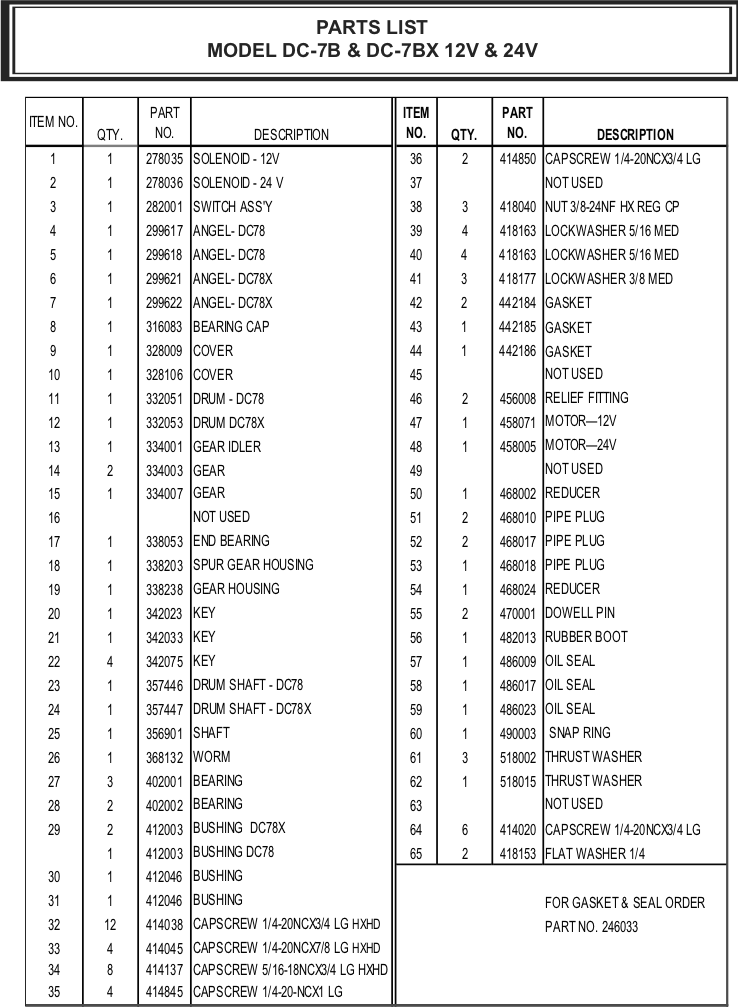

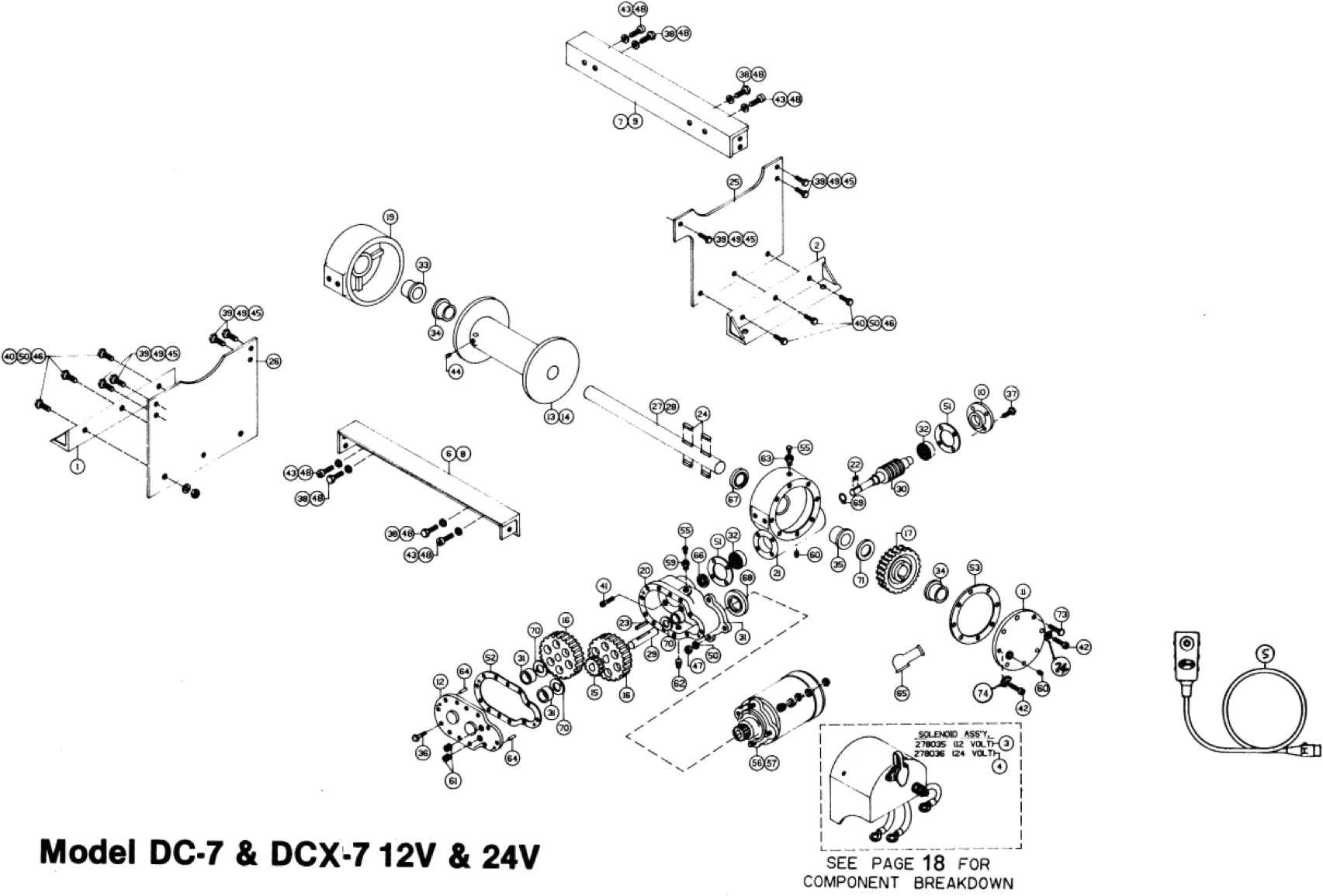

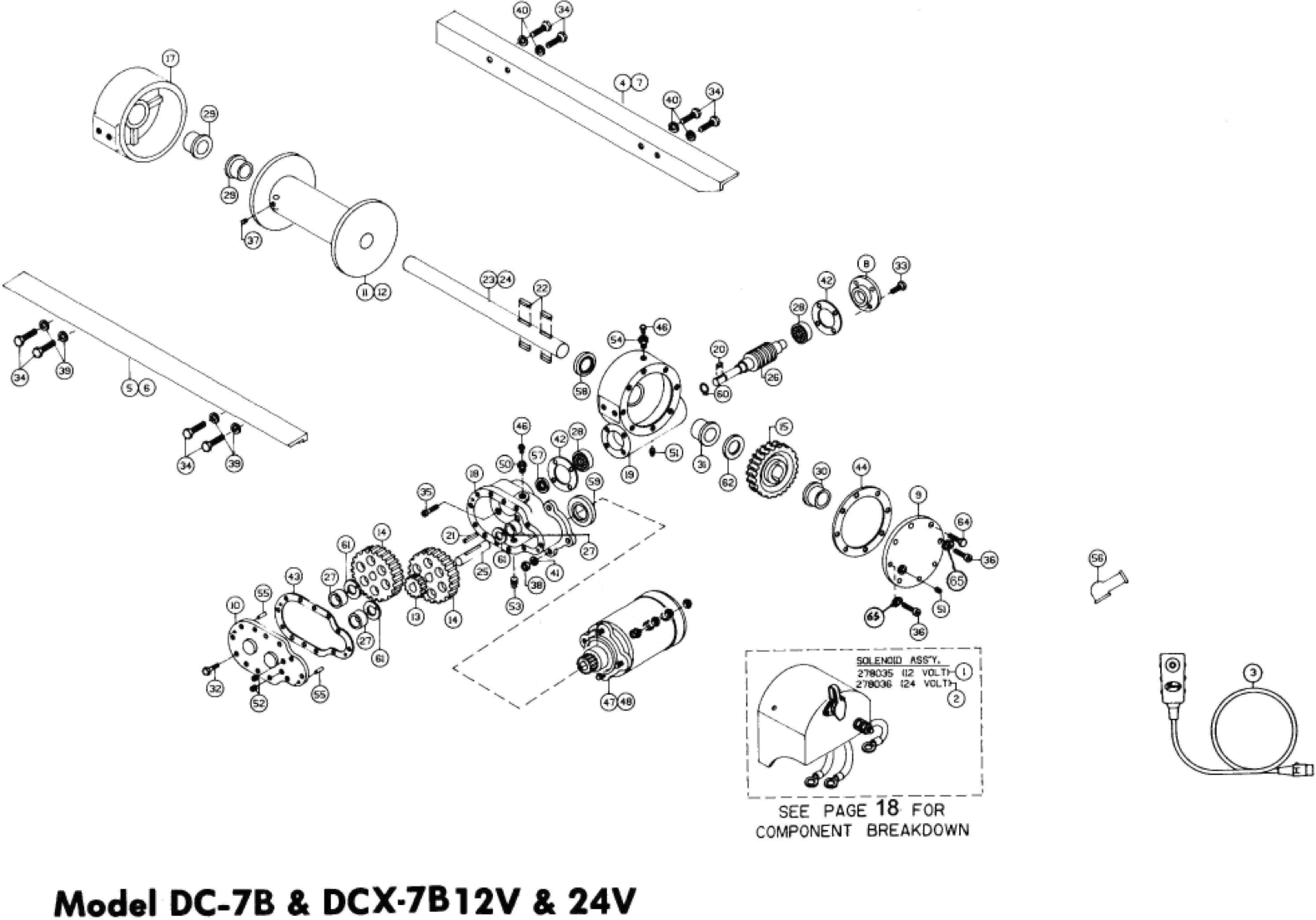

Ramsey Winch Electric DC-7 DCX-7 Parts DiagramRamsey Winch Electric DC-7 DCX-7 Parts List

Ramsey Winch Electric DC-7 DCX-7 Parts DiagramRamsey Winch Electric DC-7 DCX-7 Parts List

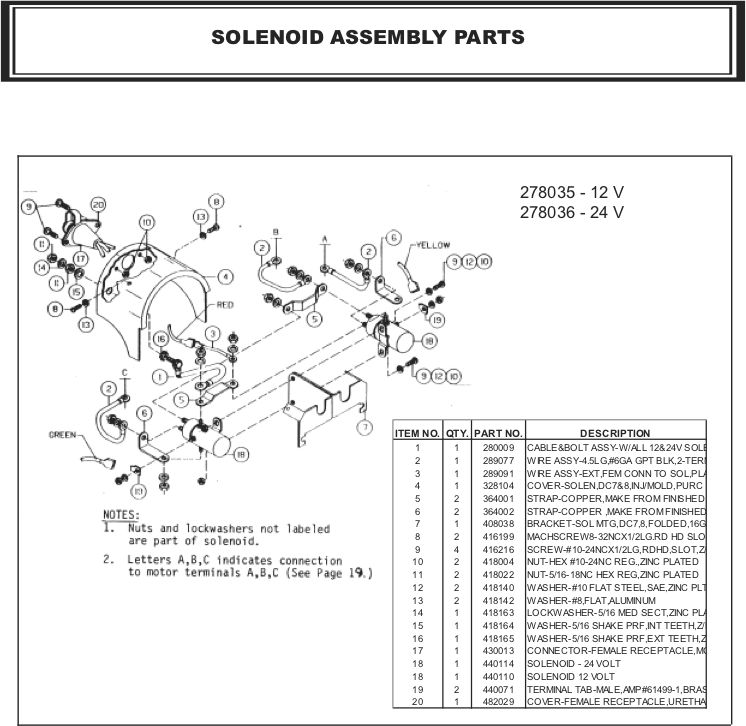

Ramsey Winch Electric DC-7 DCX-7 Solenoid Parts Diagram

no image available
Average rating:
average rating 60%
BALL BEARING
$19.80 $24.75
SKU 402002
no image available
GASKET
$2.00 $2.50
SKU 442184
no image available
OIL SEAL
$11.40 $14.25
SKU 486009
no image available
Capscrew 1/4-20unc x 3/4 LG HX HD GR5 Z/P
$1.80 $2.25
SKU 414038
no image available
SEAL
$17.60 $22.00
SKU 486017
360347,
BUSHING
$80.00 $100.00
SKU 412003
Out Of Stock - Call For Availability
HOUSING-TENZALOY CASTING
HOUSING-TENZALOY CASTING
$295.20 $369.00
SKU 338053
ELECTRIC MOTOR ASSEMBLY - 24V, RE-12000, W/ISOLATED GROUND
ELECTRIC MOTOR ASSEMBLY - 24V, RE-12000, W/ISOLATED GROUND
$690.40 $863.00
SKU 262036
Ramsey Winch Parts
SOLENOID ASSY-12VDC,DC-7,DC-8&6000
$292.74 $357.00
SKU 278035
CABLE & BOLT ASSY-W/ALL 12 & 24V SOLENOID
CABLE & BOLT ASSY-W/ALL 12 & 24V SOLENOID
$21.94 $26.75
SKU 280009
WIRE ASSY - 4.5LG, #6GA 2-TERM
WIRE ASSY - 4.5LG, #6GA 2-TERM
$11.48 $14.00
SKU 289077
Ramsey Winch Parts
WIRE ASSY-EXT,FEM CONN TO SOL,PLANE
$8.20 $10.00
SKU 289091
BEARING CAP
BEARING CAP
$33.42 $40.75
SKU 316083
Ramsey Winch Parts
COVER-WGH,W/MOD 7,8,H7,H8,DC8,TENZ
$134.40 $168.00
SKU 328009
Ramsey Winch Parts
COVER-SPUR GH,DC8 & 200
$96.80 $121.00
SKU 328106
Ramsey Winch
DRUM
$269.78 $329.00
SKU 332051
DRUM-MOD X7
DRUM-MOD X7
$692.08 $844.00
SKU 332053
IDLER GEAR
IDLER GEAR
$359.20 $449.00
SKU 334001
GEAR-INTER & DRIVE, DC8 & DC200
GEAR-INTER & DRIVE, DC8 & DC200
$133.60 $167.00
SKU 334003
GEAR-RH SL,7-R STD,MAKE FROM GEAR B
GEAR-RH SL,7-R STD,MAKE FROM GEAR B
$339.20 $424.00
SKU 334007
HOUSING -SPUR GEAR DC7-8-200
HOUSING -SPUR GEAR DC7-8-200
$407.20 $509.00
SKU 338203
Ramsey Winch Parts
GEAR HOUSING, MOD8, 6000
$492.00 $615.00
SKU 338238
KEY-SQ ENDS,3/16 X 3/16 X 1/2
KEY-SQ ENDS,3/16 X 3/16 X 1/2
$6.00 $7.50
SKU 342023
KEY-SQ ENDS 3/16 X 3/16 X 1-7/16LG
KEY-SQ ENDS 3/16 X 3/16 X 1-7/16LG
$6.00 $7.50
SKU 342033
KEY-RD ENDS,5/16X5/16X.937,HT,PURCH
KEY-RD ENDS,5/16X5/16X.937,HT,PURCH
$8.40 $10.50
SKU 342075
SHAFT
SHAFT
$48.40 $60.50
SKU 356901
DRUM SHAFT
DRUM SHAFT
$140.22 $171.00
SKU 357446
DRUM SHAFT-W/7X LG DRUM
DRUM SHAFT-W/7X LG DRUM
$218.94 $267.00
SKU 357447
Ramsey Winch Parts
COPPER STRAP
$9.20 $11.50
SKU 364001
Ramsey Winch Parts
STRAP-COPPER
$10.00 $12.50
SKU 364002
NEEDLE BEARING
NEEDLE BEARING
$17.60 $22.00
SKU 402001
BRACKET SOL MOUNTING
BRACKET SOL MOUNTING
$41.43 $48.74
SKU 408038
BUSHING
BUSHING
$8.40 $10.50
SKU 412046
Ramsey
CAPSCREW 1/4-20NC X 7/8 LG. HEX HD
$1.23 $1.50
SKU 414045
CAPSCREW-5/16-18NC X 3/4
CAPSCREW-5/16-18NC X 3/4
$2.26 $2.75
SKU 414137
CAPSCREW 1/4-20NC X 1 NYLOK
CAPSCREW 1/4-20NC X 1 NYLOK
$9.60 $12.00
SKU 414845
SCREW-#10-24NC X 1/2LG
SCREW-#10-24NC X 1/2LG
$3.60 $4.50
SKU 416216
NUT-HEX #10-24NC REG
NUT-HEX #10-24NC REG
$0.80 $1.00
SKU 418004
NUT 5/16-18NC HEX REG
NUT 5/16-18NC HEX REG
$2.26 $2.75
SKU 418022
NUT-3/8-16NC HEX REG ZINC PLATED
NUT-3/8-16NC HEX REG ZINC PLATED
$1.23 $1.50
SKU 418035
NUT 3/8-24NF HEX
NUT 3/8-24NF HEX
$6.20 $7.75
SKU 418040
LOCKWASHER 5/16
LOCKWASHER 5/16
$1.80 $2.25
SKU 418163
WASHER 5/16
WASHER 5/16
$1.23 $1.50
SKU 418165
LOCKWASHER 3/8
LOCKWASHER 3/8
$1.23 $1.50
SKU 418177
Ramsey Winch Parts
Average rating:
average rating 100%
CONNECTOR-FEMALE RECEPTACLE MOLDED
$46.33 $56.50
SKU 430013
TERMINAL TAB-MALE
TERMINAL TAB-MALE
$1.23 $1.50
SKU 440071
SOLENOID-12V
SOLENOID-12V
$184.00 $230.00
SKU 440110
SOLENOID-24V
SOLENOID-24V
$75.24 $91.75
SKU 440114
GASKET-SPUR GR BX,DC7-8-200,N40 COR
GASKET-SPUR GR BX,DC7-8-200,N40 COR
$4.60 $5.75
SKU 442185
GASKET-GH COVER,MOD 7&8,N-40 CORK
GASKET-GH COVER,MOD 7&8,N-40 CORK
$4.00 $5.00
SKU 442186
RELIEF FITTING -1/8-27PFT
RELIEF FITTING -1/8-27PFT
$10.00 $12.50
SKU 456008
3/8-1/8 NPTF GEN.PLUG
3/8-1/8 NPTF GEN.PLUG
$5.20 $6.50
SKU 468002
PIPE PLUG-1/4-18 NPTF, SQ
PIPE PLUG-1/4-18 NPTF, SQ
$2.20 $2.75
SKU 468010
PIPE PLUG 1/4-18 NPTF HEX
PIPE PLUG 1/4-18 NPTF HEX
$6.20 $7.75
SKU 468017
PIPE PLUG 3/8-18 NPTF
PIPE PLUG 3/8-18 NPTF
$3.60 $4.50
SKU 468018
REDUCER 1/8-1/4 NPTF
REDUCER 1/8-1/4 NPTF
$38.00 $47.50
SKU 468024
DOWEL PIN-3/16 DIA X 3/4 LG
DOWEL PIN-3/16 DIA X 3/4 LG
$4.40 $5.50
SKU 470001
RUBBER GROMMET
RUBBER GROMMET
$5.40 $6.75
SKU 482013
COVER FEMALE RECEPTACLE
COVER FEMALE RECEPTACLE
$6.77 $8.25
SKU 482029
Ramsey Winch Parts
OIL SEAL
$66.60 $83.25
SKU 486023
SNAP RING
SNAP RING
$9.60 $12.00
SKU 490003
Ramsey Winch Parts
THRUST WASHER COMM BRONZE GR 220
$8.00 $10.00
SKU 518002
Ramsey Winch Parts
THRUST WASHER - GH,7,8,200,R8,2000,6000
$3.20 $4.00
SKU 518015
