Planetary Hydraulic Winch Parts
Ramsey Winch Parts
Ramsey Winch Parts

Ramsey Winch HDP 349 Parts

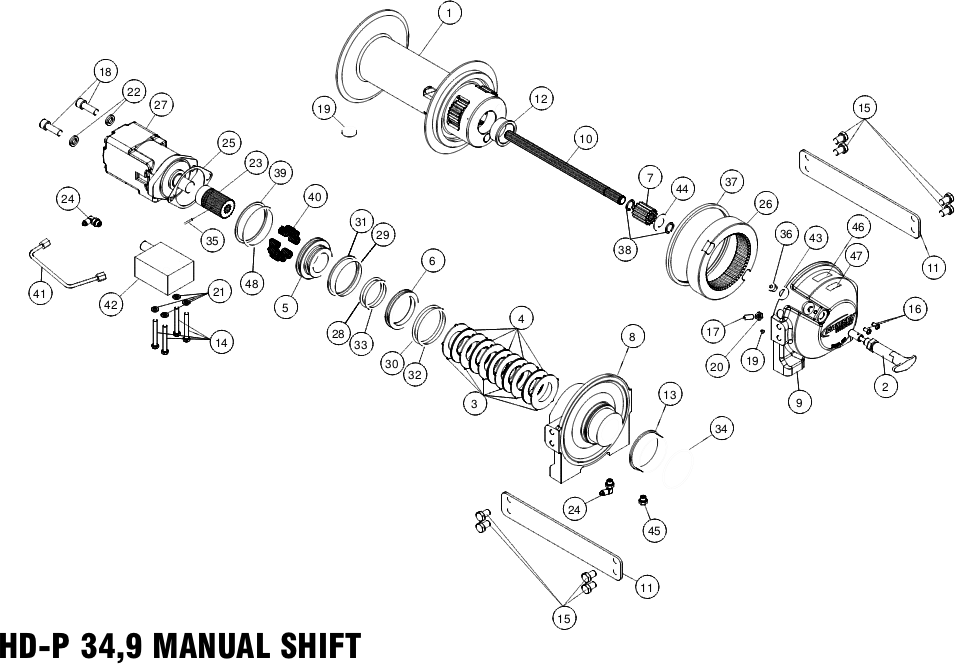

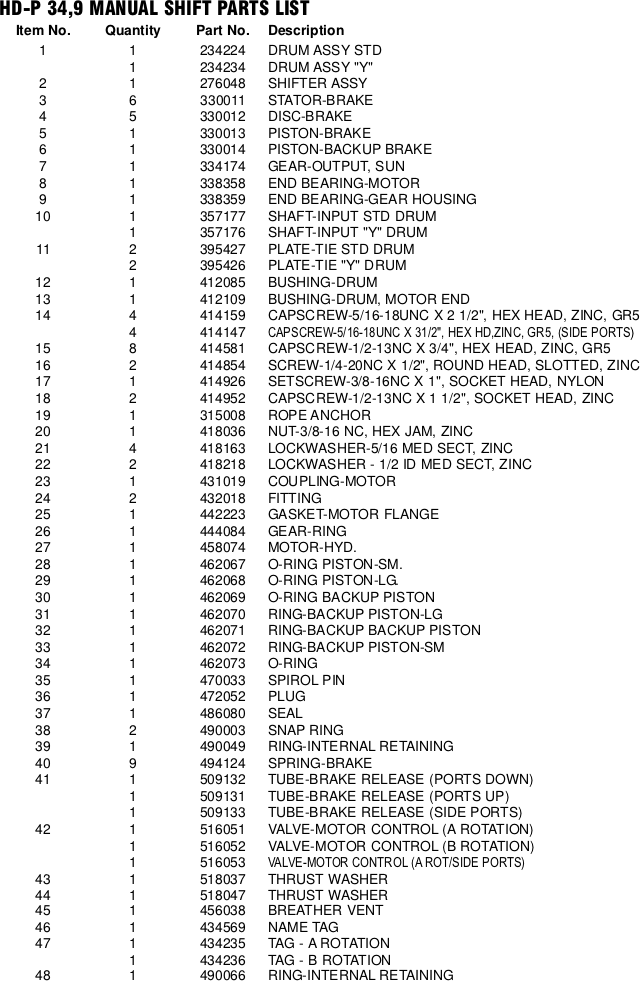

Ramsey Winch HDP 349 Parts DiagramRamsey Winch HDP 349 Parts List
Tap or Click Images to Zoom

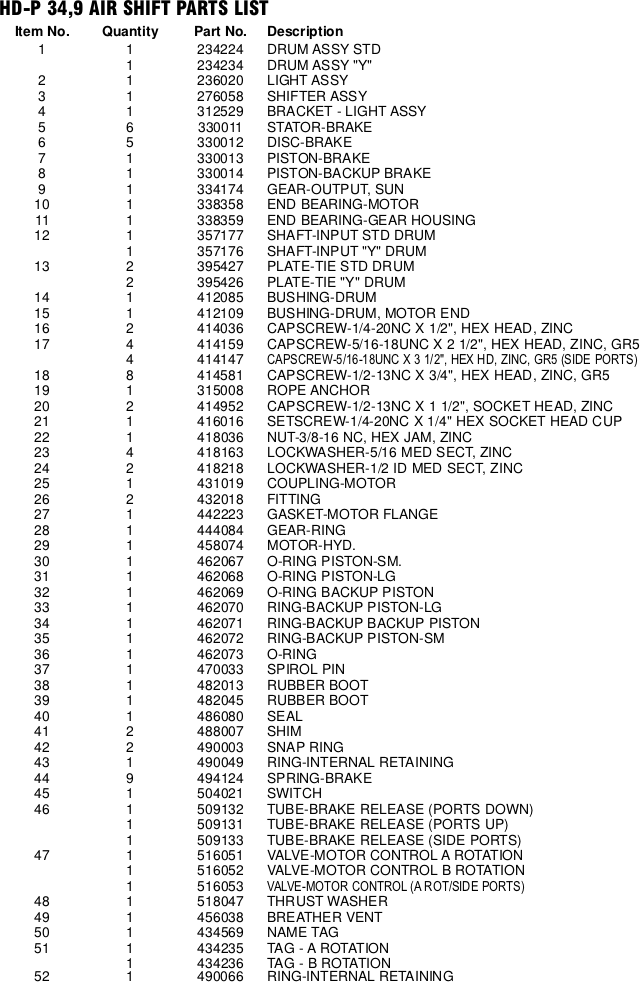

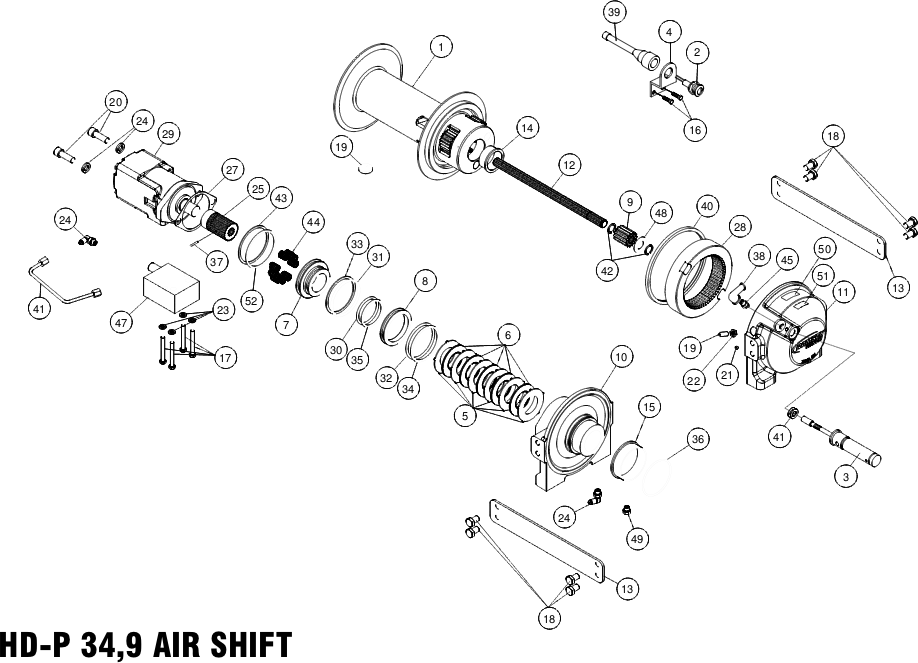

Air Shift Diagram Ramsey HD-PAir Shift Parts List
Tap or Click Images to Zoom
Ramsey Winch Parts
BUSHING
$29.93 $36.50
SKU 412109
O-RING
O-RING
$3.49 $4.25
SKU 462073
Ramsey End Bearing- Gear Housing 338359
Ramsey End Bearing- Gear Housing 338359
$246.82 $301.00
SKU 338359
END BEARING - MOTOR
END BEARING - MOTOR
$159.08 $194.00
SKU 338358
Ramsey Winch Parts
GASKET - MOTOR FLANGE
$3.20 $4.00
SKU 442223
RAMSEY Tube - Brake Release (Ports Down) 509132
RAMSEY Tube - Brake Release (Ports Down) 509132
$47.56 $58.00
SKU 509132
RAMSEY PIN - SPIROL 470033
RAMSEY PIN - SPIROL 470033
$3.40 $4.25
SKU 470033
BREATHER
BREATHER
$5.20 $6.50
SKU 456038
MANUAL SHIFTER ASSEMBLY-RPH8000
Average rating:
average rating 20%
MANUAL SHIFTER ASSEMBLY-RPH8000
$159.90 $195.00
SKU 276048
ROPE ANCHOR
ROPE ANCHOR
$11.48 $14.00
SKU 315008
Ramsey Parts
Average rating:
average rating 100%
BRAKE STATOR, HD-P8000
$4.72 $5.75
SKU 330011
DISC-BRAKE, HD-P8000
DISC-BRAKE, HD-P8000
$17.02 $20.75
SKU 330012
PISTON-BRAKE, MACHINED, HD-P8000
PISTON-BRAKE, MACHINED, HD-P8000
$100.04 $122.00
SKU 330013
BRAKE PISTON-BACKUP HD-P8000
BRAKE PISTON-BACKUP HD-P8000
$51.05 $62.25
SKU 330014
OUTPUT GEAR RPH-8000
OUTPUT GEAR RPH-8000
$52.07 $63.50
SKU 334174
INPUT SHAFT, Y-DRUM, HD-P8000
INPUT SHAFT, Y-DRUM, HD-P8000
$152.52 $186.00
SKU 357176
Ramsey Winch
INPUT SHAFT, HD-P8000
$150.06 $183.00
SKU 357177
PLATE-TIE, HD-P8000, Y-DRUM
PLATE-TIE, HD-P8000, Y-DRUM
$53.80 $67.25
SKU 395426
DRUM BUSHING GEAR END
DRUM BUSHING GEAR END
$59.80 $74.75
SKU 412085
CAPSCREW 5/16-18NC X 3-1/2
CAPSCREW 5/16-18NC X 3-1/2
$3.19 $4.25
SKU 414147
CAPSCREW 1/2-13NC X 3/4LG
CAPSCREW 1/2-13NC X 3/4LG
$2.26 $2.75
SKU 414581
Ramsey Winch Parts
SETSCREW 3/8-16NC X 1
$1.80 $2.25
SKU 414926
CAPSCREW 1/2-13NC X 1 1/2LG
CAPSCREW 1/2-13NC X 1 1/2LG
$3.49 $4.25
SKU 414952
NUT 3/8-16 NC
NUT 3/8-16 NC
$2.00 $2.50
SKU 418036
LOCKWASHER 5/16
LOCKWASHER 5/16
$1.80 $2.25
SKU 418163
LOCKWASHER 1/2 ID
LOCKWASHER 1/2 ID
$3.40 $4.25
SKU 418218
Ramsey Winch Parts
MOTOR COUPLING, HD-P8000
$56.58 $69.00
SKU 431019
FITTING 7/16-20 90 degree
FITTING 7/16-20 90 degree
$50.00 $62.50
SKU 432018
HYDRAULIC MOTOR
HYDRAULIC MOTOR
$367.20 $459.00
SKU 458074
O-RING 2.225 ID X .210 THK, 2-331
O-RING 2.225 ID X .210 THK, 2-331
$3.49 $4.25
SKU 462067
O-RING 3.10 ID X .210 THK
O-RING 3.10 ID X .210 THK
$3.49 $4.25
SKU 462068
O-RING 2.975 ID X .210 THK, 2-337
O-RING 2.975 ID X .210 THK, 2-337
$3.20 $4.00
SKU 462069
RING-BACKUP 3.143 ID X .076 THK, 8-338
RING-BACKUP 3.143 ID X .076 THK, 8-338
$3.49 $4.25
SKU 462070
RING-BACKUP, 3.018 ID X .076 THK, 8-337
RING-BACKUP, 3.018 ID X .076 THK, 8-337
$3.49 $4.25
SKU 462071
RING-BACKUP, 2.268 ID X .076 THK, 8-331
RING-BACKUP, 2.268 ID X .076 THK, 8-331
$3.49 $4.25
SKU 462072
Ramsey Parts
O-RING PLUG-SAE , .562-18NF
$1.80 $2.25
SKU 472052
SEAL-GH
SEAL-GH
$69.40 $86.75
SKU 486080
SNAP RING
SNAP RING
$9.60 $12.00
SKU 490003
RETAINING RING-INTERNAL
RETAINING RING-INTERNAL
$4.72 $5.75
SKU 490049
RETAINING RING-INTERNAL
RETAINING RING-INTERNAL
$23.17 $28.25
SKU 490066
SPRING-BRAKE, HD-P8000
SPRING-BRAKE, HD-P8000
$5.54 $6.75
SKU 494124
TUBE HYDRAULIC BRAKE RELEASE, HD-P8000 (VALVE MTD UP)
TUBE HYDRAULIC BRAKE RELEASE, HD-P8000 (VALVE MTD UP)
$47.56 $58.00
SKU 509131
COUNTER BALANCE VALVE
COUNTER BALANCE VALVE
$442.80 $540.00
SKU 516051
RAMSEY
COUNTER BALANCE VALVE, B-ROTATION, W/ TAMPER PROOF CARTRIDGE CAP
$387.04 $472.00
SKU 516052
Ramsey Winch Parts
THRUST WASHER
$2.60 $3.25
SKU 518037
Ramsey Winch Parts
THRUST WASHER,.063 THK. X 1.50 OD
$6.20 $7.75
SKU 518047
