Planetary Hydraulic Winch Parts

Ramsey Winch HDP-35000 Parts

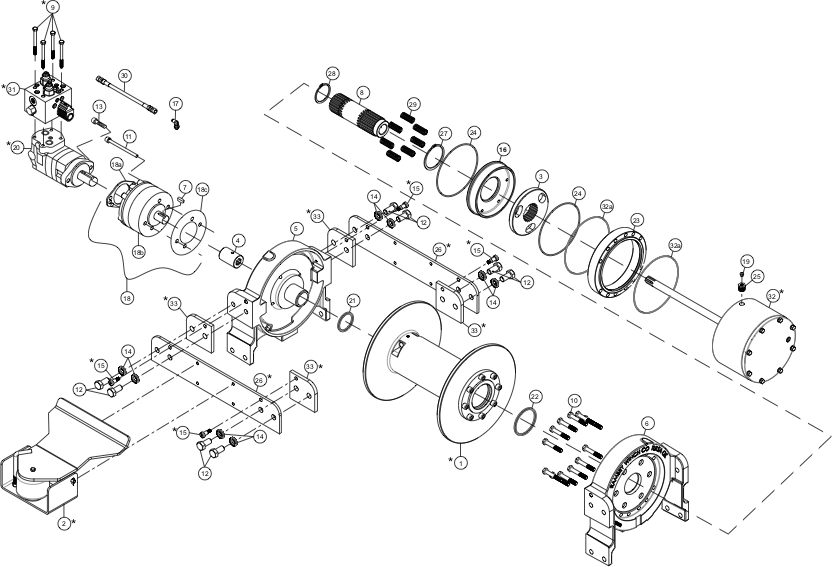

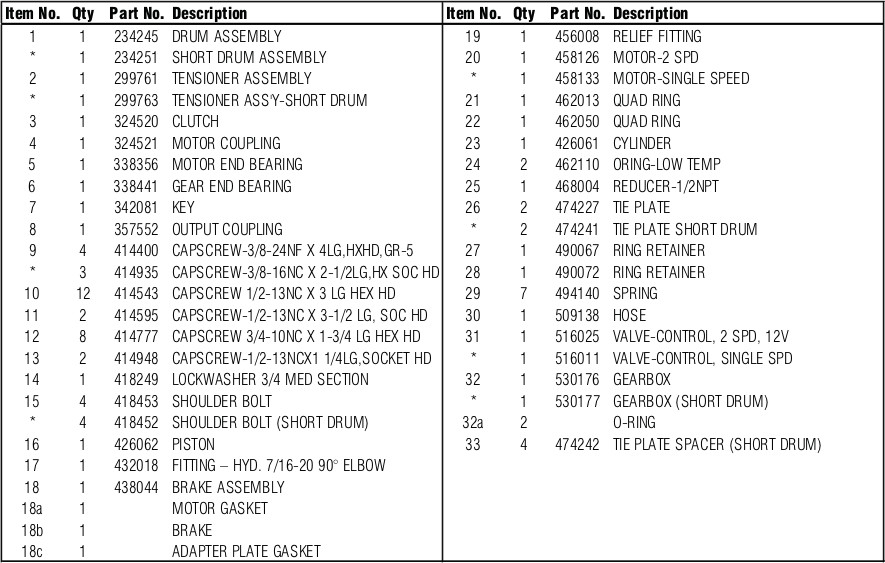

Ramsey Winch HDP-35000 Parts DiagramRamsey Winch HDP-35000 Parts List
Tap or Click Images to Zoom

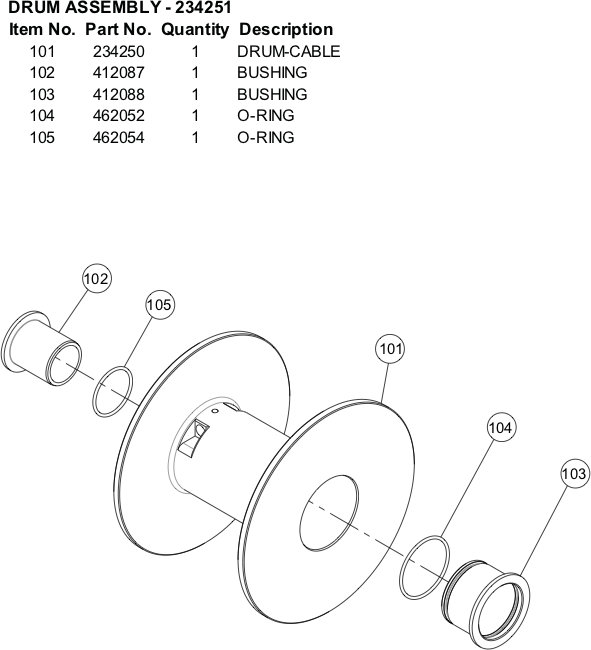

Ramsey Winch HDP-35000 Drum Parts DiagramRamsey Winch HDP-35000 Parts List
Tap or Click Images to Zoom

Ramsey Winch HDP-35000 Cable Tensioner Parts Diagram

QUAD RING
QUAD RING
$9.43 $11.50
SKU 462013
KEY-RD ENDS 5/16 X 5/16 X 1.5LG
KEY-RD ENDS 5/16 X 5/16 X 1.5LG
$14.97 $18.25
SKU 342081
PIVOT PIN, CABLE TENSIONER, RPH20/50
PIVOT PIN, CABLE TENSIONER, RPH20/50
$79.75 $97.25
SKU 346046
AIR TENSIONER BRACKET
AIR TENSIONER BRACKET
$144.32 $176.00
SKU 408362
DRUM BUSHING, MOTOR END, RPH-30,000
DRUM BUSHING, MOTOR END, RPH-30,000
$322.26 $393.00
SKU 412087
CAPSCREW 3/8-16NC X 3/4 LG
CAPSCREW 3/8-16NC X 3/4 LG
$1.23 $1.50
SKU 414278
CAPSCREW 3/8-16NC X 1 1/4
CAPSCREW 3/8-16NC X 1 1/4
$1.23 $1.50
SKU 414316
CAPSCREW
CAPSCREW
$4.72 $5.75
SKU 414595
CAPSCREW 1/2-13NC X 1 1/4 LG
CAPSCREW 1/2-13NC X 1 1/4 LG
$3.49 $4.25
SKU 414948
SETSCREW 3/8-16NC X 1/2
SETSCREW 3/8-16NC X 1/2
$2.26 $2.75
SKU 416059
HEX NUT-1/2-13NC
HEX NUT-1/2-13NC
$2.26 $2.75
SKU 418069
LOCKWASHER 3/8
LOCKWASHER 3/8
$1.23 $1.50
SKU 418177
LOCKWASHER 3/4 ID
LOCKWASHER 3/4 ID
$2.26 $2.75
SKU 418249
SHOULDER BOLT
SHOULDER BOLT
$8.20 $10.00
SKU 418453
COTTER PIN 1/8DIA X 1 LG
COTTER PIN 1/8DIA X 1 LG
$1.23 $1.50
SKU 424005
FITTING 7/16-20 90 degree
FITTING 7/16-20 90 degree
$17.63 $21.50
SKU 432018
AIR FITTING, 90 DEG. ELBOW
AIR FITTING, 90 DEG. ELBOW
$6.77 $8.25
SKU 432033
Ramsey Winch Parts
SPRING-AIR, FOR CABLE TENSIONER, ENIDINE YI-1S4-007
$282.90 $345.00
SKU 433029
RELIEF FITTING -1/8-27PFT
RELIEF FITTING -1/8-27PFT
$5.54 $6.75
SKU 456008
HYDRAULIC MOTOR, TWO SPEED 2000 SERIES 11.9 CU IN DISPLACEMENT RPH35000
HYDRAULIC MOTOR, TWO SPEED 2000 SERIES 11.9 CU IN DISPLACEMENT RPH35000
$2,581.36 $3,148.00
SKU 458126
QUAD-RING
QUAD-RING
$4.72 $5.75
SKU 462050
REDUCER 1/2-1/8 NPTF
REDUCER 1/2-1/8 NPTF
$10.25 $12.50
SKU 468004
RING-RETAINING, TRUARC 5100-350
RING-RETAINING, TRUARC 5100-350
$11.48 $14.00
SKU 490067
SPRING
SPRING
$6.77 $8.25
SKU 494140
MOTOR CONTROL VALVE
MOTOR CONTROL VALVE
$1,252.96 $1,528.00
SKU 516011
MOTOR CONTROL VALVE
MOTOR CONTROL VALVE
$2,200.88 $2,684.00
SKU 516025
