Ramsey Hydraulic Worm Gear Winch Parts

Ramsey Winch Hydraulic H-930 Parts

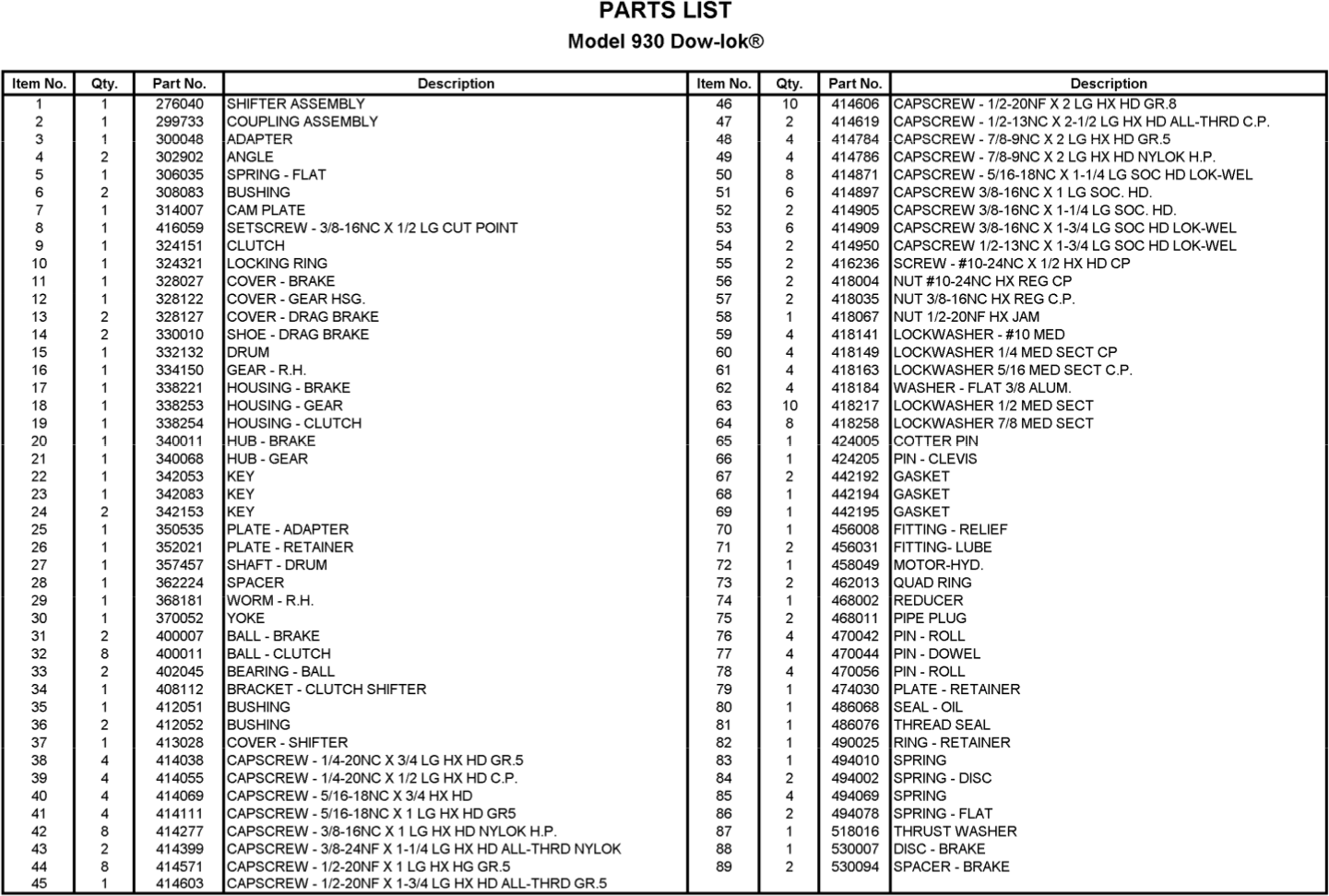

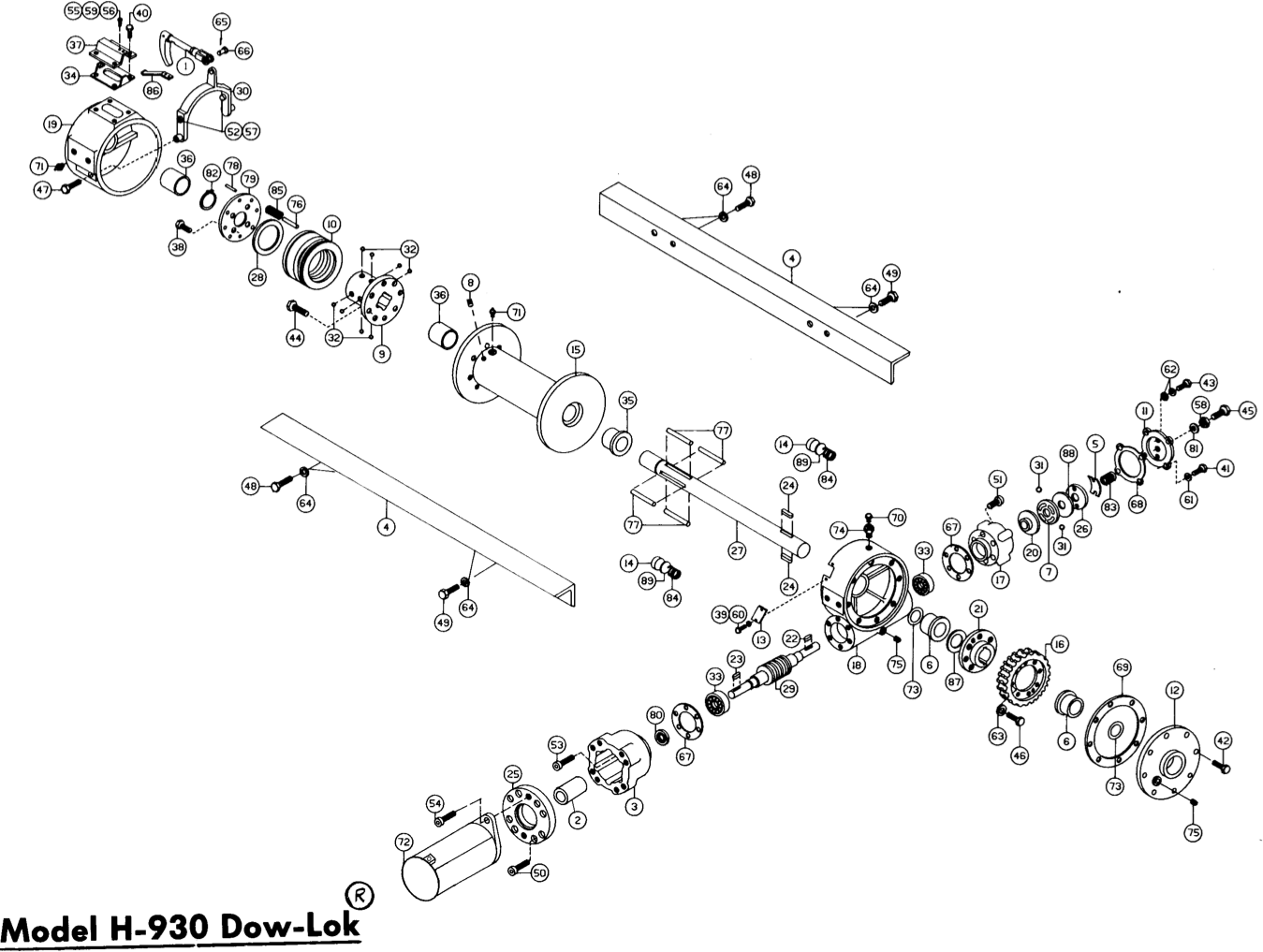

Ramsey Winch Hydraulic H-930 Parts DiagramRamsey Winch Hydraulic H-930 Parts List
Tap or Click Images to Zoom

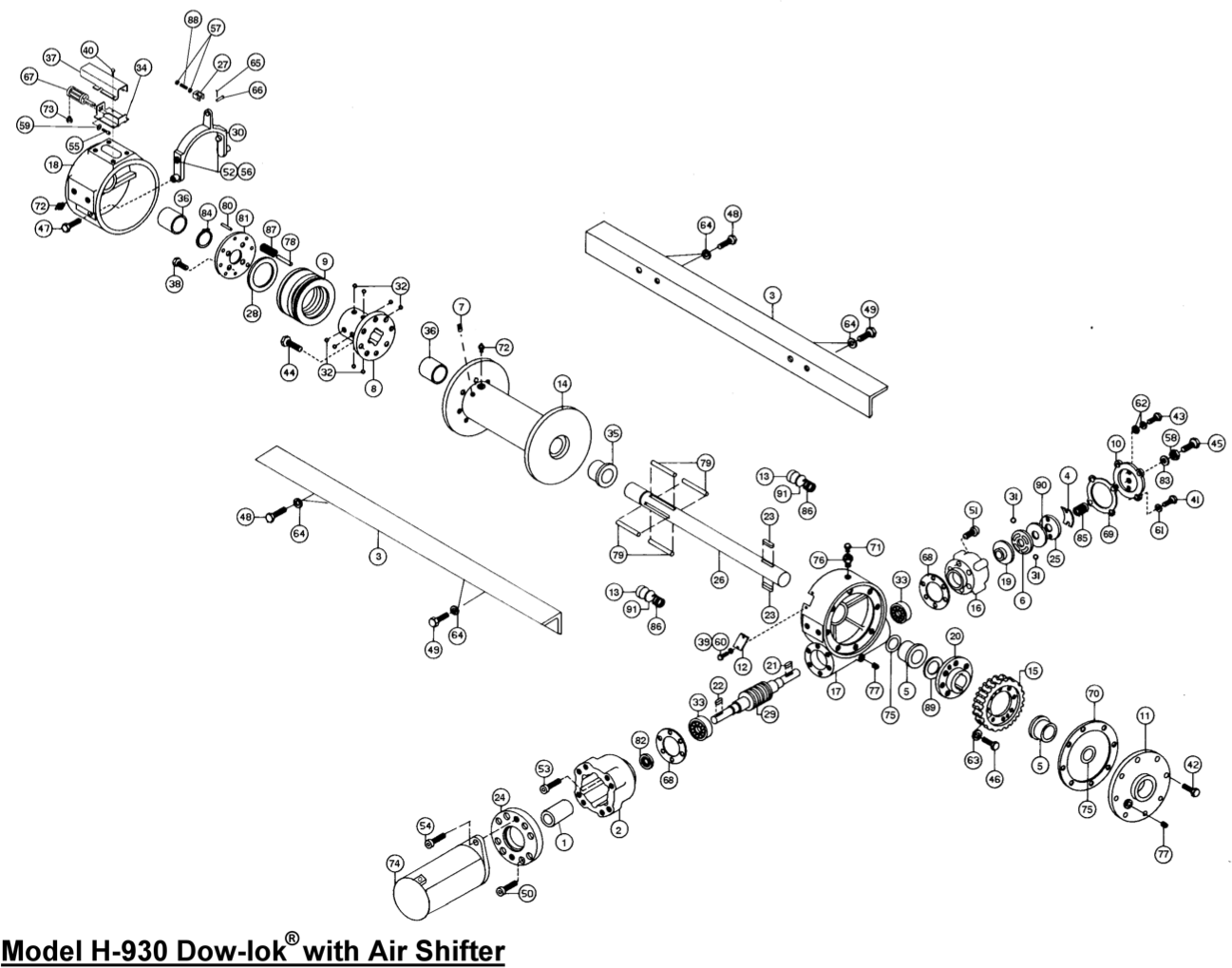

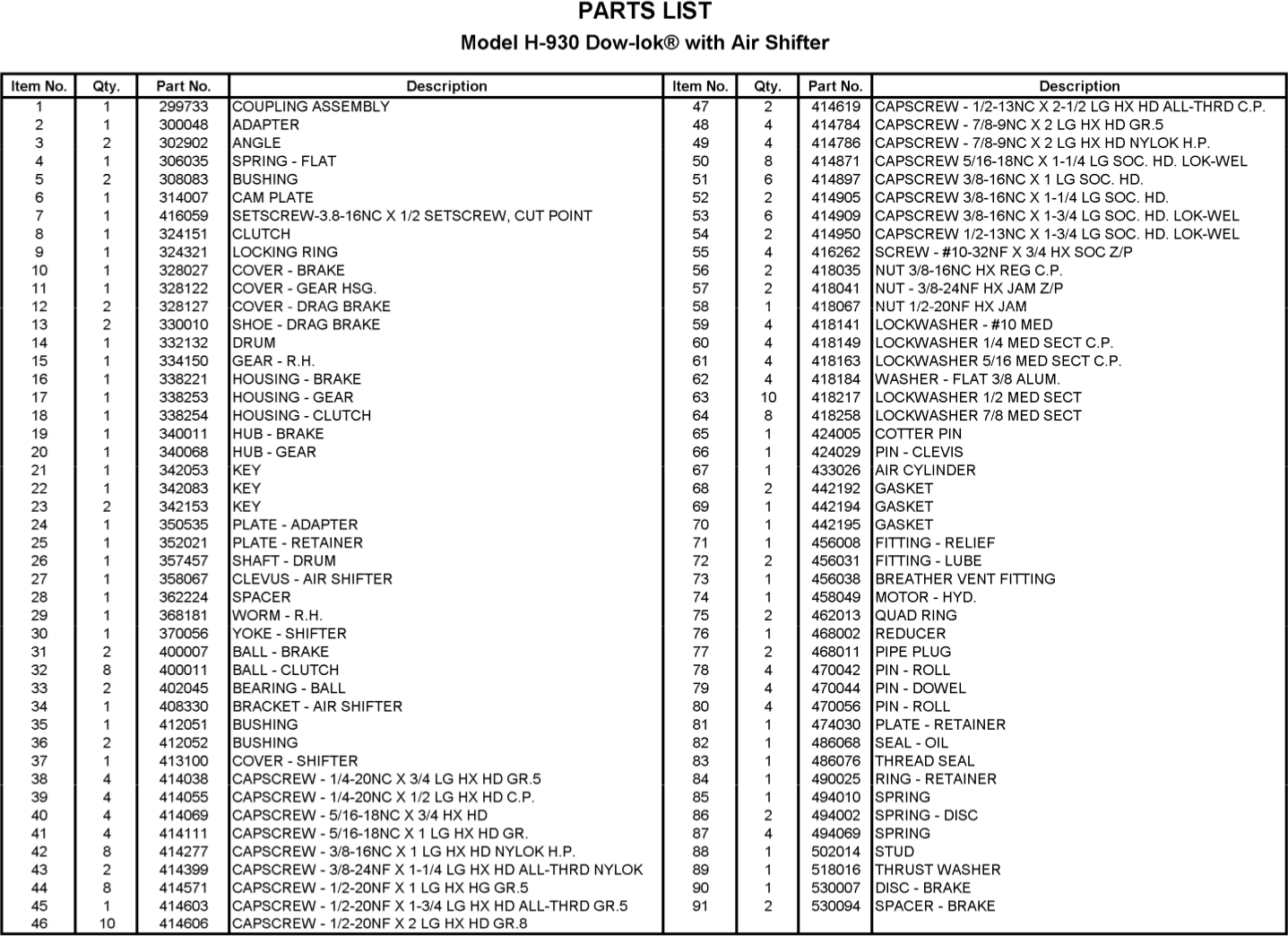

Ramsey Winch Hydraulic H-930 Parts Dow-Lok DiagramRamsey Winch Hydraulic H-930 Parts Dow-Lok List
Tap or Click Images to Zoom
Ramsey Drag Brake
Average rating:
average rating 80%
Ramsey Drag Brake
$16.20 $19.75
SKU 330010
no image available
Capscrew 1/4-20unc x 3/4 LG HX HD GR5 Z/P
$1.80 $2.25
SKU 414038
no image available
PIPE PLUG
$6.20 $7.75
SKU 468011
Out Of Stock - Call For Availability
SPRING
SPRING
$55.76 $68.00
SKU 306035
RAMSEY SPRING 494002
Average rating:
average rating 100%
RAMSEY SPRING 494002
$6.77 $8.25
SKU 494002
BREATHER
BREATHER
$5.20 $6.50
SKU 456038
BALL BEARING
BALL BEARING
$36.90 $45.00
SKU 402045
QUAD RING
QUAD RING
$9.43 $11.50
SKU 462013
RAMSEY BUSHING-GH, O-RING GRV,800, PURCH FIN
RAMSEY BUSHING-GH, O-RING GRV,800, PURCH FIN
$177.12 $216.00
SKU 308083
LEVER SHIFTER ASSEMBLY MOD 930
LEVER SHIFTER ASSEMBLY MOD 930
$383.76 $468.00
SKU 276040
MOTOR COUPLING ASSEMBLY, H700 & H800
MOTOR COUPLING ASSEMBLY, H700 & H800
$205.82 $251.00
SKU 299733
ADAPTER-CHAR2000&ROSSMAB,H800,HR20
ADAPTER-CHAR2000&ROSSMAB,H800,HR20
$936.44 $1,142.00
SKU 300048
CAM PLATE-BRK 700/800/R15-R30/8620 HR
CAM PLATE-BRK 700/800/R15-R30/8620 HR
$223.04 $272.00
SKU 314007
CLUTCH-DOW-LOK, 800, R30, FM
CLUTCH-DOW-LOK, 800, R30, FM
$544.48 $664.00
SKU 324151
Ramsey Winch Parts
BRAKE COVER
$198.44 $242.00
SKU 328027
CABLE DRUM, MOD 930, DOW-L
CABLE DRUM, MOD 930, DOW-L
$2,021.30 $2,465.00
SKU 332132
RING GEAR, RH, W/MOD 930 DOW-L WINCH
RING GEAR, RH, W/MOD 930 DOW-L WINCH
$1,106.18 $1,349.00
SKU 334150
HOUSING-WM BRK, 700, 800 & R15 THRU R30
HOUSING-WM BRK, 700, 800 & R15 THRU R30
$440.34 $537.00
SKU 338221
BRAKE HUB J10, J20, 700
BRAKE HUB J10, J20, 700
$338.66 $413.00
SKU 340011
KEY-RD ENDS 1/4X1/4X1 1/2LG C1018CF
KEY-RD ENDS 1/4X1/4X1 1/2LG C1018CF
$21.94 $26.75
SKU 342053
KEY-RD ENDS 5/16 X 5/16 X 1 7/8 LG
KEY-RD ENDS 5/16 X 5/16 X 1 7/8 LG
$19.68 $24.00
SKU 342083
KEY-ROUND ENDS
KEY-ROUND ENDS
$25.22 $30.75
SKU 342153
PLATE-HYD ADAP,W/2000CHARL,W/300048
PLATE-HYD ADAP,W/2000CHARL,W/300048
$378.02 $461.00
SKU 350535
RETAINER PLATE-700/800/R15-R30/8620
RETAINER PLATE-700/800/R15-R30/8620
$154.16 $188.00
SKU 352021
DRUM SHAFT MOD 930 2 1/2 X 27.03 LG
DRUM SHAFT MOD 930 2 1/2 X 27.03 LG
$695.36 $848.00
SKU 357457
Ramsey Winch Parts
SPACER-DRUM,800&R-30,D-L,1020CD DOM
$12.92 $15.75
SKU 362224
WORM-RH, SL, W/NEW WORM BRAKE, MODEL 930
WORM-RH, SL, W/NEW WORM BRAKE, MODEL 930
$1,299.70 $1,585.00
SKU 368181
SHIFTER YOKE, DOW LOK, H930R
SHIFTER YOKE, DOW LOK, H930R
$186.14 $227.00
SKU 370056
BALL-1/2 DIA CHROME STEEL
BALL-1/2 DIA CHROME STEEL
$3.49 $4.25
SKU 400007
BALL-3/4 DIA,AISI E52100 CHROME STL
BALL-3/4 DIA,AISI E52100 CHROME STL
$3.49 $4.25
SKU 400011
BUSHING
BUSHING
$104.14 $127.00
SKU 412052
COVER-DOW LOK CLUTCH, AIR SHIFTER, H930R
COVER-DOW LOK CLUTCH, AIR SHIFTER, H930R
$59.04 $72.00
SKU 413100
CAPSCREW-5/16-18NC X 1LG
CAPSCREW-5/16-18NC X 1LG
$2.26 $2.75
SKU 414111
BOLT 3/8-16NC X 1
BOLT 3/8-16NC X 1
$1.23 $1.50
SKU 414277
BOLT 3/8-NF X 1.25
BOLT 3/8-NF X 1.25
$3.49 $4.25
SKU 414399
CAPSCREW 1/2-20NF X 1 LG, HEX HD
CAPSCREW 1/2-20NF X 1 LG, HEX HD
$2.26 $2.75
SKU 414571
CAPSCREW 1/2-20NF X 1 3/4
CAPSCREW 1/2-20NF X 1 3/4
$5.54 $6.75
SKU 414603
CAPSCREW-1/2-20NF X 2 LG ,HXHD,GR-8
CAPSCREW-1/2-20NF X 2 LG ,HXHD,GR-8
$2.26 $2.75
SKU 414606
BOLT-1/2-13NCX2.5,HXHD,ALL-THD,GR-5
BOLT-1/2-13NCX2.5,HXHD,ALL-THD,GR-5
$4.72 $5.75
SKU 414619
SCREW 5/16-18NC X 1-1/4
SCREW 5/16-18NC X 1-1/4
$3.49 $4.25
SKU 414871
CAPSCREW
CAPSCREW
$2.26 $2.75
SKU 414897
SCREW 3/8-16NC X 1-3/4
SCREW 3/8-16NC X 1-3/4
$8.20 $10.00
SKU 414909
SCREW 1/2-13NC X 1-3/4
SCREW 1/2-13NC X 1-3/4
$8.20 $10.00
SKU 414950
SETSCREW 3/8-16NC X 1/2
SETSCREW 3/8-16NC X 1/2
$2.26 $2.75
SKU 416059
SCREW-#10-32NF X 3/4
SCREW-#10-32NF X 3/4
$1.23 $1.50
SKU 416262
NUT-HEX #10-24NC REG
NUT-HEX #10-24NC REG
$0.80 $1.00
SKU 418004
NUT-3/8-16NC HEX REG ZINC PLATED
NUT-3/8-16NC HEX REG ZINC PLATED
$1.23 $1.50
SKU 418035
NUT-1/2-20NF HEX JAM
NUT-1/2-20NF HEX JAM
$2.26 $2.75
SKU 418067
LOCKWASHER 1/4
LOCKWASHER 1/4
$2.80 $3.50
SKU 418149
LOCKWASHER 5/16
LOCKWASHER 5/16
$1.80 $2.25
SKU 418163
WASHER 3/8ID X 5/8 OD X 1/16
WASHER 3/8ID X 5/8 OD X 1/16
$0.80 $1.00
SKU 418184
LOCKWASHER 1/2
LOCKWASHER 1/2
$1.23 $1.50
SKU 418217
COTTER PIN 1/8DIA X 1 LG
COTTER PIN 1/8DIA X 1 LG
$1.23 $1.50
SKU 424005
CLEVIS PIN 1/2 X 1 23/64LG
CLEVIS PIN 1/2 X 1 23/64LG
$4.72 $5.75
SKU 424205
AIR CYLINDER CLUTCH DISENGAGE H930 DOW LOK
AIR CYLINDER CLUTCH DISENGAGE H930 DOW LOK
$322.26 $393.00
SKU 433026
Ramsey Winch Parts
GASKET-BRG CAP
$3.49 $4.25
SKU 442192
Ramsey Winch Parts
GASKET-BRK COV
$6.77 $8.25
SKU 442194
GASKET-GH COV
GASKET-GH COV
$17.63 $21.50
SKU 442195
RELIEF FITTING -1/8-27PFT
RELIEF FITTING -1/8-27PFT
$10.00 $12.50
SKU 456008
LUBE FITTING
LUBE FITTING
$3.49 $4.25
SKU 456031
HYDRAULIC MOTOR CHAR-LYNN
HYDRAULIC MOTOR CHAR-LYNN
$1,705.60 $2,080.00
SKU 458049
3/8-1/8 NPTF GEN.PLUG
3/8-1/8 NPTF GEN.PLUG
$5.20 $6.50
SKU 468002
ROLL PIN-1/4 DIA X 1 3/4 LG
ROLL PIN-1/4 DIA X 1 3/4 LG
$2.26 $2.75
SKU 470042
DOWEL PIN-5/8DIA X 2 1/2LG
DOWEL PIN-5/8DIA X 2 1/2LG
$12.92 $15.75
SKU 470044
ROLL PIN-5/32 X 5/8 LG
ROLL PIN-5/32 X 5/8 LG
$2.26 $2.75
SKU 470056
RETAINER PLATE-, DOW-LOK, 800 R30, 7 GA
RETAINER PLATE-, DOW-LOK, 800 R30, 7 GA
$26.65 $32.50
SKU 474030
OIL SEAL DOUBLE LIP
OIL SEAL DOUBLE LIP
$23.17 $28.25
SKU 486068
SEAL
SEAL
$6.77 $8.25
SKU 486076
Ramsey
RETAINER RING
$5.54 $6.75
SKU 490025
SPRING
SPRING
$6.77 $8.25
SKU 494010
COMPRESSION SPRING
COMPRESSION SPRING
$4.72 $5.75
SKU 494069
SHIFTER SPRING-RETAINER
SHIFTER SPRING-RETAINER
$35.26 $43.00
SKU 494078
Ramsey Winch Parts
THRUST WASHER-GH,800,R30,ASTM A-569
$18.45 $22.50
SKU 518016
Ramsey Winch Parts
THRUST PLATE, WM BRK
$44.08 $53.75
SKU 530007
Ramsey Winch Parts
SPACER BRK DISC 20GA X 7/8 D
$2.26 $2.75
SKU 530094
