Ramsey Planetary Electric Winch Parts

Ramsey Winch Patriot 15000 Parts

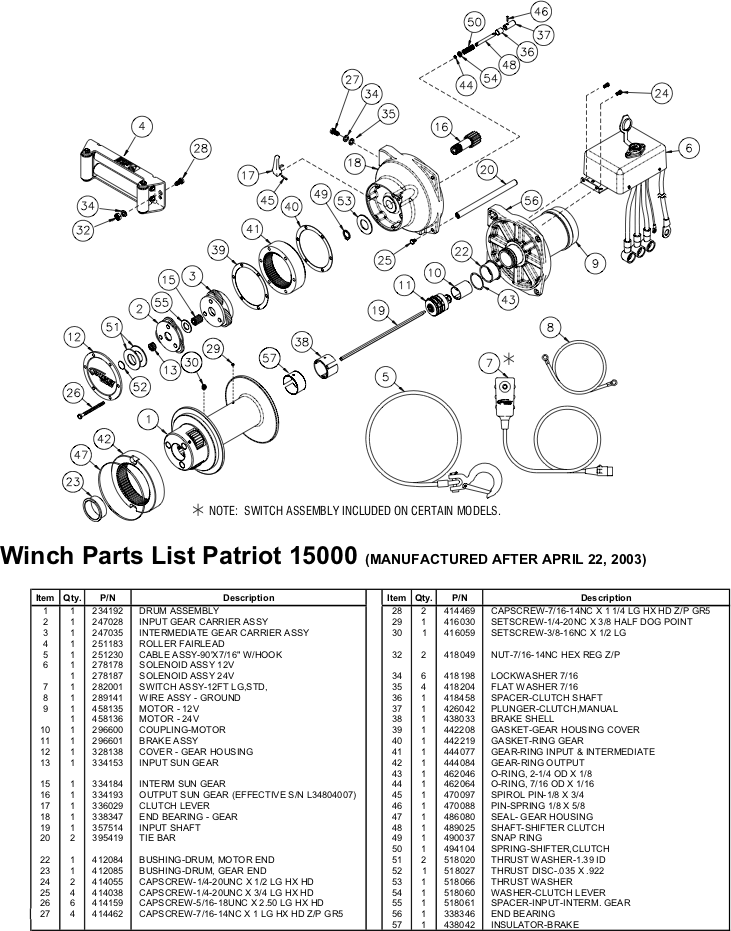

Ramsey Winch Patriot 15000 Parts DiagramRamsey Winch Patriot 15000 Solenoid Parts Diagram List
Tap or Click Images to Zoom
Ramsey INSULATOR-BRAKE, PATRIOT 12000/15000 & PATRIOT PROFILE 12000
BRAKE INSULATOR
$5.54 $6.75
SKU 438042
Ramsey Winch
12v Motor
$428.86 $523.00
SKU 458135
no image available
Capscrew 1/4-20unc x 3/4 LG HX HD GR5 Z/P
$2.26 $2.75
SKU 414038
CONNECTOR - FEMALE
CONNECTOR - FEMALE
$27.88 $34.00
SKU 430022
CARRIER GEAR ASSEMBLY, INPUT, PAT 15000
CARRIER GEAR ASSEMBLY, INPUT, PAT 15000
$64.78 $79.00
SKU 247028
GEAR CARRIER-INTERMEDIATE, PATRIOT 15000
GEAR CARRIER-INTERMEDIATE, PATRIOT 15000
$326.36 $398.00
SKU 247035
ASSEMBLY-SOLENOID, 12V PATRIOT 15000
ASSEMBLY-SOLENOID, 12V PATRIOT 15000
$278.80 $340.00
SKU 278178
SWITCH ASSEMBLY-12FT LG
SWITCH ASSEMBLY-12FT LG
$89.38 $109.00
SKU 282001
BATTERY WIRE ASSY
BATTERY WIRE ASSY
$60.07 $73.25
SKU 289015
WIRE ASSEMBLY GROUND
WIRE ASSEMBLY GROUND
$67.04 $81.75
SKU 289141
ASSEMBLY BRAKE, PATRIOT 15000
ASSEMBLY BRAKE, PATRIOT 15000
$592.04 $722.00
SKU 296601
Ramsey Winch Parts
GEAR COVER HOUSING, PRO-9000
$130.38 $159.00
SKU 328138
INPUT GEAR 12-TOOTH
INPUT GEAR 12-TOOTH
$8.00 $9.75
SKU 334153
SECONDARY GEAR SUN PATRIOT 15000
SECONDARY GEAR SUN PATRIOT 15000
$17.22 $21.00
SKU 334184
OUTPUT GEAR PATRIOT 15000
OUTPUT GEAR PATRIOT 15000
$82.00 $100.00
SKU 334193
LEVER-CLUTCH, PATRIOT 15000
LEVER-CLUTCH, PATRIOT 15000
$39.16 $47.75
SKU 336029
Ramsey Winch Parts
INPUT SHAFT
$28.70 $35.00
SKU 357514
BUSHING DRUM MOTOR END
BUSHING DRUM MOTOR END
$27.88 $34.00
SKU 412084
DRUM BUSHING GEAR END
DRUM BUSHING GEAR END
$19.68 $24.00
SKU 412085
COVER-SOLENOID, PATRIOT 15,000
COVER-SOLENOID, PATRIOT 15,000
$69.50 $84.75
SKU 413094
CAPSCREW 7/16-14NC X 1LG
CAPSCREW 7/16-14NC X 1LG
$2.26 $2.75
SKU 414462
CAPSCREW 7/16-14NC X 1 1/4LG
CAPSCREW 7/16-14NC X 1 1/4LG
$2.26 $2.75
SKU 414469
SCREW SS-1/4-20NC X 3/8
SCREW SS-1/4-20NC X 3/8
$4.72 $5.75
SKU 416030
SETSCREW 3/8-16NC X 1/2
SETSCREW 3/8-16NC X 1/2
$2.26 $2.75
SKU 416059
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
$1.23 $1.50
SKU 416227
SCREW #10-24NC X 3/8
SCREW #10-24NC X 3/8
$1.23 $1.50
SKU 416239
NUT-HEX #10-24NC REG
NUT-HEX #10-24NC REG
$2.26 $2.75
SKU 418004
NUT 7/16-14NC HEX
NUT 7/16-14NC HEX
$3.49 $4.25
SKU 418049
LOCKWASHER 7/16
LOCKWASHER 7/16
$1.23 $1.50
SKU 418198
WASHER 7/16
WASHER 7/16
$1.23 $1.50
SKU 418204
CLUTCH PLUNGER MANUAL SHIFT RPH8000
CLUTCH PLUNGER MANUAL SHIFT RPH8000
$13.74 $16.75
SKU 426042
SHELL-DISC BRAKE
SHELL-DISC BRAKE
$46.33 $56.50
SKU 438033
STRAP-COPPER,PRO PLUS
STRAP-COPPER,PRO PLUS
$3.49 $4.25
SKU 440260
SOLENOID-12V
SOLENOID-12V
$36.08 $44.00
SKU 440262
SOLENOID-24V
SOLENOID-24V
$36.90 $45.00
SKU 440265
ASSY-WIRE, GROUND
ASSY-WIRE, GROUND
$19.68 $24.00
SKU 440276
GASKET-GH CVR,.031THK
GASKET-GH CVR,.031THK
$3.49 $4.25
SKU 442208
RING GEAR GASKET
RING GEAR GASKET
$2.05 $2.50
SKU 442219
MOTOR 24V DC, 3.6 H.P., FOR PATRIOT 15000
MOTOR 24V DC, 3.6 H.P., FOR PATRIOT 15000
$537.92 $656.00
SKU 458136
O-RING 1/8X2 1/4 OD X 2, AS-568-226
O-RING 1/8X2 1/4 OD X 2, AS-568-226
$2.26 $2.75
SKU 462046
PIN-SPRING 1/8 X.75
PIN-SPRING 1/8 X.75
$1.23 $1.50
SKU 470097
COVER FEMALE RECEPTACLE
COVER FEMALE RECEPTACLE
$6.77 $8.25
SKU 482029
SEAL-GH
SEAL-GH
$24.40 $29.75
SKU 486080
Ramsey Winch
SNAP RING
$2.26 $2.75
SKU 490037
Ramsey Winch Parts
THRUST WASHER-1.39 ID,PLAS,DC PLANE
$3.49 $4.25
SKU 518020
Ramsey Winch Parts
THRUST DISC-.035X.922DIA/ALL PLANET
$2.26 $2.75
SKU 518027
