Ramsey Planetary Electric Winch Parts

Ramsey Winch Patriot 9500 UT Parts

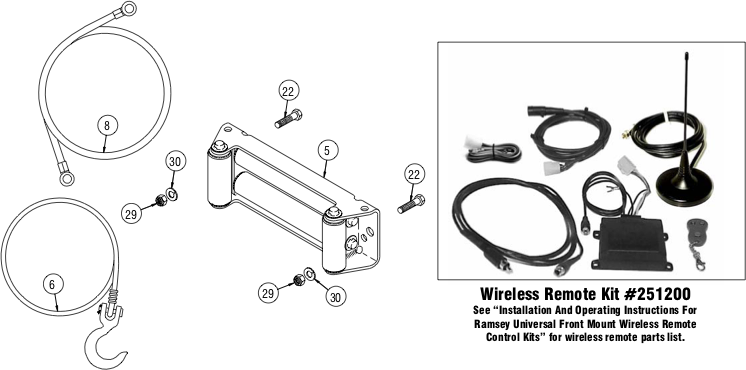

Ramsey Winch Patriot 9500 UT Parts DiagramRamsey Winch Patriot 9500 Solenoid Parts Diagram
Tap or Click Images to Zoom

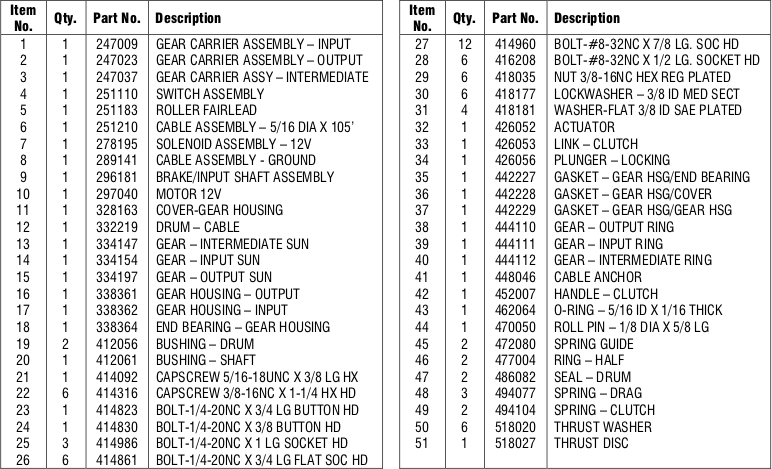

Ramsey Winch Patriot 9500 UT Parts List

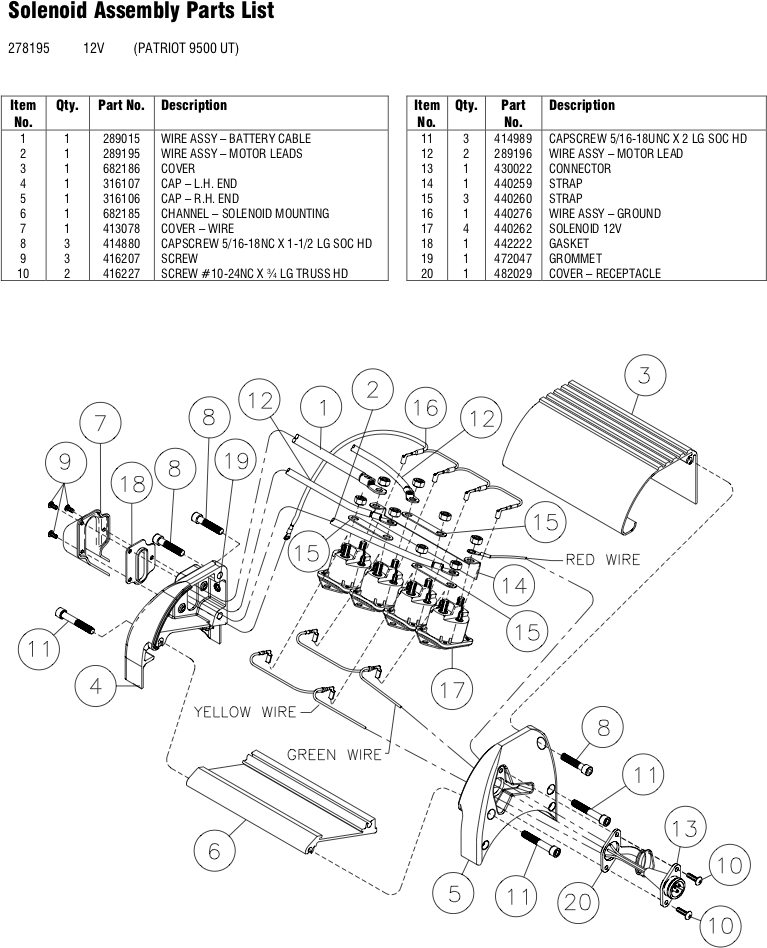

Ramsey Winch Patriot 9500 UT Solenoid Parts Diagram

CONNECTOR - FEMALE
CONNECTOR - FEMALE
$27.88 $34.00
SKU 430022
Ramsey Winch Parts
GEAR CARRIER ASSEMBLY-INPUT, REP24-8000
$130.38 $159.00
SKU 247009
Ramsey Winch Parts
GEAR CARRIER ASSY-OUTPUT, PRO-9000
$307.50 $375.00
SKU 247023
Rasmey
KIT-105' X 5/16, 7X19AC W 3/8 HK
$199.26 $243.00
SKU 251210
BATTERY WIRE ASSY
BATTERY WIRE ASSY
$60.07 $73.25
SKU 289015
WIRE ASSEMBLY GROUND
WIRE ASSEMBLY GROUND
$67.04 $81.75
SKU 289141
BRAKE ASSEMBLY
BRAKE ASSEMBLY
$131.20 $160.00
SKU 296181
INTERM GEAR / SUN,H/T #682061, REP-8000
INTERM GEAR / SUN,H/T #682061, REP-8000
$16.20 $19.75
SKU 334147
INPUT GEAR
INPUT GEAR
$13.33 $16.25
SKU 334154
Ramsey Winch Parts
OUTPUT GEAR
$33.42 $40.75
SKU 334197
DRUM BUSHING
DRUM BUSHING
$6.77 $8.25
SKU 412056
SHAFT BUSHING
SHAFT BUSHING
$5.54 $6.75
SKU 412061
Ramsey Winch
SOLENOID WIRE COVER, PRO PLUS SERIES # 16049D
$11.48 $14.00
SKU 413078
CAPSCREW 3/8-16NC X 1 1/4
CAPSCREW 3/8-16NC X 1 1/4
$1.23 $1.50
SKU 414316
BOLT 1/4-20NC X 3/4LG
BOLT 1/4-20NC X 3/4LG
$1.23 $1.50
SKU 414823
CAPSCREW 1/4-20NC X 3/8
CAPSCREW 1/4-20NC X 3/8
$1.23 $1.50
SKU 414830
BOLT 1/4 X 20NC X 3/4 NY-LOK
BOLT 1/4 X 20NC X 3/4 NY-LOK
$2.26 $2.75
SKU 414861
CAPSCREW-5/16-18NC X 1 1/2
CAPSCREW-5/16-18NC X 1 1/2
$2.26 $2.75
SKU 414880
SCREW #8-32NC X 3/8
SCREW #8-32NC X 3/8
$1.23 $1.50
SKU 416207
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
$1.23 $1.50
SKU 416227
NUT-3/8-16NC HEX REG ZINC PLATED
NUT-3/8-16NC HEX REG ZINC PLATED
$1.23 $1.50
SKU 418035
LOCKWASHER 3/8
LOCKWASHER 3/8
$1.23 $1.50
SKU 418177
WASHER 3/8 ID
WASHER 3/8 ID
$1.23 $1.50
SKU 418181
STRAP-COPPER, PRO PLUS
STRAP-COPPER, PRO PLUS
$10.25 $12.50
SKU 440259
STRAP-COPPER,PRO PLUS
STRAP-COPPER,PRO PLUS
$3.49 $4.25
SKU 440260
SOLENOID-12V
SOLENOID-12V
$36.08 $44.00
SKU 440262
ASSY-WIRE, GROUND
ASSY-WIRE, GROUND
$19.68 $24.00
SKU 440276
SELF ENGAGING CLUTCH
SELF ENGAGING CLUTCH
$150.88 $184.00
SKU 444110
RING GEAR
RING GEAR
$45.33 $52.98
SKU 444111
SELF ENGAGING CLUTCH RING GEAR INTERMEDIATE
SELF ENGAGING CLUTCH RING GEAR INTERMEDIATE
$49.57 $57.15
SKU 444112
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
$10.25 $12.50
SKU 448046
ROLL PIN-1/8 DIA X 5/8 LG
ROLL PIN-1/8 DIA X 5/8 LG
$1.23 $1.50
SKU 470050
HALF RING, INPUT FRICTION, W/REP-8000
HALF RING, INPUT FRICTION, W/REP-8000
$8.61 $10.50
SKU 477004
COVER FEMALE RECEPTACLE
COVER FEMALE RECEPTACLE
$6.77 $8.25
SKU 482029
RING GEAR SPRING
RING GEAR SPRING
$2.26 $2.75
SKU 494077
Ramsey Winch Parts
THRUST WASHER-1.39 ID,PLAS,DC PLANE
$3.49 $4.25
SKU 518020
Ramsey Winch Parts
THRUST DISC-.035X.922DIA/ALL PLANET
$2.26 $2.75
SKU 518027
