Ramsey Winch Patriot Profile 8000 Parts

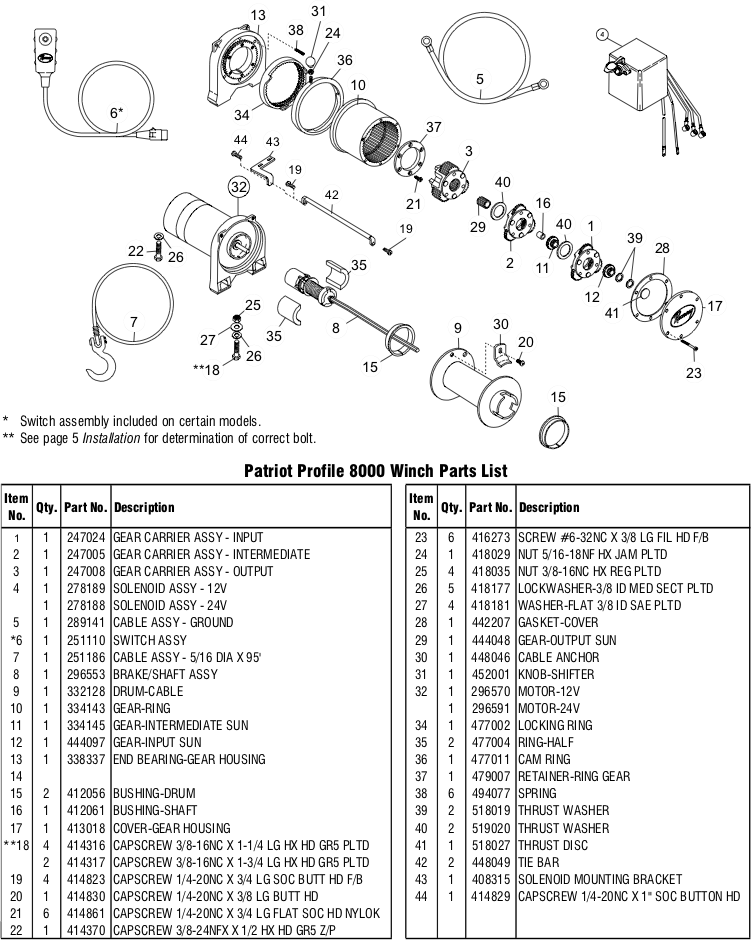

Ramsey Winch Patriot Profile 8000 Parts DiagramRamsey Winch Patriot Profile 8000 Solenoid Parts Diagram
Tap or Click Images to Zoom
Ramsey Winch Parts
GEAR CARRIER ASSEMBLY-INTERMED/DC PLANE
$143.50 $175.00
SKU: 247005
Ramsey Winch Parts
GEAR CARRIER ASSEMBLY-OUTPUT, REP-8000
$270.60 $330.00
SKU: 247008
Ramsey Winch Parts
INPUT GEAR CARRIER ASSEMBLY
$98.40 $120.00
SKU: 247024
ramsey-no-pic
BATTERY WIRE ASSY
$52.69 $64.25
SKU: 289015
ramsey-no-pic
WIRE ASSY-4.5LG,#6GA GPT BLK,2-TERM
$10.05 $12.25
SKU: 289077
ramsey-no-pic
WIRE ASSEMBLY GROUND
$58.84 $71.75
SKU: 289141
ramsey-no-pic
WIRE ASSEMBLY MOTOR LEAD
$22.14 $26.05
SKU: 289170
ramsey-no-pic
BRAKE ASSY PRO+6/8, 4.8HP MOTOR
$79.13 $96.50
SKU: 296553
Ramsey Winch Parts
MOTOR-END BRG, 4.8HP, W/GROUND
$642.31 $783.30
SKU: 296570
ramsey-no-pic
SOLENOID COVER ASSEMBLY
$100.04 $122.00
SKU: 296594
ramsey-no-pic
CABLE DRUM
$273.06 $333.00
SKU: 332128
ramsey-no-pic
RING GEAR
$189.42 $231.00
SKU: 334143
ramsey-no-pic
GEAR-INTERM/SUN,H/T#682051/REP-6000
$11.28 $13.75
SKU: 334145
ramsey-no-pic
DRUM BUSHING
$5.95 $7.25
SKU: 412056
ramsey-no-pic
SHAFT BUSHING
$4.92 $6.00
SKU: 412061
ramsey-no-pic
GEAR HOUSING COVER
$14.15 $17.25
SKU: 413018
ramsey-no-pic
CAPSCREW 3/8-16NC X 1 1/4
$1.01 $1.25
SKU: 414316
ramsey-no-pic
BOLT 1/4-20NC X 3/4LG
$1.01 $1.25
SKU: 414823
ramsey-no-pic
BOLT 1/4-20NC X 1
$1.01 $1.25
SKU: 414829
ramsey-no-pic
CAPSCREW 1/4-20NC X 3/8
$1.01 $1.25
SKU: 414830
ramsey-no-pic
BOLT 1/4 X 20NC X 3/4 NY-LOK
$2.03 $2.50
SKU: 414861
ramsey-no-pic
SCREW-#10-24NC X 1/2LG
$2.03 $2.50
SKU: 416216
ramsey-no-pic
SCREW ASM-#6-32NC X 3/8
$2.03 $2.50
SKU: 416273
ramsey-no-pic
NUT 1/4-20NC
$1.01 $1.25
SKU: 418014
ramsey-no-pic
NUT 5/16-24NF HEX JAM
$2.03 $2.50
SKU: 418029
ramsey-no-pic
NUT-3/8-16NC HEX REG ZINC PLATED
$1.01 $1.25
SKU: 418035
ramsey-no-pic
LOCKWASHER 1/4
$1.01 $1.25
SKU: 418149
ramsey-no-pic
LOCKWASHER 3/8
$1.01 $1.25
SKU: 418177
ramsey-no-pic
WASHER 3/8 ID
$1.01 $1.25
SKU: 418181
ramsey-no-pic
SPACER SOLENIOD BRACKET
$3.08 $3.75
SKU: 418514
ramsey-no-pic
STRAP-COPPER,PRO PLUS
$3.08 $3.75
SKU: 440260
ramsey-no-pic
SOLENOID-12V
$31.57 $38.50
SKU: 440262
ramsey-no-pic
SOLENOID-24V
$32.39 $39.50
SKU: 440265
ramsey-no-pic
GASKET-GH COVER
$2.03 $2.50
SKU: 442207
ramsey-no-pic
OUTPUT GEAR
$25.22 $30.75
SKU: 444048
ramsey-no-pic
INPUT GEAR
$10.05 $12.25
SKU: 444097
ramsey-no-pic
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
$9.02 $11.00
SKU: 448046
ramsey-no-pic
TIE BAR-REP-6&8,CHROME
$37.52 $45.75
SKU: 448049
ramsey-no-pic
KNOB-LEVER GRAY
$11.28 $13.75
SKU: 452001
ramsey-no-pic
LOCKING RING - RING GEAR
$37.52 $45.75
SKU: 477002
ramsey-no-pic
HALF RING, INPUT FRICTION, W/REP-8000
$7.59 $9.25
SKU: 477004
ramsey-no-pic
CAM RING
$40.59 $49.50
SKU: 477011
ramsey-no-pic
RETAINER RING GEAR
$10.05 $12.25
SKU: 479007
ramsey-no-pic
RING GEAR SPRING
$2.03 $2.50
SKU: 494077
Ramsey Winch Parts
THRUST WASHER-.50 ID,FIBER GLASS,PL
$2.03 $2.50
SKU: 518019
Ramsey Winch Parts
THRUST DISC-.035X.922DIA/ALL PLANET
$2.03 $2.50
SKU: 518027
