Ramsey Planetary Electric Winch Parts

Ramsey Winch Patriot Profile 9500 Parts

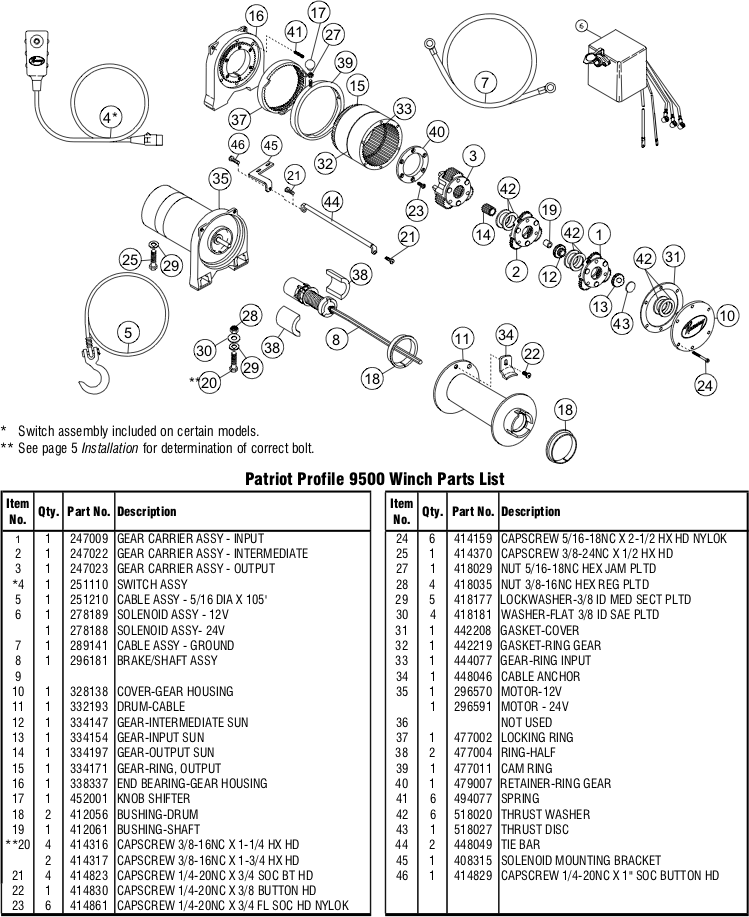

Ramsey Winch Patriot Profile 9500 Parts DiagramRamsey Winch Patriot Profile 9500 Parts List
Tap or Click Images to Zoom
Cover - Patriot 9500
Cover - Patriot 9500
$24.00
SKU 682166
Ramsey Winch Parts
GEAR CARRIER ASSEMBLY-INPUT, REP24-8000
$130.38 $159.00
SKU 247009
Ramsey Winch Parts
GEAR CARRIER ASSY-INTERMEDIATE,PRO9
$130.38 $159.00
SKU 247022
Ramsey Winch Parts
GEAR CARRIER ASSY-OUTPUT, PRO-9000
$307.50 $375.00
SKU 247023
Rasmey
KIT-105' X 5/16, 7X19AC W 3/8 HK
$199.26 $243.00
SKU 251210
BATTERY WIRE ASSY
BATTERY WIRE ASSY
$60.07 $73.25
SKU 289015
WIRE ASSY - 4.5LG, #6GA 2-TERM
WIRE ASSY - 4.5LG, #6GA 2-TERM
$11.48 $14.00
SKU 289077
Ramsey Winch Parts
WIRE ASSEMBLY GROUND
$67.04 $81.75
SKU 289141
WIRE ASSEMBLY MOTOR LEAD
WIRE ASSEMBLY MOTOR LEAD
$26.65 $32.50
SKU 289170
BRAKE ASSEMBLY
BRAKE ASSEMBLY
$131.20 $160.00
SKU 296181
Ramsey Winch Parts
MOTOR-END BRG, 4.8HP, W/GROUND
$697.82 $851.00
SKU 296570
SOLENOID COVER ASSEMBLY
SOLENOID COVER ASSEMBLY
$113.98 $139.00
SKU 296594
Ramsey Winch Parts
GEAR COVER HOUSING, PRO-9000
$130.38 $159.00
SKU 328138
CABLE DRUM, PLATINUM 9000/9500
CABLE DRUM, PLATINUM 9000/9500
$372.28 $454.00
SKU 332193
INTERM GEAR / SUN,H/T #682061, REP-8000
INTERM GEAR / SUN,H/T #682061, REP-8000
$16.20 $19.75
SKU 334147
INPUT GEAR
INPUT GEAR
$13.33 $16.25
SKU 334154
Ramsey Winch Parts
OUTPUT GEAR
$33.42 $40.75
SKU 334197
SOLENOID MOUNTING BRACKET, PATRIOT PROFILE 6/8/9/95
SOLENOID MOUNTING BRACKET, PATRIOT PROFILE 6/8/9/95
$27.88 $34.00
SKU 408315
DRUM BUSHING
DRUM BUSHING
$6.77 $8.25
SKU 412056
SHAFT BUSHING
SHAFT BUSHING
$5.54 $6.75
SKU 412061
CAPSCREW 3/8-16NC X 1 1/4
CAPSCREW 3/8-16NC X 1 1/4
$1.23 $1.50
SKU 414316
BOLT 1/4-20NC X 3/4LG
BOLT 1/4-20NC X 3/4LG
$1.23 $1.50
SKU 414823
BOLT 1/4-20NC X 1
BOLT 1/4-20NC X 1
$1.23 $1.50
SKU 414829
CAPSCREW 1/4-20NC X 3/8
CAPSCREW 1/4-20NC X 3/8
$1.23 $1.50
SKU 414830
BOLT 1/4 X 20NC X 3/4 NY-LOK
BOLT 1/4 X 20NC X 3/4 NY-LOK
$2.26 $2.75
SKU 414861
SCREW-#10-24NC X 1/2LG
SCREW-#10-24NC X 1/2LG
$3.60 $4.50
SKU 416216
NUT 1/4-20NC
NUT 1/4-20NC
$1.23 $1.50
SKU 418014
NUT 5/16-24NF HEX JAM
NUT 5/16-24NF HEX JAM
$2.26 $2.75
SKU 418029
NUT-3/8-16NC HEX REG ZINC PLATED
NUT-3/8-16NC HEX REG ZINC PLATED
$1.23 $1.50
SKU 418035
LOCKWASHER 1/4
LOCKWASHER 1/4
$2.80 $3.50
SKU 418149
LOCKWASHER 3/8
LOCKWASHER 3/8
$1.23 $1.50
SKU 418177
WASHER 3/8 ID
WASHER 3/8 ID
$3.00 $3.75
SKU 418181
SPACER SOLENIOD BRACKET
SPACER SOLENIOD BRACKET
$3.49 $4.25
SKU 418514
STRAP-COPPER,PRO PLUS
STRAP-COPPER,PRO PLUS
$3.49 $4.25
SKU 440260
SOLENOID-12V
SOLENOID-12V
$36.08 $44.00
SKU 440262
SOLENOID-24V
SOLENOID-24V
$36.90 $45.00
SKU 440265
GASKET-GH CVR,.031THK
GASKET-GH CVR,.031THK
$3.49 $4.25
SKU 442208
RING GEAR GASKET
RING GEAR GASKET
$2.05 $2.50
SKU 442219
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
$10.25 $12.50
SKU 448046
TIE BAR-REP-6&8,CHROME
TIE BAR-REP-6&8,CHROME
$42.85 $52.25
SKU 448049
KNOB-LEVER GRAY
KNOB-LEVER GRAY
$12.92 $15.75
SKU 452001
LOCKING RING - RING GEAR
Average rating:
average rating 100%
LOCKING RING - RING GEAR
$42.85 $52.25
SKU 477002
HALF RING, INPUT FRICTION, W/REP-8000
HALF RING, INPUT FRICTION, W/REP-8000
$8.61 $10.50
SKU 477004
CAM RING
CAM RING
$46.33 $56.50
SKU 477011
RETAINER RING GEAR
RETAINER RING GEAR
$11.48 $14.00
SKU 479007
RING GEAR SPRING
RING GEAR SPRING
$2.26 $2.75
SKU 494077
Ramsey Winch Parts
THRUST WASHER-1.39 ID,PLAS,DC PLANE
$3.49 $4.25
SKU 518020
Ramsey Winch Parts
THRUST DISC-.035X.922DIA/ALL PLANET
$2.26 $2.75
SKU 518027
