Ramsey Winch Patriot Profile 9500 UT Parts

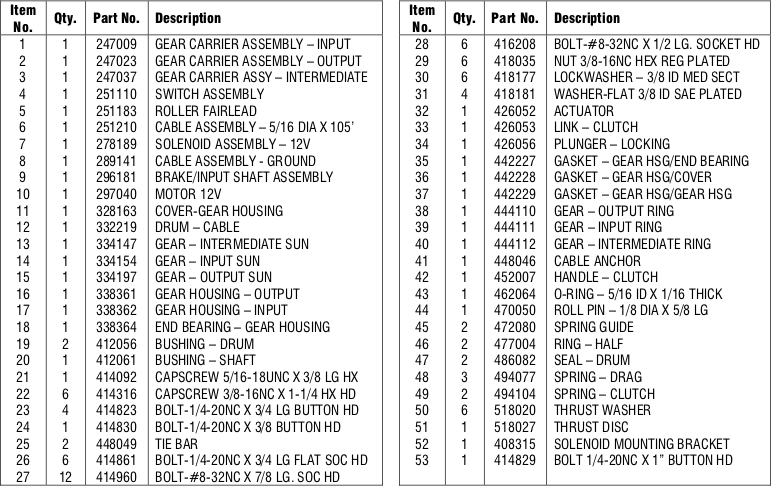

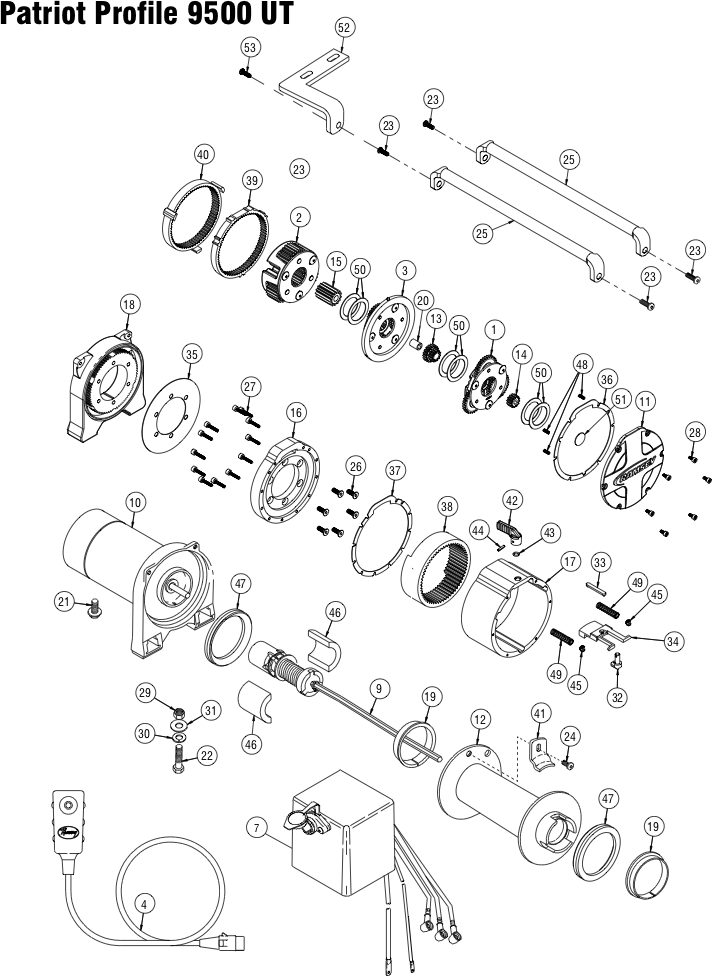

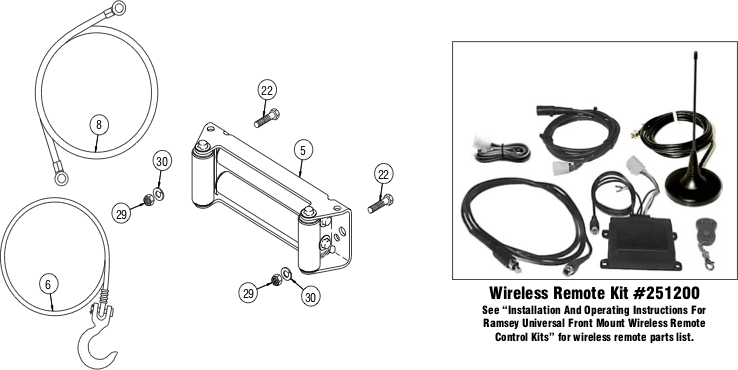

Ramsey Winch Patriot Profile 9500 UT Parts DiagramRamsey Winch Patriot Profile 9500 UT Parts List
Tap or Click Images to Zoom

Ramsey Winch Parts
GEAR CARRIER ASSEMBLY-INPUT, REP24-8000
$130.38 $159.00
SKU: 247009
Ramsey Winch Parts
GEAR CARRIER ASSY-OUTPUT, PRO-9000
$307.50 $375.00
SKU: 247023
Rasmey
KIT-105' X 5/16, 7X19AC W 3/8 HK
$199.26 $243.00
SKU: 251210
ramsey-no-pic
BATTERY WIRE ASSY
$60.07 $73.25
SKU: 289015
ramsey-no-pic
WIRE ASSY - 4.5LG, #6GA 2-TERM
$11.48 $14.00
SKU: 289077
ramsey-no-pic
WIRE ASSEMBLY GROUND
$67.04 $81.75
SKU: 289141
ramsey-no-pic
WIRE ASSEMBLY MOTOR LEAD
$26.65 $32.50
SKU: 289170
ramsey-no-pic
BRAKE ASSEMBLY
$131.20 $160.00
SKU: 296181
ramsey-no-pic

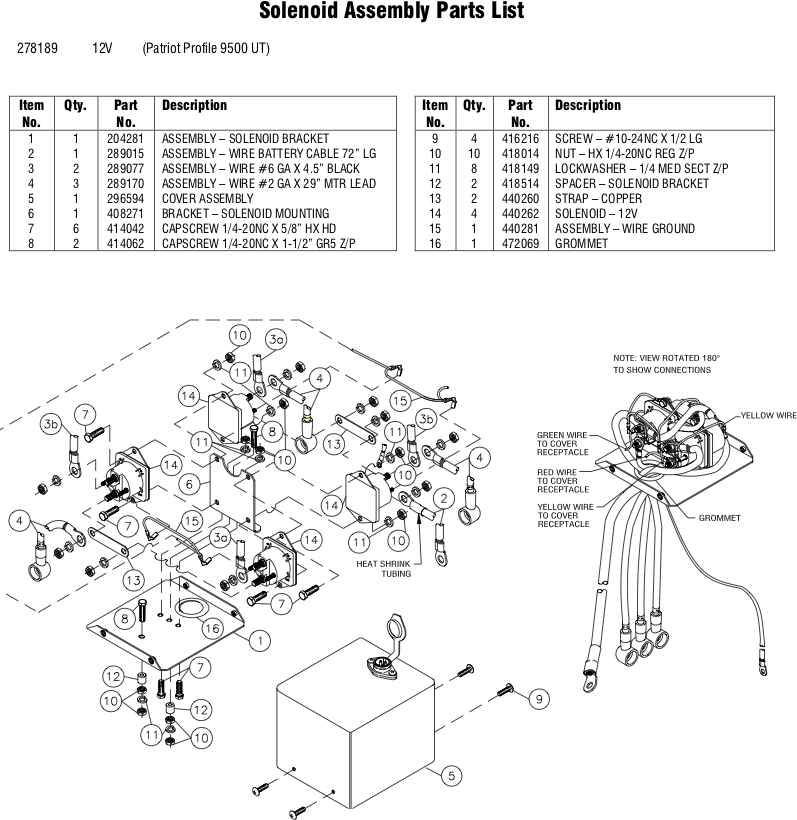

SOLENOID COVER ASSEMBLY
$113.98 $139.00
SKU: 296594
ramsey-no-pic
INTERM GEAR / SUN,H/T #682061, REP-8000
$16.20 $19.75
SKU: 334147
ramsey-no-pic
INPUT GEAR
$13.33 $16.25
SKU: 334154
Ramsey Winch Parts
OUTPUT GEAR
$33.42 $40.75
SKU: 334197
ramsey-no-pic
DRUM BUSHING
$6.77 $8.25
SKU: 412056
ramsey-no-pic
SHAFT BUSHING
$5.54 $6.75
SKU: 412061
ramsey-no-pic
CAPSCREW 3/8-16NC X 1 1/4
$1.23 $1.50
SKU: 414316
ramsey-no-pic
BOLT 1/4-20NC X 3/4LG
$1.23 $1.50
SKU: 414823
ramsey-no-pic
BOLT 1/4-20NC X 1
$1.23 $1.50
SKU: 414829
ramsey-no-pic
CAPSCREW 1/4-20NC X 3/8
$1.23 $1.50
SKU: 414830
ramsey-no-pic
BOLT 1/4 X 20NC X 3/4 NY-LOK
$2.26 $2.75
SKU: 414861
ramsey-no-pic
SCREW-#10-24NC X 1/2LG
$2.26 $2.75
SKU: 416216
ramsey-no-pic
NUT 1/4-20NC
$1.23 $1.50
SKU: 418014
ramsey-no-pic
NUT-3/8-16NC HEX REG ZINC PLATED
$1.23 $1.50
SKU: 418035
ramsey-no-pic
LOCKWASHER 1/4
$1.23 $1.50
SKU: 418149
ramsey-no-pic
LOCKWASHER 3/8
$1.23 $1.50
SKU: 418177
ramsey-no-pic
WASHER 3/8 ID
$1.23 $1.50
SKU: 418181
ramsey-no-pic
SPACER SOLENIOD BRACKET
$3.49 $4.25
SKU: 418514
ramsey-no-pic
STRAP-COPPER,PRO PLUS
$3.49 $4.25
SKU: 440260
ramsey-no-pic
SOLENOID-12V
$36.08 $44.00
SKU: 440262
ramsey-no-pic
SELF ENGAGING CLUTCH
$150.88 $184.00
SKU: 444110
ramsey-no-pic
RING GEAR
$43.33 $50.98
SKU: 444111
ramsey-no-pic
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
$10.25 $12.50
SKU: 448046
ramsey-no-pic
TIE BAR-REP-6&8,CHROME
$42.85 $52.25
SKU: 448049
ramsey-no-pic
ROLL PIN-1/8 DIA X 5/8 LG
$1.23 $1.50
SKU: 470050
ramsey-no-pic
HALF RING, INPUT FRICTION, W/REP-8000
$8.61 $10.50
SKU: 477004
ramsey-no-pic
RING GEAR SPRING
$2.26 $2.75
SKU: 494077
Ramsey Winch Parts
THRUST WASHER-1.39 ID,PLAS,DC PLANE
$3.49 $4.25
SKU: 518020
Ramsey Winch Parts
THRUST DISC-.035X.922DIA/ALL PLANET
$2.26 $2.75
SKU: 518027
