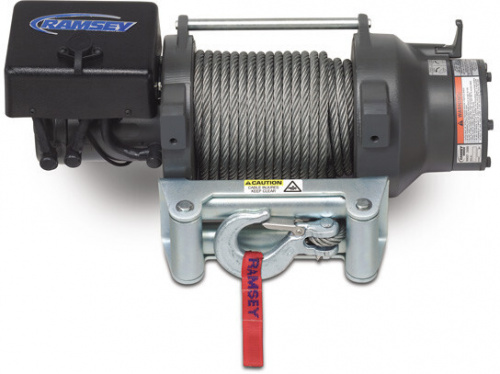

Ramsey Winch - Patriot 15000 R 12V with 12 ft. wire pendant
+ Tap or click image to enlarge
Planetary Electric Winch with 15,000 lb Line Pull
$3,050.58
$3,253.95
SKU 109159
Manufacturer Lead Time: 3-10 Weeks
Product Details
- Efficient 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power
- Proven three-stage planetary gear system design for fast line speed
- Motor and solenoids are grounded directly to battery
- Strong automatic load-holding brake for strength
- Weather resistant solenoid assembly
- Cam action clutch disengages planetary gear system for free spooling
- 12 ft. pendant or the patented (US # 6,995,682) wireless remote
- 6 ft. (1,83 M) 2 gauge battery cables with connectors
- 4-way roller fairlead
- Limited lifetime warranty
- Made in the USA
Specifications
| Rated Line Pull | 15,000 Lbs / 6,804 Kg |
| Note | Rated line pull is based on the first layer of cable. Rated line speed is based on cable with No Load. |
| Gear Ratio | 251:1 |
| Brake | Yes |
| Cable | Includes Cable |
| Drum Size (L x F x B) | 8.00 x 8.00 x 3.50 In / 203.2 x 203.2 x 88.9 MM |
| Cable Capacity | 90 Ft / 27.4 M |
| Recommend Cable Size | 7/16 In / 11.1 MM |
| 1st Layer Line Speed | 25 Ft/Min / 7.6 M/Min |
| Motor Output | 5.5 HP |
| Motor Type | Series Wound |
| Voltage | 12V, 24V |
| Fairlead | Roller |
| Clutch Type | Pull and Rotate |
| Clutch Control | Manual |
| Weight w/o Cable | 120 Lbs / 54 Kg |
