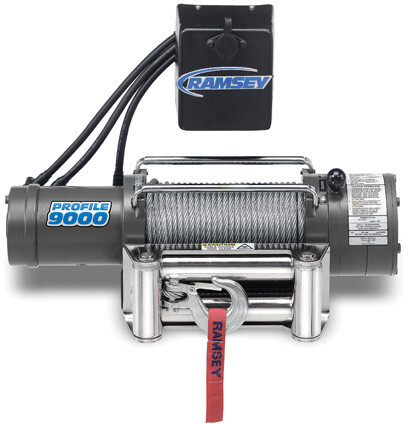

Ramsey Winch - Patriot Profile 9000 R 12V with 12 ft. wire pendant
+ Tap or click image to enlarge
Planetary Electric Winch with 9,000 lb Line Pull
$1,888.12
$2,014.01
SKU 109165
Manufacturer Lead Time: 3-10 Weeks
Product Details
- Efficient series wound electric reversible motor for increased pulling power
- Proven three-stage planetary gear system design for fast line speed
- Motor and solenoids are grounded directly to battery
- Strong automatic load-holding brake for strength
- Weather resistant solenoid assembly
- Cam action clutch disengages planetary gear system for free spooling
- The Patriot Profile Series comes with either a 12 ft. pendant or the patented (US # 6,995,682) wireless remote
- 6 ft. (1,83 M) 2 gauge battery cables with connectors
- 4-way roller fairlead
- Limited lifetime warranty
- Made in the USA
Specifications
| Rated Line Pull | 9,000 Lbs / 4,083 Kg |
| Note | Rated line pull is based on the first layer of cable. Rated line speed is based on cable with No Load. |
| Weight w/o Cable | 92 Lbs / 42 Kg |
| Gear Ratio | 138:1 |
| Brake | Yes |
| Cable | Includes Cable |
| Drum Size (L x F x B) | 9.00 x 5.50 x 2.50 In / 229 x 140 x 64 MM |
| Cable Capacity | 105 Ft / 32.0 M |
| Recommend Cable Size | 5/16 In / 7.9 MM |
| 1st Layer Line Speed | 29 Ft/Min / 8.8 M/Min |
| Motor Output | 4.4 HP |
| Motor Type | Series Wound |
| Voltage | 12V |
| Fairlead | Roller |
| Clutch Type | Cam Action |
| Clutch Control | Manual |
