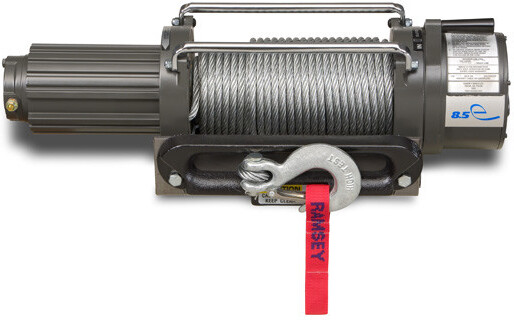

Ramsey Winch - REP 8.5e, R, 12V, with 12 ft. wire pendant

Ramsey Winch - REP 8.5e, R, 12V, with 12 ft. wire pendant
+ Tap or click image to enlarge
Planetary Electric Winch with 8,500 lb Line Pull
$1,374.45 $1,617.00
SKU 111085
Ramsey Winches are built to order currently, due to supply limits. It may be up to 16-24 weeks for an order to be shipped. If you need more information please contact us.
Call To Order
1-866-658-7952

Product Details

  • Cam action clutch disengages planetary gear system for free spooling
  • Proven 3-stage planetary gear system design for fast line speed
  • 5 Ft. (1.52 M) 4-gauge battery cables with connectors
  • Weather resistant solenoid assembly
  • Automatic load-holding brake
  • 12 Ft. wire pendant remote
  • Limited lifetime warranty
  • Made in the USA
Ramsey Winches are usually built to order. It may be up to 4 weeks for an order to be shipped. If you need more information please contact us.

Specifications

Rated Line Pull8,500 Lbs / 3,856 Kg
NoteRated line pull is based on the first layer of cable. Rated line speed is based on cable with No Load.
Gear Ratio294:1
Weight w/o Cable56 Lbs / 25 Kg
BrakeYes
CableIncludes Cable
Drum Size (L x F x B)9.00 x 5.50 x 2.50 In / 229 x 140 x 64 MM
Cable Capacity95 Ft / 29.0 M
Recommend Cable Size5/16 In / 7.9 MM
1st Layer Line Speed15 Ft/Min / 4.6 M/Min
Motor Output2.5 HP
Motor TypePermanent Magnet
Voltage12V
FairleadHawse
Clutch TypeCam Action
Clutch ControlManual

Shipping

Warranty

Ramsey Winch offers a limited lifetime warranty for each new Ramsey ATV winch against manufacturing defects in workmanship and materials on all manufactured components.
