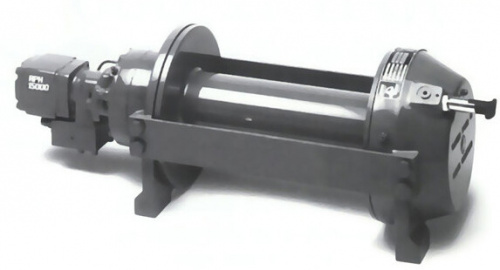

Ramsey Winch - RPH 15,000 Air Shift, Single Speed Motor

Ramsey Winch - RPH 15000
+ Tap or click image to enlarge
Hydraulic Planetary Winch
$5,882.00 $6,920.00
SKU 123407
Free Shipping
Ramsey Winches are built to order currently, due to supply limits. It may be up to 16-24 weeks for an order to be shipped. If you need more information please contact us.
Call To Order
1-866-658-7952

Product Details

This Winch's Configuration
OptionSingle Speed Motor
Series Features
  • Rated Line pull 15,000 lbs
  • Standard Drum
  • Recommended cable 1/2"
  • Available with air shift
  • Meets SAE J706
  • Made in the USA

Ramsey Winches are usually built to order. It may be up to 4 weeks for an order to be shipped. If you need more information please contact us.

Specifications

Rated Line Pull15,000 Lbs / 6,804 Kg
NoteRated line pull is based on the first layer of cable.
1st Layer Line Speed25 Ft/Min / 7.6 M/Min
Gear Ratio7.7:1
Weight w/o Cable300 Lbs / 136 Kg
BrakeYes
CableNone
Drum Size (L x F x B)14.12 x 11.00 x 4.75 In / 358.6 x 279.4 x 120.7 MM
Cable Capacity310 Ft / 94.5 M
Hydraulic Pressure Required2,500 PSI (172 Bar)
Hydraulic Flow Required15.0 GPM (57 LPM)
Motor Size24.0 Cu. In. (393 cc)
Additional Motor OptionsNone
Clutch TypeSliding Pin
Clutch ControlAir, Manual

Shipping

Warranty

RAMSEY WINCH warrants each new RAMSEY Winch to be free from defects in material and workmanship for a period of one (1) year from date of purchase.
