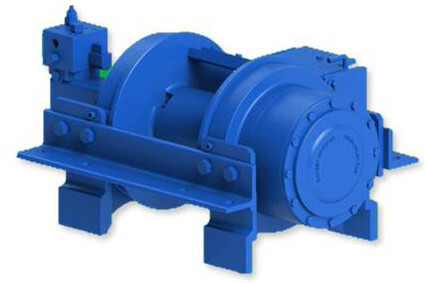

Ramsey Winch - Two-Speed HDP 40000, 2SP LH, SHORT DRUM, AIR TENSIONER

Ramsey Winch - Two-Speed HDP 40000, 2SP LH, SHORT DRUM, AIR TENSIONER
+ Tap or click image to enlarge
Hydraulic Worm Gear Winch
$19,658.80 $23,128.00
SKU 123661
Free Shipping
Ramsey Winches are built to order currently, due to supply limits. It may be up to 16-24 weeks for an order to be shipped. If you need more information please contact us.
Call To Order
1-866-658-7952

Product Details

This Winch's Configuration
Option2SP LH
OptionSHORT DRUM
OptionAIR TENSIONER
Series Features
  • Rated Line pull 40,000 lbs
  • Less weight – only 740 lbs.
  • 15% faster line speed than competition
  • Compact design
  • Internal air-shift free spool
  • Low temperature shifting -54F
  • Positive locking clutch
  • High efficiency gear set
  • Pneumatic variable pressure cable tensioner
  • Two speed motor – standard (Optional single speed motor)
  • Standard Drum
  • Recommended cable 3/4"
  • Meets SAE J706
  • Made in the USA

Ramsey Winches are usually built to order. It may be up to 4 weeks for an order to be shipped. If you need more information please contact us.

Specifications

Rated Line Pull40,000 Lbs / 18,144 Kg
NoteRated line pull is based on the first layer of cable.
1st Layer Line Speed24.0 Ft/Min / 7.3 M/Min
Gear Ratio51.35:1
Weight w/o Cable740 Lbs / 336 Kg
BrakeYes
CableNone
Drum Size (L x F x B)11.13 x 17.06 x 7.00 In / 282.7 x 433.3 x 177.8 MM
Cable Capacity235 Ft / 71.6 M
Recommend Cable Size3/4 In / 19.1 MM
Hydraulic Pressure Required2,800 PSI (193 Bar)
Hydraulic Flow Required25.0 GPM (94.6 LPM)
Motor Size9.6 Cu. In. (157 cc)
Additional Motor OptionsCall Factory
Clutch TypeSliding Pin
Clutch ControlAir

Shipping

Warranty

RAMSEY WINCH warrants each new RAMSEY Winch to be free from defects in material and workmanship for a period of one (1) year from date of purchase.
