Ramsey Planetary Electric Winch Parts

Ramsey Winch QM 9500 Parts

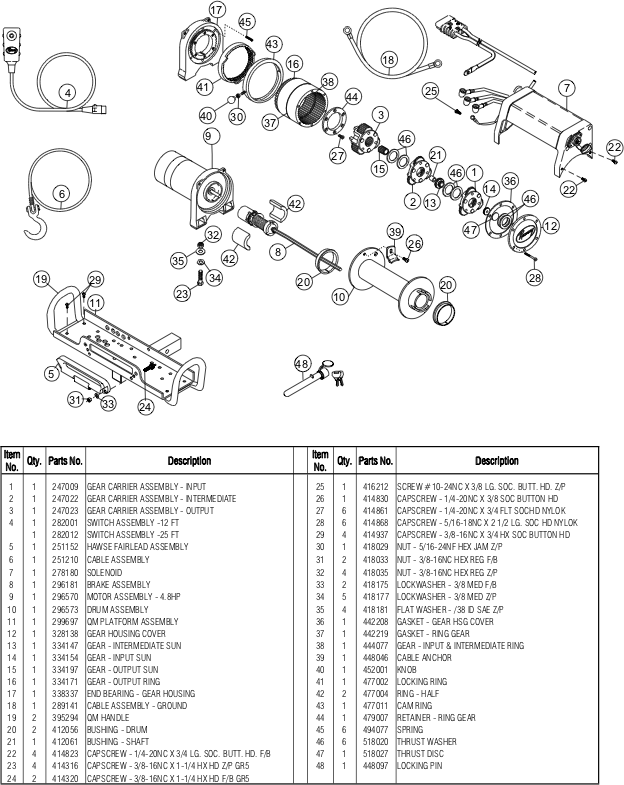

Ramsey Winch QM 9500 Parts DiagramRamsey Winch QM 9500 Solenoid Parts Diagram
Tap or Click Images to Zoom
CONNECTOR - FEMALE
CONNECTOR - FEMALE
$27.88 $34.00
SKU 430022
Ramsey Winch Parts
GEAR CARRIER ASSEMBLY-INPUT, REP24-8000
$130.38 $159.00
SKU 247009
Ramsey Winch Parts
GEAR CARRIER ASSY-INTERMEDIATE,PRO9
$130.38 $159.00
SKU 247022
Ramsey Winch Parts
GEAR CARRIER ASSY-OUTPUT, PRO-9000
$307.50 $375.00
SKU 247023
Rasmey
KIT-105' X 5/16, 7X19AC W 3/8 HK
$199.26 $243.00
SKU 251210
SWITCH ASSEMBLY-12FT LG
SWITCH ASSEMBLY-12FT LG
$89.38 $109.00
SKU 282001
WIRE ASSEMBLY GROUND
WIRE ASSEMBLY GROUND
$67.04 $81.75
SKU 289141
BRAKE ASSEMBLY
BRAKE ASSEMBLY
$131.20 $160.00
SKU 296181
Ramsey Winch Parts
MOTOR-END BRG, 4.8HP, W/GROUND
$697.82 $851.00
SKU 296570
ASSY-QM PLATFORM W/LOCKINGPIN QM8/9
ASSY-QM PLATFORM W/LOCKINGPIN QM8/9
$396.88 $484.00
SKU 299697
Ramsey Winch Parts
SOLENOID MTG END CAP LH
$101.68 $124.00
SKU 316103
CAP-END, RH, SOLENOID MTG
CAP-END, RH, SOLENOID MTG
$79.75 $97.25
SKU 316101
Ramsey Winch Parts
GEAR COVER HOUSING, PRO-9000
$130.38 $159.00
SKU 328138
INTERM GEAR / SUN,H/T #682061, REP-8000
INTERM GEAR / SUN,H/T #682061, REP-8000
$16.20 $19.75
SKU 334147
INPUT GEAR
INPUT GEAR
$13.33 $16.25
SKU 334154
Ramsey Winch Parts
OUTPUT GEAR
$33.42 $40.75
SKU 334197
HANDLE-QM, BLACK POWDER COATED
HANDLE-QM, BLACK POWDER COATED
$124.64 $152.00
SKU 395294
DRUM BUSHING
DRUM BUSHING
$6.77 $8.25
SKU 412056
SHAFT BUSHING
SHAFT BUSHING
$5.54 $6.75
SKU 412061
Ramsey Winch
SOLENOID WIRE COVER, PRO PLUS SERIES # 16049D
$11.48 $14.00
SKU 413078
CAPSCREW 3/8-16NC X 1 1/4
CAPSCREW 3/8-16NC X 1 1/4
$1.23 $1.50
SKU 414316
BOLT 3/8-16NC X 1 1/4
BOLT 3/8-16NC X 1 1/4
$2.26 $2.75
SKU 414320
BOLT 1/4-20NC X 3/4LG
BOLT 1/4-20NC X 3/4LG
$1.23 $1.50
SKU 414823
CAPSCREW 1/4-20NC X 3/8
CAPSCREW 1/4-20NC X 3/8
$1.23 $1.50
SKU 414830
BOLT 1/4 X 20NC X 3/4 NY-LOK
BOLT 1/4 X 20NC X 3/4 NY-LOK
$2.26 $2.75
SKU 414861
CAPSCREW-5/16-18NC X 1 1/2
CAPSCREW-5/16-18NC X 1 1/2
$2.26 $2.75
SKU 414880
CAPSCREW-3/8-16 X 3/4
CAPSCREW-3/8-16 X 3/4
$3.49 $4.25
SKU 414937
SCREW #8-32NC X 3/8
SCREW #8-32NC X 3/8
$1.23 $1.50
SKU 416207
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
$1.23 $1.50
SKU 416227
NUT 5/16-24NF HEX JAM
NUT 5/16-24NF HEX JAM
$2.26 $2.75
SKU 418029
NUT-3/8-16NC,HEX,REG/FORD BLK PLTG
NUT-3/8-16NC,HEX,REG/FORD BLK PLTG
$2.26 $2.75
SKU 418033
NUT-3/8-16NC HEX REG ZINC PLATED
NUT-3/8-16NC HEX REG ZINC PLATED
$1.23 $1.50
SKU 418035
LOCKWASHER 3/8
LOCKWASHER 3/8
$2.26 $2.75
SKU 418175
LOCKWASHER 3/8
LOCKWASHER 3/8
$1.23 $1.50
SKU 418177
WASHER 3/8 ID
WASHER 3/8 ID
$1.23 $1.50
SKU 418181
WIRE ASSY-24 IN.LG, BATT, W/QM-5000
WIRE ASSY-24 IN.LG, BATT, W/QM-5000
$110.70 $135.00
SKU 440180
STRAP-COPPER, PRO PLUS
STRAP-COPPER, PRO PLUS
$10.25 $12.50
SKU 440259
STRAP-COPPER,PRO PLUS
STRAP-COPPER,PRO PLUS
$3.49 $4.25
SKU 440260
SOLENOID-12V
SOLENOID-12V
$36.08 $44.00
SKU 440262
SOLENOID-24V
SOLENOID-24V
$36.90 $45.00
SKU 440265
ASSY-WIRE, GROUND
ASSY-WIRE, GROUND
$19.68 $24.00
SKU 440276
GASKET-GH CVR,.031THK
GASKET-GH CVR,.031THK
$3.49 $4.25
SKU 442208
RING GEAR GASKET
RING GEAR GASKET
$2.05 $2.50
SKU 442219
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
$10.25 $12.50
SKU 448046
5/8 RECEIVER HITCH PIN, WITH TWO KEYS
5/8 RECEIVER HITCH PIN, WITH TWO KEYS
$49.61 $60.50
SKU 448097
KNOB-LEVER GRAY
KNOB-LEVER GRAY
$12.92 $15.75
SKU 452001
LOCKING RING - RING GEAR
Average rating:
average rating 100%
LOCKING RING - RING GEAR
$42.85 $52.25
SKU 477002
HALF RING, INPUT FRICTION, W/REP-8000
HALF RING, INPUT FRICTION, W/REP-8000
$8.61 $10.50
SKU 477004
CAM RING
CAM RING
$46.33 $56.50
SKU 477011
RETAINER RING GEAR
RETAINER RING GEAR
$11.48 $14.00
SKU 479007
COVER FEMALE RECEPTACLE
COVER FEMALE RECEPTACLE
$6.77 $8.25
SKU 482029
RING GEAR SPRING
RING GEAR SPRING
$2.26 $2.75
SKU 494077
Ramsey Winch Parts
THRUST WASHER-1.39 ID,PLAS,DC PLANE
$3.49 $4.25
SKU 518020
Ramsey Winch Parts
THRUST DISC-.035X.922DIA/ALL PLANET
$2.26 $2.75
SKU 518027
