Ramsey Planetary Electric Winch Parts

Ramsey Winch REP 9.5e Parts

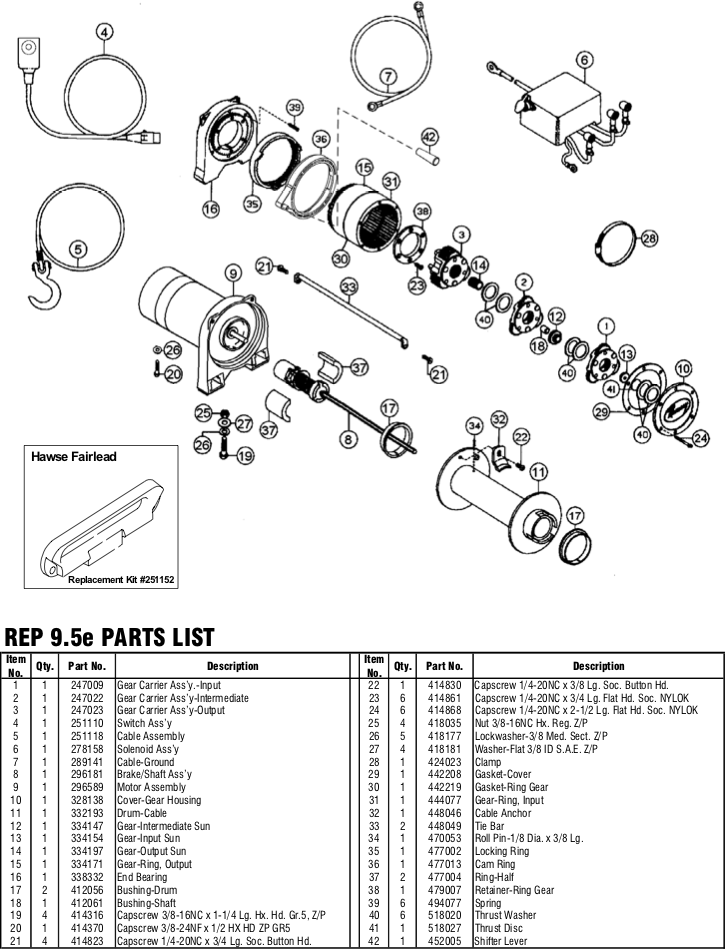

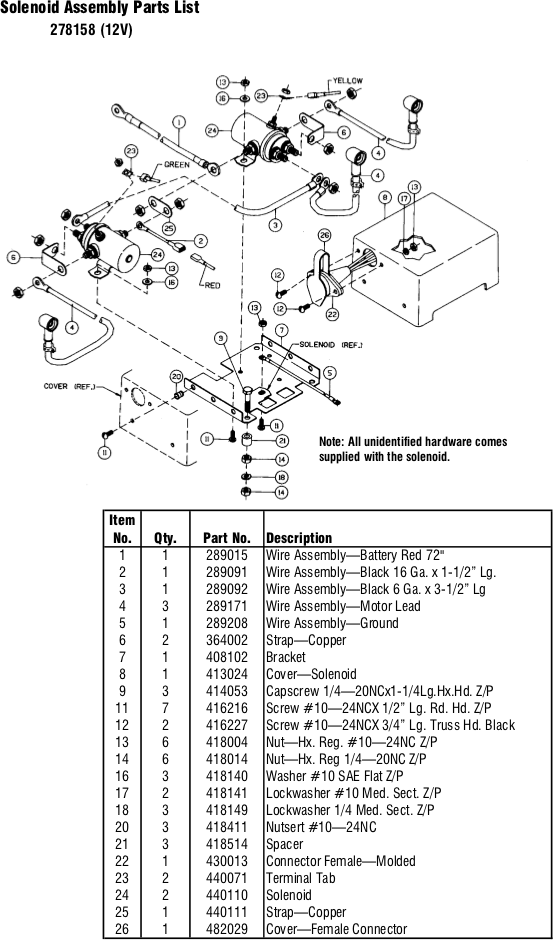

Ramsey Winch REP 9.5e Parts DiagramRamsey Winch REP 9.5e Solenoid Parts Diagram
Tap or Click Images to Zoom
Ramsey Winch Parts
GEAR CARRIER ASSEMBLY-INPUT, REP24-8000
$130.38 $159.00
SKU 247009
Ramsey Winch Parts
GEAR CARRIER ASSY-INTERMEDIATE,PRO9
$130.38 $159.00
SKU 247022
Ramsey Winch Parts
GEAR CARRIER ASSY-OUTPUT, PRO-9000
$307.50 $375.00
SKU 247023
Ramsey Winch Parts
SOLENOID ASSEMBLY, 12V, 4.8 HP MOTOR
$278.80 $340.00
SKU 278158
BATTERY WIRE ASSY
BATTERY WIRE ASSY
$60.07 $73.25
SKU 289015
Ramsey Winch Parts
WIRE ASSY-EXT,FEM CONN TO SOL,PLANE
$8.20 $10.00
SKU 289091
Ramsey Winch Parts
WIRE ASSY-SOLEN,#6GA BLACK,3 1/2 LG
$10.25 $12.50
SKU 289092
Ramsey Winch Parts
WIRE ASSEMBLY GROUND
$67.04 $81.75
SKU 289141
BRAKE ASSEMBLY
BRAKE ASSEMBLY
$131.20 $160.00
SKU 296181
Ramsey Winch Parts
MOTOR, REP-8000
$403.44 $492.00
SKU 296589
Ramsey Winch Parts
GEAR COVER HOUSING, PRO-9000
$130.38 $159.00
SKU 328138
CABLE DRUM, PLATINUM 9000/9500
CABLE DRUM, PLATINUM 9000/9500
$372.28 $454.00
SKU 332193
INTERM GEAR / SUN,H/T #682061, REP-8000
INTERM GEAR / SUN,H/T #682061, REP-8000
$16.20 $19.75
SKU 334147
INPUT GEAR
INPUT GEAR
$13.33 $16.25
SKU 334154
Ramsey Winch Parts
OUTPUT GEAR
$33.42 $40.75
SKU 334197
Ramsey Winch Parts
STRAP-COPPER
$10.00 $12.50
SKU 364002
BRACKET-SOLEN MTG FOR REP8000
BRACKET-SOLEN MTG FOR REP8000
$11.69 $14.25
SKU 408102
DRUM BUSHING
DRUM BUSHING
$6.77 $8.25
SKU 412056
SHAFT BUSHING
SHAFT BUSHING
$5.54 $6.75
SKU 412061
SOLENOID COVER REP8000
SOLENOID COVER REP8000
$12.92 $15.75
SKU 413024
BOLT 1/4-20NC X 1 1/4 LG
BOLT 1/4-20NC X 1 1/4 LG
$2.26 $2.75
SKU 414053
CAPSCREW 3/8-16NC X 1 1/4
CAPSCREW 3/8-16NC X 1 1/4
$1.23 $1.50
SKU 414316
BOLT 1/4-20NC X 3/4LG
BOLT 1/4-20NC X 3/4LG
$1.23 $1.50
SKU 414823
CAPSCREW 1/4-20NC X 3/8
CAPSCREW 1/4-20NC X 3/8
$1.23 $1.50
SKU 414830
BOLT 1/4 X 20NC X 3/4 NY-LOK
BOLT 1/4 X 20NC X 3/4 NY-LOK
$2.26 $2.75
SKU 414861
SCREW-#10-24NC X 1/2LG
SCREW-#10-24NC X 1/2LG
$3.60 $4.50
SKU 416216
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
$1.23 $1.50
SKU 416227
NUT-HEX #10-24NC REG
NUT-HEX #10-24NC REG
$0.80 $1.00
SKU 418004
NUT 1/4-20NC
NUT 1/4-20NC
$1.23 $1.50
SKU 418014
NUT-3/8-16NC HEX REG ZINC PLATED
NUT-3/8-16NC HEX REG ZINC PLATED
$1.23 $1.50
SKU 418035
LOCKWASHER 1/4
LOCKWASHER 1/4
$2.80 $3.50
SKU 418149
LOCKWASHER 3/8
LOCKWASHER 3/8
$1.23 $1.50
SKU 418177
WASHER 3/8 ID
WASHER 3/8 ID
$3.00 $3.75
SKU 418181
NUT-#10-24NC, NUTSERT
NUT-#10-24NC, NUTSERT
$1.23 $1.50
SKU 418411
SPACER SOLENIOD BRACKET
SPACER SOLENIOD BRACKET
$3.49 $4.25
SKU 418514
CLAMP 4 1/8 TO 5DIA
CLAMP 4 1/8 TO 5DIA
$8.20 $10.00
SKU 424023
Ramsey Winch Parts
Average rating:
average rating 100%
CONNECTOR-FEMALE RECEPTACLE MOLDED
$46.33 $56.50
SKU 430013
TERMINAL TAB-MALE
TERMINAL TAB-MALE
$1.23 $1.50
SKU 440071
SOLENOID-12V
SOLENOID-12V
$184.00 $230.00
SKU 440110
STRAP
STRAP
$4.72 $5.75
SKU 440111
GASKET-GH CVR,.031THK
GASKET-GH CVR,.031THK
$3.49 $4.25
SKU 442208
RING GEAR GASKET
RING GEAR GASKET
$2.05 $2.50
SKU 442219
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
$10.25 $12.50
SKU 448046
TIE BAR-REP-6&8,CHROME
TIE BAR-REP-6&8,CHROME
$42.85 $52.25
SKU 448049
ROLL PIN-1/8 DIA X 3/8 LG
ROLL PIN-1/8 DIA X 3/8 LG
$1.23 $1.50
SKU 470053
LOCKING RING - RING GEAR
Average rating:
average rating 100%
LOCKING RING - RING GEAR
$42.85 $52.25
SKU 477002
HALF RING, INPUT FRICTION, W/REP-8000
HALF RING, INPUT FRICTION, W/REP-8000
$8.61 $10.50
SKU 477004
RETAINER RING GEAR
RETAINER RING GEAR
$11.48 $14.00
SKU 479007
COVER FEMALE RECEPTACLE
COVER FEMALE RECEPTACLE
$6.77 $8.25
SKU 482029
RING GEAR SPRING
RING GEAR SPRING
$2.26 $2.75
SKU 494077
Ramsey Winch Parts
THRUST WASHER-1.39 ID,PLAS,DC PLANE
$3.49 $4.25
SKU 518020
Ramsey Winch Parts
THRUST DISC-.035X.922DIA/ALL PLANET
$2.26 $2.75
SKU 518027
