Ramsey Winch Parts
Ramsey Winch Parts

Ramsey Winch RPH 12000 Parts - Blocked Clutch

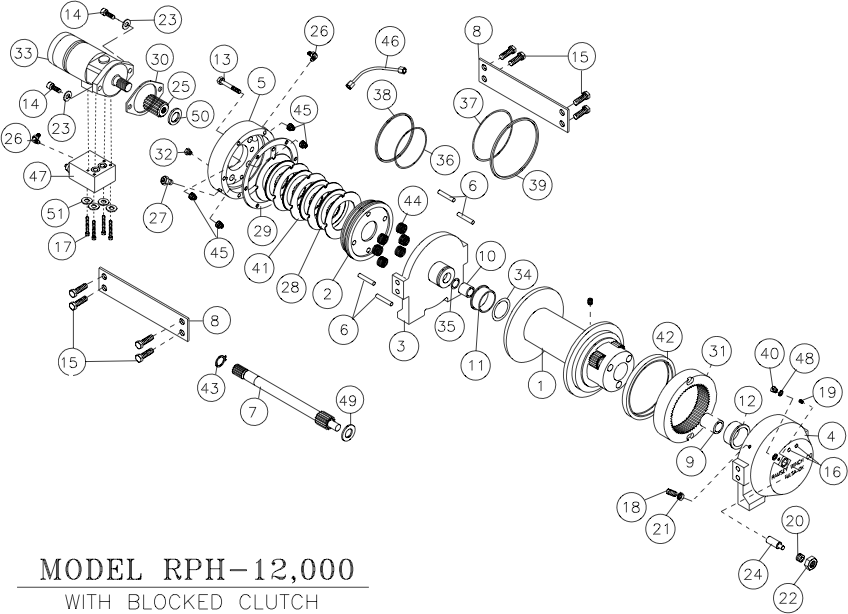

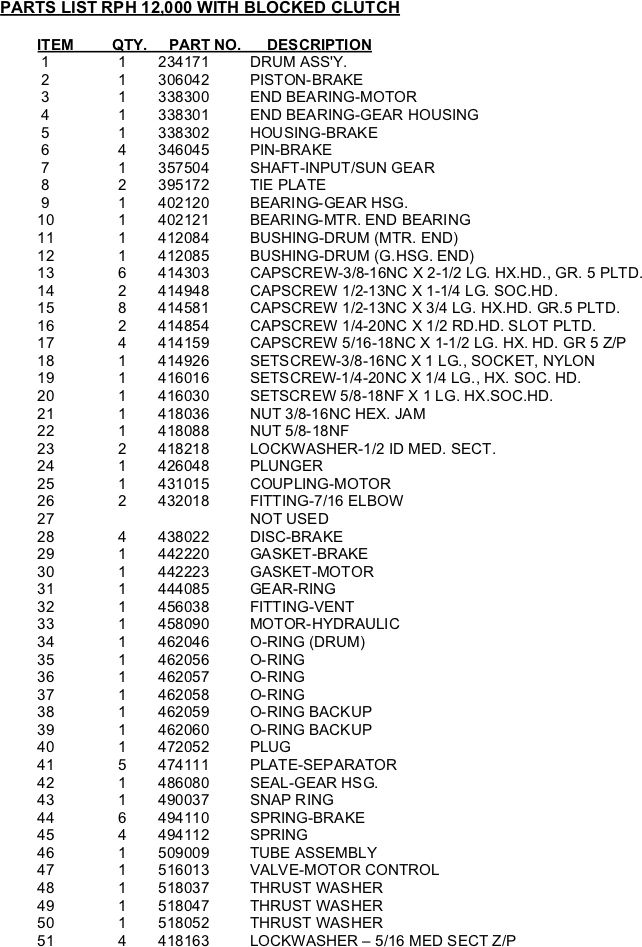

Ramsey Winch RPH 12000 Parts - Blocked Clutch DiagramRamsey Winch RPH 12000 Parts List - Blocked Clutch
Tap or Click Images to Zoom
Ramsey Winch Parts
GASKET - MOTOR FLANGE
$3.49 $4.25
SKU 442223
BREATHER
BREATHER
$5.54 $6.75
SKU 456038
PISTON-BRAKE, RPH-12000
PISTON-BRAKE, RPH-12000
$186.96 $228.00
SKU 306042
END BEARING-MOTOR END, RPH-12000
END BEARING-MOTOR END, RPH-12000
$555.14 $677.00
SKU 338300
END BEARING-GEAR HOUSING., RPH-12000
END BEARING-GEAR HOUSING., RPH-12000
$803.60 $980.00
SKU 338301
BRAKE HOUSING
BRAKE HOUSING
$372.28 $454.00
SKU 338302
DRUM ASSY-RPH10000/12000
DRUM ASSY-RPH10000/12000
$1,154.56 $1,408.00
SKU 234171
BRAKE PIN .375 DIA. X 2.125 LG.
BRAKE PIN .375 DIA. X 2.125 LG.
$4.72 $5.75
SKU 346045
INPUT SHAFT / SUN GEAR, RPH-12000
INPUT SHAFT / SUN GEAR, RPH-12000
$264.04 $322.00
SKU 357504
Ramsey
BEARING
$8.20 $10.00
SKU 402120
BEARING-RPH 12
BEARING-RPH 12
$8.20 $10.00
SKU 402121
BUSHING DRUM MOTOR END
BUSHING DRUM MOTOR END
$27.88 $34.00
SKU 412084
DRUM BUSHING GEAR END
DRUM BUSHING GEAR END
$19.68 $24.00
SKU 412085
BOLT 3/8-16NC X 2 1/2
BOLT 3/8-16NC X 2 1/2
$1.23 $1.50
SKU 414303
CAPSCREW 1/2-13NC X 3/4LG
CAPSCREW 1/2-13NC X 3/4LG
$2.26 $2.75
SKU 414581
Ramsey Winch Parts
SETSCREW 3/8-16NC X 1
$2.26 $2.75
SKU 414926
CAPSCREW 1/2-13NC X 1 1/4 LG
CAPSCREW 1/2-13NC X 1 1/4 LG
$3.49 $4.25
SKU 414948
SET SCREW 1/4-20NC X 1/4
SET SCREW 1/4-20NC X 1/4
$2.26 $2.75
SKU 416016
SCREW SS-1/4-20NC X 3/8
SCREW SS-1/4-20NC X 3/8
$4.72 $5.75
SKU 416030
NUT 3/8-16 NC
NUT 3/8-16 NC
$2.26 $2.75
SKU 418036
JAM NUT 5/8-18NF HEX HD
JAM NUT 5/8-18NF HEX HD
$1.23 $1.50
SKU 418088
LOCKWASHER 5/16
LOCKWASHER 5/16
$1.23 $1.50
SKU 418163
LOCKWASHER 1/2 ID
LOCKWASHER 1/2 ID
$1.23 $1.50
SKU 418218
CLUTCH PLUNGER, BLOCKED, RPH12/15000
CLUTCH PLUNGER, BLOCKED, RPH12/15000
$8.82 $10.75
SKU 426048
MOTOR COUPLING, P/M, RPH-12000
MOTOR COUPLING, P/M, RPH-12000
$46.33 $56.50
SKU 431015
FITTING 7/16-20 90 degree
FITTING 7/16-20 90 degree
$17.63 $21.50
SKU 432018
DISC BRAKE, RPH12000
DISC BRAKE, RPH12000
$31.37 $38.25
SKU 438022
BRAKE HOUSING GASKET
BRAKE HOUSING GASKET
$5.54 $6.75
SKU 442220
RING GEAR P/M,RPH-12000
RING GEAR P/M,RPH-12000
$415.74 $507.00
SKU 444085
HYDRAULIC MOTOR - ROSS
HYDRAULIC MOTOR - ROSS
$1,087.32 $1,326.00
SKU 458090
O-RING 1/8X2 1/4 OD X 2, AS-568-226
O-RING 1/8X2 1/4 OD X 2, AS-568-226
$2.26 $2.75
SKU 462046
O-RING
O-RING
$1.23 $1.50
SKU 462056
O-RING AS-568-256
O-RING AS-568-256
$6.77 $8.25
SKU 462057
O-RING-AS-568-259
O-RING-AS-568-259
$8.20 $10.00
SKU 462058
O-RING-BACK-UP
O-RING-BACK-UP
$11.48 $14.00
SKU 462059
RING-BACK-UP
RING-BACK-UP
$13.74 $16.75
SKU 462060
Ramsey Parts
O-RING PLUG-SAE , .562-18NF
$2.26 $2.75
SKU 472052
Ramsey Winch Parts
PLATE-SEPARATOR, BRAKE, RPH-12000
$9.43 $11.50
SKU 474111
SEAL-GH
SEAL-GH
$24.40 $29.75
SKU 486080
Ramsey Winch
SNAP RING
$2.26 $2.75
SKU 490037
SPRING-BRAKE
SPRING-BRAKE
$18.45 $22.50
SKU 494110
SPRING-RPH12000, PRESSURE TO BRAKE
SPRING-RPH12000, PRESSURE TO BRAKE
$2.26 $2.75
SKU 494112
Ramsey Winch
TUBE ASSY 1/4OD, HYD.BRK., RPH-12000
$56.58 $69.00
SKU 509009
Ramsey
VALVE-MOTOR CONTROL
$815.08 $994.00
SKU 516013
Ramsey Winch Parts
THRUST WASHER
$2.26 $2.75
SKU 518037
Ramsey Winch Parts
THRUST WASHER,.063 THK. X 1.50 OD
$2.26 $2.75
SKU 518047
Ramsey Winch Parts
THRUST WASHER, 1.37 O.D., RPH-12000
$3.49 $4.25
SKU 518052
