Planetary Hydraulic Winch Parts

Ramsey Winch RPH-133,4 Parts

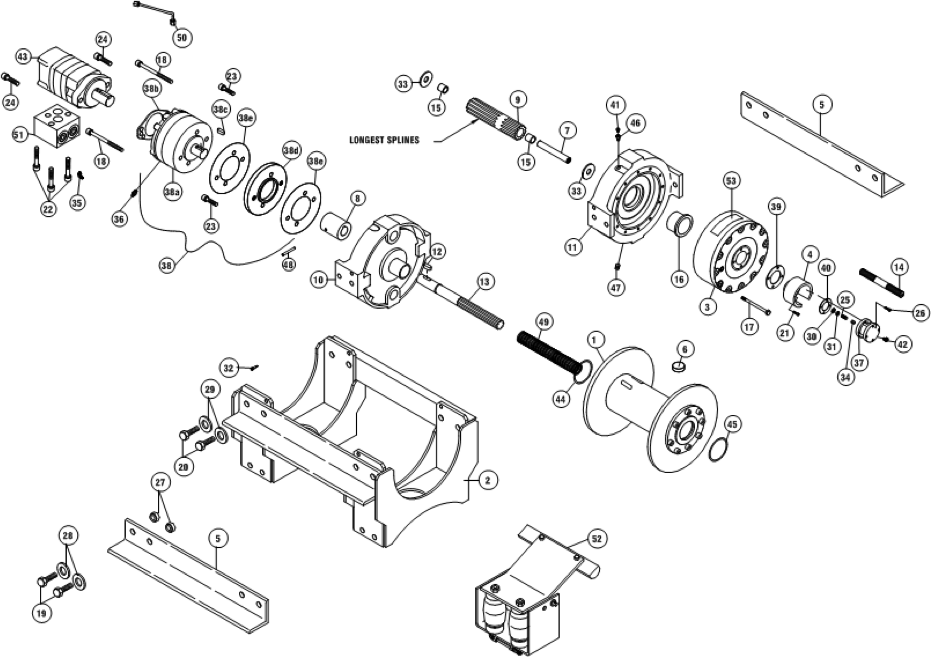

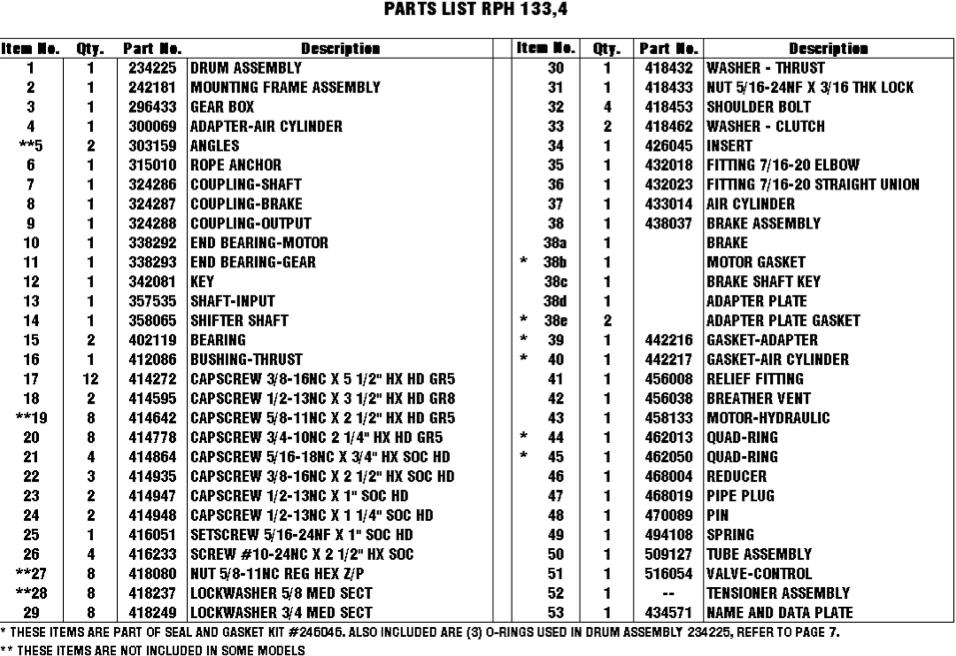

Ramsey Winch RPH-133,4 Parts DiagramRamsey Winch RPH-133,4 Parts List
Tap or Click Images to Zoom
BREATHER
BREATHER
$5.54 $6.75
SKU 456038
QUAD RING
QUAD RING
$9.43 $11.50
SKU 462013
GEAR BOX ASSEMBLY RPH-30,000
GEAR BOX ASSEMBLY RPH-30,000
$3,456.30 $4,215.00
SKU 296433
AIR CYLINDER ADAPTER, RPH-30,000, ALUM.
AIR CYLINDER ADAPTER, RPH-30,000, ALUM.
$551.04 $672.00
SKU 300069
ROPE ANCHOR - RPH 133,4
ROPE ANCHOR - RPH 133,4
$34.44 $42.00
SKU 315010
Ramsey Winch Parts
MOTOR COUPLING, RPH-30,000
$103.32 $126.00
SKU 324287
COUPLING-OUTPUT, RPH-30,000
COUPLING-OUTPUT, RPH-30,000
$563.34 $687.00
SKU 324288
KEY-RD ENDS 5/16 X 5/16 X 1.5LG
KEY-RD ENDS 5/16 X 5/16 X 1.5LG
$14.97 $18.25
SKU 342081
PIVOT PIN, CABLE TENSIONER, RPH20/50
PIVOT PIN, CABLE TENSIONER, RPH20/50
$79.75 $97.25
SKU 346046
SHAFT-INPUT SHIFTER,RPH-30,000
SHAFT-INPUT SHIFTER,RPH-30,000
$496.92 $606.00
SKU 358065
BEARING
BEARING
$17.63 $21.50
SKU 402119
BRACKET AIR TENSIONER, RPH20/25/30
BRACKET AIR TENSIONER, RPH20/25/30
$138.58 $169.00
SKU 408227
CAPSCREW 3/8-16NC X 3/4 LG
CAPSCREW 3/8-16NC X 3/4 LG
$1.23 $1.50
SKU 414278
CAPSCREW
CAPSCREW
$4.72 $5.75
SKU 414595
CAPSCREW 5/16-18NC X 3/4 LG
CAPSCREW 5/16-18NC X 3/4 LG
$1.23 $1.50
SKU 414864
CAPSCREW 1/2-13NC X 1 1/4 LG
CAPSCREW 1/2-13NC X 1 1/4 LG
$3.49 $4.25
SKU 414948
SETSCREW 5/16-24NF X 1
SETSCREW 5/16-24NF X 1
$1.23 $1.50
SKU 416051
SCREW #10-24NC X 2 1/2
SCREW #10-24NC X 2 1/2
$1.23 $1.50
SKU 416233
HEX NUT-1/2-13NC
HEX NUT-1/2-13NC
$2.26 $2.75
SKU 418069
NUT 5/8-11NC REG HEX
NUT 5/8-11NC REG HEX
$1.23 $1.50
SKU 418080
LOCKWASHER 1/2
LOCKWASHER 1/2
$1.23 $1.50
SKU 418217
LOCKWASHER 3/4 ID
LOCKWASHER 3/4 ID
$2.26 $2.75
SKU 418249
THRUST WASHER NYLATRON 5/16 ID
THRUST WASHER NYLATRON 5/16 ID
$3.49 $4.25
SKU 418432
LOCK NUT 5/16-24NF X 3/16 THK.
LOCK NUT 5/16-24NF X 3/16 THK.
$13.74 $16.75
SKU 418433
SHOULDER BOLT
SHOULDER BOLT
$8.20 $10.00
SKU 418453
WASHER CLUTCH 2.125 OD X .878 ID X .070
WASHER CLUTCH 2.125 OD X .878 ID X .070
$41.62 $50.75
SKU 418462
COTTER PIN 1/8DIA X 1 LG
COTTER PIN 1/8DIA X 1 LG
$1.23 $1.50
SKU 424005
THREADED INSERT .312-24NF
THREADED INSERT .312-24NF
$16.20 $19.75
SKU 426045
FITTING 7/16-20 90 degree
FITTING 7/16-20 90 degree
$17.63 $21.50
SKU 432018
AIR FITTING, 90 DEG. ELBOW
AIR FITTING, 90 DEG. ELBOW
$6.77 $8.25
SKU 432033
Ramsey Winch Parts
AIR CYLINDER
$390.32 $476.00
SKU 433014
Ramsey Winch Parts
AIR ACTUATOR-FIRESTONE WO2-358-3004
$369.00 $450.00
SKU 433022
BRAKE-Modular AUSCO #76971, Rph30000 thru 50000
BRAKE-Modular AUSCO #76971, Rph30000 thru 50000
$1,520.28 $1,854.00
SKU 438037
GASKET ADAPTER, AIR CYL
GASKET ADAPTER, AIR CYL
$3.90 $4.75
SKU 442216
AIR CYLINDER GASKET .031 THK.
AIR CYLINDER GASKET .031 THK.
$2.26 $2.75
SKU 442217
RELIEF FITTING -1/8-27PFT
RELIEF FITTING -1/8-27PFT
$5.54 $6.75
SKU 456008
QUAD-RING
QUAD-RING
$4.72 $5.75
SKU 462050
REDUCER 1/2-1/8 NPTF
REDUCER 1/2-1/8 NPTF
$10.25 $12.50
SKU 468004
PIPE PLUG 1/8-27 NPTF
PIPE PLUG 1/8-27 NPTF
$2.26 $2.75
SKU 468016
CLUTCH SHIFTER SPRING
CLUTCH SHIFTER SPRING
$46.33 $56.50
SKU 494108
