Ramsey Winch RPH-15000 Parts - Air Shift

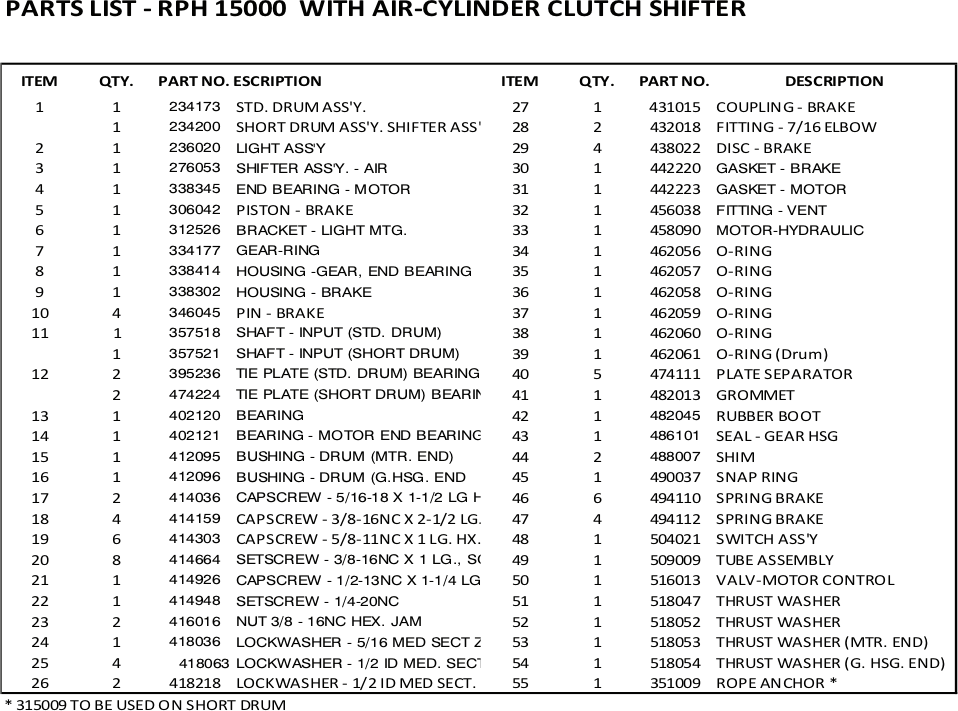

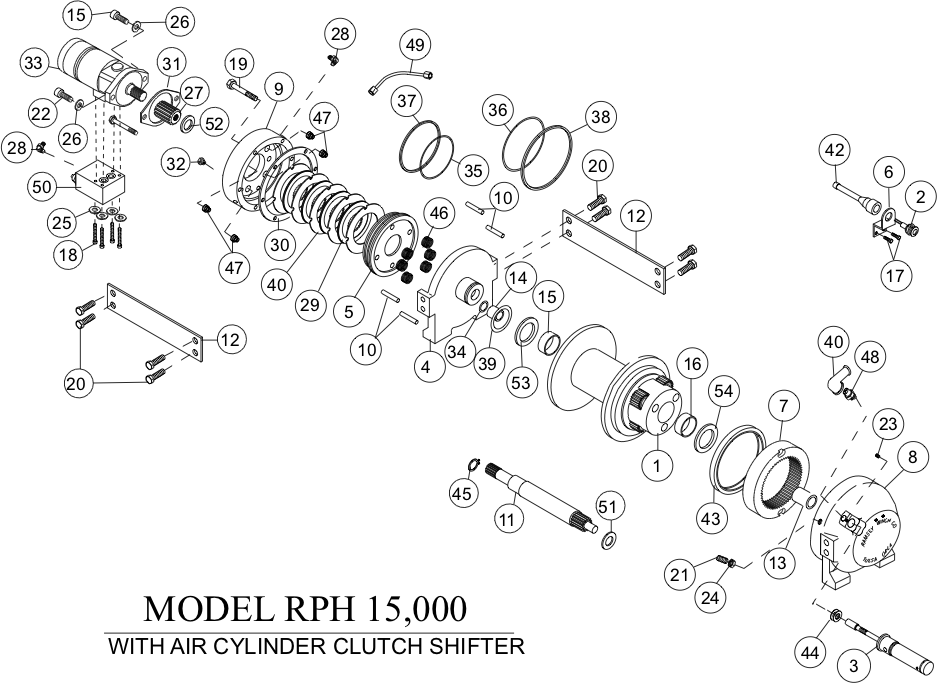

Ramsey Winch RPH-15000 Parts Diagram - Air ShiftRamsey Winch RPH-15000 Parts List - Air Shift
Tap or Click Images to Zoom
GASKET & SEAL KIT, RPH 15000
GASKET & SEAL KIT, RPH 15000
$169.60 $212.00
SKU 246049
Ramsey Winch Parts
GASKET - MOTOR FLANGE
$3.20 $4.00
SKU 442223
BREATHER
BREATHER
$5.20 $6.50
SKU 456038
PISTON-BRAKE, RPH-12000
PISTON-BRAKE, RPH-12000
$167.20 $209.00
SKU 306042
BRAKE HOUSING
BRAKE HOUSING
$332.80 $416.00
SKU 338302
DRUM ASSY-RPH-15000
DRUM ASSY-RPH-15000
$1,996.70 $2,435.00
SKU 234173
LIGHT, RPH8000, 8 FT LG
LIGHT, RPH8000, 8 FT LG
$120.54 $147.00
SKU 236020
SHIFTER ASSY-RPH12000/15000, AIR
SHIFTER ASSY-RPH12000/15000, AIR
$216.48 $264.00
SKU 276053
LIGHT MOUNTING BRACKET
LIGHT MOUNTING BRACKET
$10.25 $12.50
SKU 312526
RING GEAR RPH-15000
RING GEAR RPH-15000
$468.22 $571.00
SKU 334177
BRAKE PIN .375 DIA. X 2.125 LG.
BRAKE PIN .375 DIA. X 2.125 LG.
$5.40 $6.75
SKU 346045
ramsey winch parts
INPUT SHAFT, RPH 15000, FOR NRC INDUSTRIES
$264.04 $322.00
SKU 357518
Ramsey
BEARING
$42.60 $53.25
SKU 402120
BEARING-RPH 12
BEARING-RPH 12
$23.20 $29.00
SKU 402121
RAMSEY WINCH PARTS
CAPSCREW-1/4-20NC X 1/2
$2.05 $2.50
SKU 414036
BOLT 3/8-16NC X 2 1/2
BOLT 3/8-16NC X 2 1/2
$4.00 $5.00
SKU 414303
Ramsey Winch Parts
SETSCREW 3/8-16NC X 1
$1.80 $2.25
SKU 414926
CAPSCREW 1/2-13NC X 1 1/4 LG
CAPSCREW 1/2-13NC X 1 1/4 LG
$10.20 $12.75
SKU 414948
SET SCREW 1/4-20NC X 1/4
SET SCREW 1/4-20NC X 1/4
$2.26 $2.75
SKU 416016
NUT 3/8-16 NC
NUT 3/8-16 NC
$2.00 $2.50
SKU 418036
LOCKWASHER 1/2 ID
LOCKWASHER 1/2 ID
$3.40 $4.25
SKU 418218
MOTOR COUPLING, P/M, RPH-12000
MOTOR COUPLING, P/M, RPH-12000
$136.80 $171.00
SKU 431015
FITTING 7/16-20 90 degree
FITTING 7/16-20 90 degree
$50.00 $62.50
SKU 432018
DISC BRAKE, RPH12000
DISC BRAKE, RPH12000
$27.00 $33.75
SKU 438022
BRAKE HOUSING GASKET
BRAKE HOUSING GASKET
$17.00 $21.25
SKU 442220
HYDRAULIC MOTOR - ROSS
HYDRAULIC MOTOR - ROSS
$1,087.32 $1,326.00
SKU 458090
O-RING
O-RING
$2.80 $3.50
SKU 462056
O-RING AS-568-256
O-RING AS-568-256
$19.80 $24.75
SKU 462057
O-RING-AS-568-259
O-RING-AS-568-259
$23.20 $29.00
SKU 462058
O-RING-BACK-UP
O-RING-BACK-UP
$32.60 $40.75
SKU 462059
RING-BACK-UP
RING-BACK-UP
$40.20 $50.25
SKU 462060
O-RING 2.50 O.D.
O-RING 2.50 O.D.
$2.00 $2.50
SKU 462061
Ramsey Winch Parts
PLATE-SEPARATOR, BRAKE, RPH-12000
$8.40 $10.50
SKU 474111
RUBBER GROMMET
RUBBER GROMMET
$5.40 $6.75
SKU 482013
SEAL-V RING
SEAL-V RING
$17.63 $21.50
SKU 486101
AIR CYLINDER SHIM, RPH8000
AIR CYLINDER SHIM, RPH8000
$2.26 $2.75
SKU 488007
Ramsey Winch
SNAP RING
$1.80 $2.25
SKU 490037
SPRING-BRAKE
SPRING-BRAKE
$53.80 $67.25
SKU 494110
SPRING-RPH12000, PRESSURE TO BRAKE
SPRING-RPH12000, PRESSURE TO BRAKE
$1.80 $2.25
SKU 494112
SWITCH-PILOT LIGHT
SWITCH-PILOT LIGHT
$56.99 $69.50
SKU 504021
Ramsey Winch
TUBE ASSY 1/4OD, HYD.BRK., RPH-12000
$147.20 $184.00
SKU 509009
Ramsey
VALVE-MOTOR CONTROL
$1,256.80 $1,571.00
SKU 516013
Ramsey Winch Parts
THRUST WASHER,.063 THK. X 1.50 OD
$6.20 $7.75
SKU 518047
Ramsey Winch Parts
THRUST WASHER, 1.37 O.D., RPH-12000
$10.20 $12.75
SKU 518052
