Ramsey Winch Parts
Ramsey Winch Parts
<!-- Empty field [LinkGraphicDesc] -->
Planetary Hydraulic Winch Parts

Ramsey Winch RPH-20000 Parts

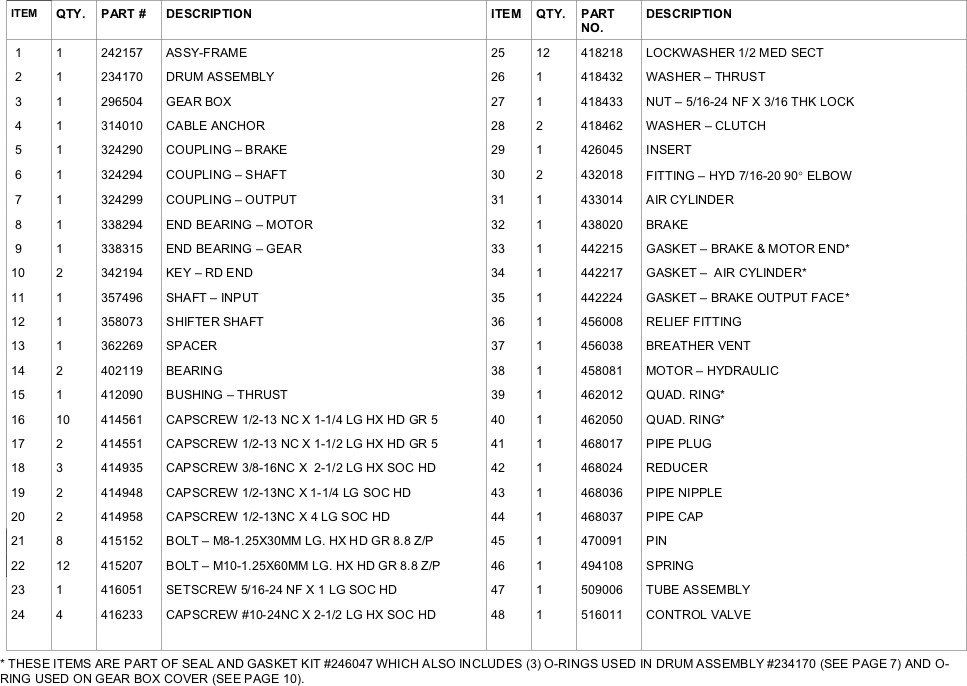

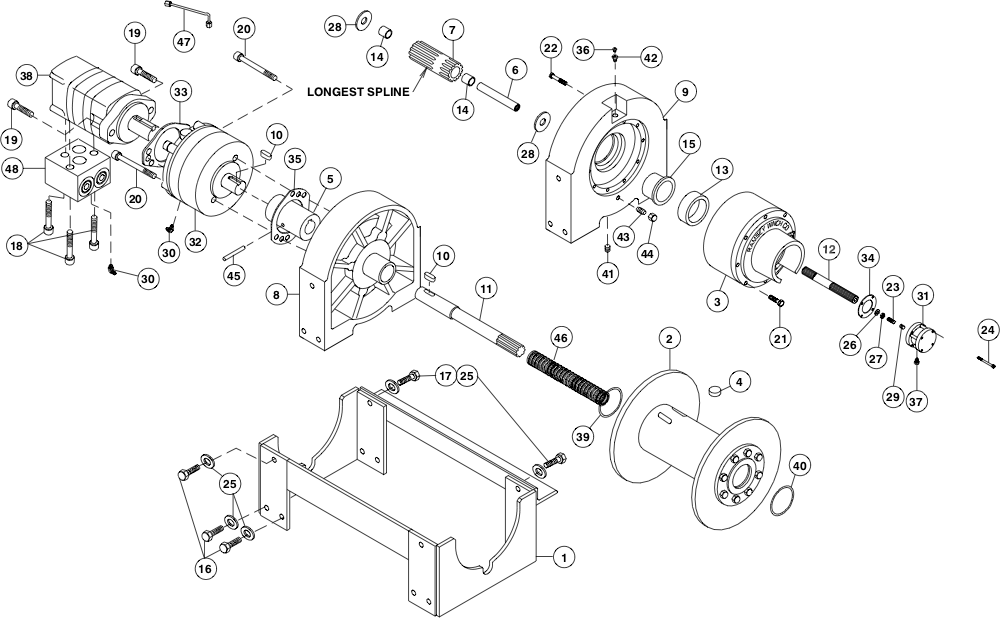

Ramsey Winch RPH-20000 Parts DiagramRamsey Winch RPH-20000 Parts List
Tap or Click Images to Zoom
Ramsey Winch Parts
GASKET & SEAL KIT RPH-20,000
$53.10 $64.75
SKU 246047
BREATHER
BREATHER
$5.20 $6.50
SKU 456038
CABLE ANCHOR #314010
CABLE ANCHOR #314010
$14.97 $18.25
SKU 314010
GEAR BOX ASSEMBLY RPH-25000
GEAR BOX ASSEMBLY RPH-25000
$1,717.08 $2,094.00
SKU 296504
COUPLING-BRK, RPH20,000
COUPLING-BRK, RPH20,000
$114.80 $140.00
SKU 324290
Ramsey Winch Parts
SHAFT-INPUT SHIFTER,RPH20/25,QGBX
$484.62 $591.00
SKU 358073
BEARING
BEARING
$17.63 $21.50
SKU 402119
THRUST BUSHING
THRUST BUSHING
$55.76 $68.00
SKU 412090
CAPSCREW 1/2-13NC X 1 1/4 LG
CAPSCREW 1/2-13NC X 1 1/4 LG
$10.20 $12.75
SKU 414948
SETSCREW 5/16-24NF X 1
SETSCREW 5/16-24NF X 1
$1.23 $1.50
SKU 416051
SCREW #10-24NC X 2 1/2
SCREW #10-24NC X 2 1/2
$1.23 $1.50
SKU 416233
LOCKWASHER 1/2 ID
LOCKWASHER 1/2 ID
$3.40 $4.25
SKU 418218
THRUST WASHER NYLATRON 5/16 ID
THRUST WASHER NYLATRON 5/16 ID
$3.49 $4.25
SKU 418432
LOCK NUT 5/16-24NF X 3/16 THK.
LOCK NUT 5/16-24NF X 3/16 THK.
$13.74 $16.75
SKU 418433
WASHER CLUTCH 2.125 OD X .878 ID X .070
WASHER CLUTCH 2.125 OD X .878 ID X .070
$41.62 $50.75
SKU 418462
THREADED INSERT .312-24NF
THREADED INSERT .312-24NF
$16.20 $19.75
SKU 426045
FITTING 7/16-20 90 degree
FITTING 7/16-20 90 degree
$50.00 $62.50
SKU 432018
Ramsey Winch Parts
AIR CYLINDER
$390.32 $476.00
SKU 433014
BRAKE-MODULAR
BRAKE-MODULAR
$1,753.16 $2,138.00
SKU 438020
GASKET
GASKET
$6.77 $8.25
SKU 442215
AIR CYLINDER GASKET .031 THK.
AIR CYLINDER GASKET .031 THK.
$2.26 $2.75
SKU 442217
GASKET RPH20/25
GASKET RPH20/25
$9.43 $11.50
SKU 442224
RELIEF FITTING -1/8-27PFT
RELIEF FITTING -1/8-27PFT
$10.00 $12.50
SKU 456008
HYDRAULIC MOTOR
HYDRAULIC MOTOR
$660.92 $806.00
SKU 458081
QUAD-RING 2 5/8OD X 2 1/4ID X 3/16
QUAD-RING 2 5/8OD X 2 1/4ID X 3/16
$6.77 $8.25
SKU 462012
QUAD-RING
QUAD-RING
$4.72 $5.75
SKU 462050
PIPE PLUG 1/4-18 NPTF HEX
PIPE PLUG 1/4-18 NPTF HEX
$6.20 $7.75
SKU 468017
REDUCER 1/8-1/4 NPTF
REDUCER 1/8-1/4 NPTF
$38.00 $47.50
SKU 468024
CLUTCH SHIFTER SPRING
CLUTCH SHIFTER SPRING
$46.33 $56.50
SKU 494108
MOTOR CONTROL VALVE
MOTOR CONTROL VALVE
$1,252.96 $1,528.00
SKU 516011
