Ramsey Winch RPH 42.2 Parts - Air Shift

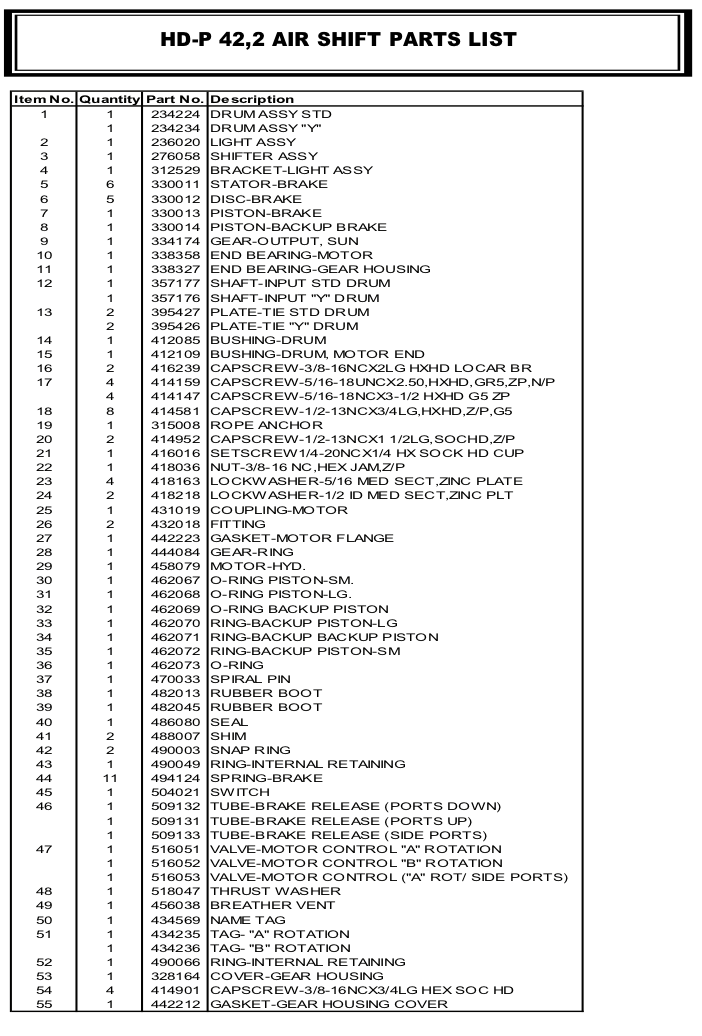

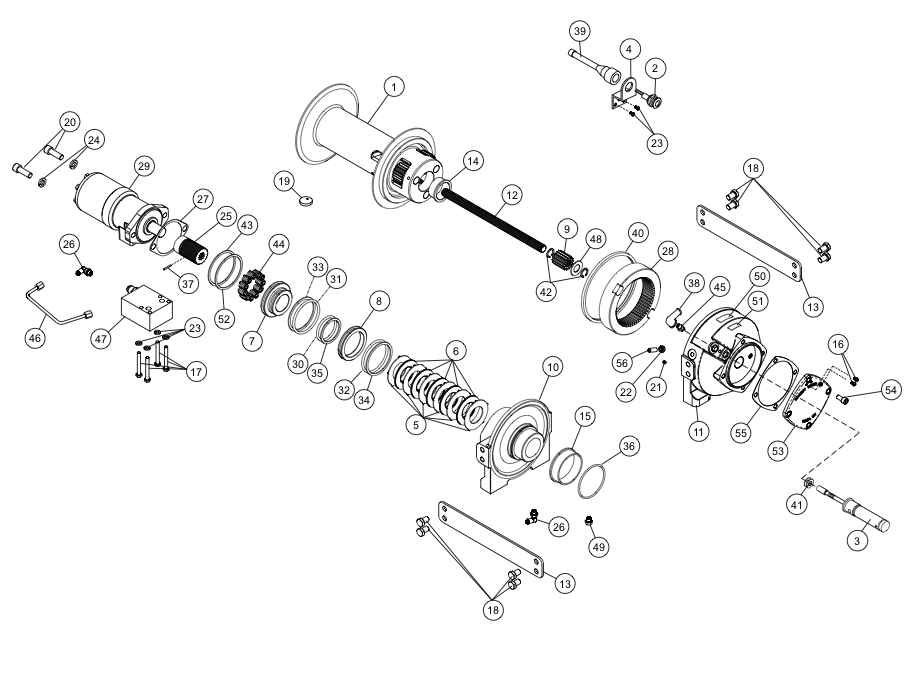

Ramsey Winch RPH 42.2 Parts Diagram - Air ShiftRamsey Winch RPH 42.2 Parts List - Air Shift
Tap or Click Images to Zoom
LIGHT, RPH8000, 8 FT LG
LIGHT, RPH8000, 8 FT LG
$120.54 $147.00
SKU 236020
AIR SHIFTER ASSEMBLY, RPH 8000 & 10000
AIR SHIFTER ASSEMBLY, RPH 8000 & 10000
$205.00 $250.00
SKU 276058
RUBBER GROMMET
RUBBER GROMMET
$5.40 $6.75
SKU 482013
AIR CYLINDER SHIM, RPH8000
AIR CYLINDER SHIM, RPH8000
$2.26 $2.75
SKU 488007
SWITCH-PILOT LIGHT
SWITCH-PILOT LIGHT
$56.99 $69.50
SKU 504021
Ramsey Winch Parts
BUSHING
$29.93 $36.50
SKU 412109
O-RING
O-RING
$3.49 $4.25
SKU 462073
END BEARING - MOTOR
END BEARING - MOTOR
$159.08 $194.00
SKU 338358
Ramsey Winch Parts
GASKET - MOTOR FLANGE
$3.20 $4.00
SKU 442223
RAMSEY Tube - Brake Release (Ports Down) 509132
RAMSEY Tube - Brake Release (Ports Down) 509132
$47.56 $58.00
SKU 509132
RAMSEY PIN - SPIROL 470033
RAMSEY PIN - SPIROL 470033
$3.40 $4.25
SKU 470033
BREATHER
BREATHER
$5.20 $6.50
SKU 456038
ROPE ANCHOR
ROPE ANCHOR
$11.48 $14.00
SKU 315008
COVER GEAR HOUSING, HD-P10000
COVER GEAR HOUSING, HD-P10000
$87.74 $107.00
SKU 328164
Ramsey Parts
Average rating:
average rating 100%
BRAKE STATOR, HD-P8000
$4.72 $5.75
SKU 330011
DISC-BRAKE, HD-P8000
DISC-BRAKE, HD-P8000
$17.02 $20.75
SKU 330012
PISTON-BRAKE, MACHINED, HD-P8000
PISTON-BRAKE, MACHINED, HD-P8000
$100.04 $122.00
SKU 330013
BRAKE PISTON-BACKUP HD-P8000
BRAKE PISTON-BACKUP HD-P8000
$51.05 $62.25
SKU 330014
OUTPUT GEAR RPH-8000
OUTPUT GEAR RPH-8000
$52.07 $63.50
SKU 334174
GEAR HSG. END BEARING
GEAR HSG. END BEARING
$246.82 $301.00
SKU 338327
INPUT SHAFT, Y-DRUM, HD-P8000
INPUT SHAFT, Y-DRUM, HD-P8000
$152.52 $186.00
SKU 357176
Ramsey Winch
INPUT SHAFT, HD-P8000
$150.06 $183.00
SKU 357177
PLATE-TIE, HD-P8000, Y-DRUM
PLATE-TIE, HD-P8000, Y-DRUM
$53.80 $67.25
SKU 395426
DRUM BUSHING GEAR END
DRUM BUSHING GEAR END
$59.80 $74.75
SKU 412085
CAPSCREW 5/16-18NC X 3-1/2
CAPSCREW 5/16-18NC X 3-1/2
$3.19 $4.25
SKU 414147
CAPSCREW 1/2-13NC X 3/4LG
CAPSCREW 1/2-13NC X 3/4LG
$2.26 $2.75
SKU 414581
CAPSCREW 1/2-13NC X 1 1/2LG
CAPSCREW 1/2-13NC X 1 1/2LG
$3.49 $4.25
SKU 414952
SET SCREW 1/4-20NC X 1/4
SET SCREW 1/4-20NC X 1/4
$2.26 $2.75
SKU 416016
SCREW #10-24NC X 3/8
SCREW #10-24NC X 3/8
$1.23 $1.50
SKU 416239
NUT 3/8-16 NC
NUT 3/8-16 NC
$2.00 $2.50
SKU 418036
LOCKWASHER 5/16
LOCKWASHER 5/16
$1.80 $2.25
SKU 418163
LOCKWASHER 1/2 ID
LOCKWASHER 1/2 ID
$3.40 $4.25
SKU 418218
Ramsey Winch Parts
MOTOR COUPLING, HD-P8000
$56.58 $69.00
SKU 431019
FITTING 7/16-20 90 degree
FITTING 7/16-20 90 degree
$50.00 $62.50
SKU 432018
GASKET-BRK HOUSING .031THK.
GASKET-BRK HOUSING .031THK.
$2.26 $2.75
SKU 442212
HYDRAULIC MOTOR, WHITE 24.9 CU IN
HYDRAULIC MOTOR, WHITE 24.9 CU IN
$433.78 $529.00
SKU 458079
O-RING 2.225 ID X .210 THK, 2-331
O-RING 2.225 ID X .210 THK, 2-331
$3.49 $4.25
SKU 462067
O-RING 3.10 ID X .210 THK
O-RING 3.10 ID X .210 THK
$3.49 $4.25
SKU 462068
O-RING 2.975 ID X .210 THK, 2-337
O-RING 2.975 ID X .210 THK, 2-337
$3.20 $4.00
SKU 462069
RING-BACKUP 3.143 ID X .076 THK, 8-338
RING-BACKUP 3.143 ID X .076 THK, 8-338
$3.49 $4.25
SKU 462070
RING-BACKUP, 3.018 ID X .076 THK, 8-337
RING-BACKUP, 3.018 ID X .076 THK, 8-337
$3.49 $4.25
SKU 462071
RING-BACKUP, 2.268 ID X .076 THK, 8-331
RING-BACKUP, 2.268 ID X .076 THK, 8-331
$3.49 $4.25
SKU 462072
SEAL-GH
SEAL-GH
$69.40 $86.75
SKU 486080
SNAP RING
SNAP RING
$9.60 $12.00
SKU 490003
RETAINING RING-INTERNAL
RETAINING RING-INTERNAL
$4.72 $5.75
SKU 490049
RETAINING RING-INTERNAL
RETAINING RING-INTERNAL
$23.17 $28.25
SKU 490066
SPRING-BRAKE, HD-P8000
SPRING-BRAKE, HD-P8000
$5.54 $6.75
SKU 494124
TUBE HYDRAULIC BRAKE RELEASE, HD-P8000 (VALVE MTD UP)
TUBE HYDRAULIC BRAKE RELEASE, HD-P8000 (VALVE MTD UP)
$47.56 $58.00
SKU 509131
COUNTER BALANCE VALVE
COUNTER BALANCE VALVE
$442.80 $540.00
SKU 516051
RAMSEY
COUNTER BALANCE VALVE, B-ROTATION, W/ TAMPER PROOF CARTRIDGE CAP
$387.04 $472.00
SKU 516052
Ramsey Winch Parts
THRUST WASHER,.063 THK. X 1.50 OD
$6.20 $7.75
SKU 518047
