Ramsey Winch Parts
Ramsey Winch Parts

Ramsey Winch RPH-53,3 Parts - Air Shift

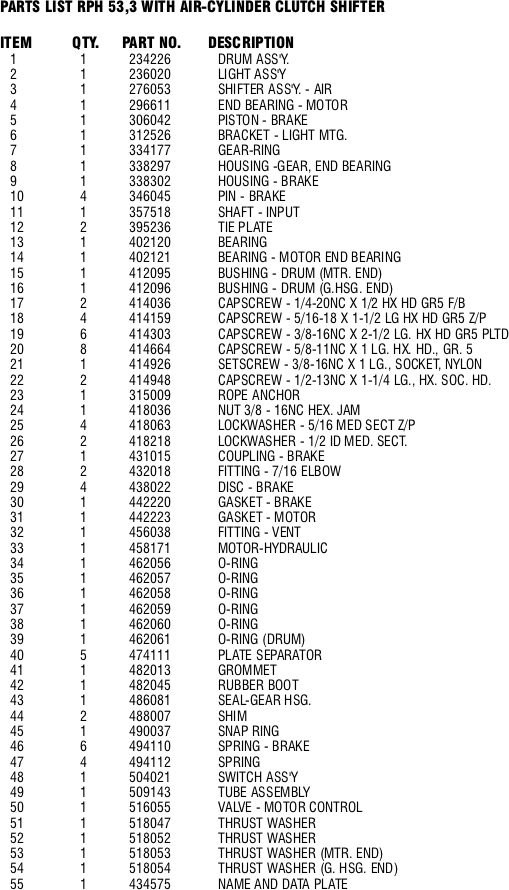

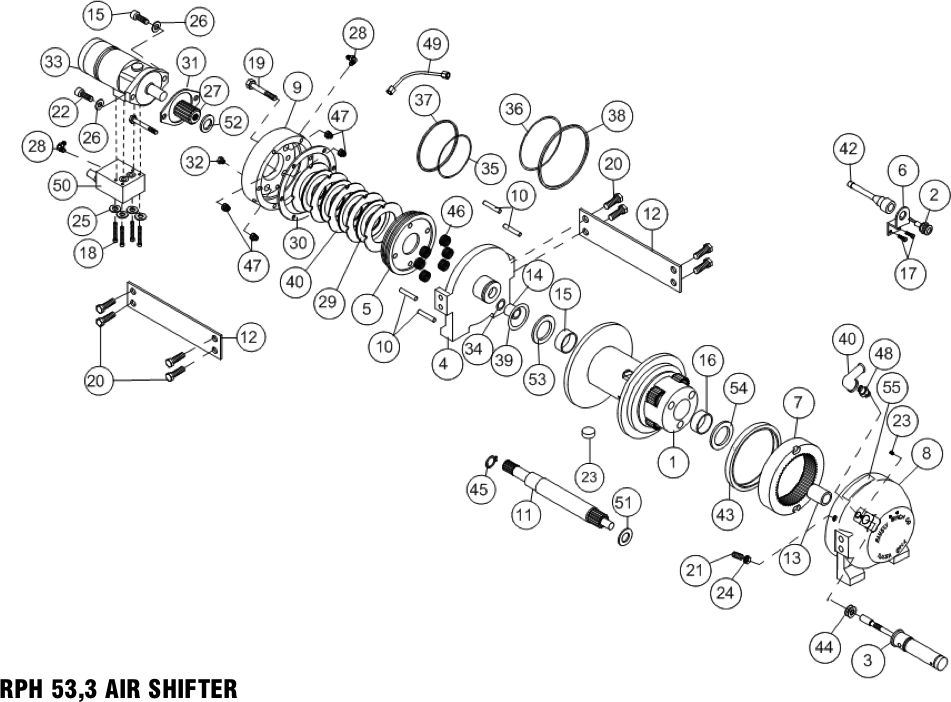

Ramsey Winch RPH-53,3 Parts Diagram - Air ShiftRamsey Winch RPH-53,3 Parts List - Air Shift
Tap or Click Images to Zoom
Ramsey Winch Parts
GASKET - MOTOR FLANGE
$3.49 $4.25
SKU 442223
BREATHER
BREATHER
$5.54 $6.75
SKU 456038
PISTON-BRAKE, RPH-12000
PISTON-BRAKE, RPH-12000
$186.96 $228.00
SKU 306042
BRAKE HOUSING
BRAKE HOUSING
$372.28 $454.00
SKU 338302
LIGHT, RPH8000, 8 FT LG
LIGHT, RPH8000, 8 FT LG
$120.54 $147.00
SKU 236020
SHIFTER ASSY-RPH12000/15000, AIR
SHIFTER ASSY-RPH12000/15000, AIR
$216.48 $264.00
SKU 276053
LIGHT MOUNTING BRACKET
LIGHT MOUNTING BRACKET
$10.25 $12.50
SKU 312526
Ramsey
ROPE ANCHOR
$27.88 $34.00
SKU 315009
RING GEAR RPH-15000
RING GEAR RPH-15000
$468.22 $571.00
SKU 334177
BRAKE PIN .375 DIA. X 2.125 LG.
BRAKE PIN .375 DIA. X 2.125 LG.
$4.72 $5.75
SKU 346045
ramsey winch parts
INPUT SHAFT, RPH 15000, FOR NRC INDUSTRIES
$264.04 $322.00
SKU 357518
Ramsey
BEARING
$8.20 $10.00
SKU 402120
BEARING-RPH 12
BEARING-RPH 12
$8.20 $10.00
SKU 402121
RAMSEY WINCH PARTS
CAPSCREW-1/4-20NC X 1/2
$2.05 $2.50
SKU 414036
BOLT 3/8-16NC X 2 1/2
BOLT 3/8-16NC X 2 1/2
$1.23 $1.50
SKU 414303
Ramsey Winch Parts
SETSCREW 3/8-16NC X 1
$2.26 $2.75
SKU 414926
CAPSCREW 1/2-13NC X 1 1/4 LG
CAPSCREW 1/2-13NC X 1 1/4 LG
$3.49 $4.25
SKU 414948
NUT 3/8-16 NC
NUT 3/8-16 NC
$2.26 $2.75
SKU 418036
LOCKWASHER 1/2 ID
LOCKWASHER 1/2 ID
$1.23 $1.50
SKU 418218
MOTOR COUPLING, P/M, RPH-12000
MOTOR COUPLING, P/M, RPH-12000
$46.33 $56.50
SKU 431015
FITTING 7/16-20 90 degree
FITTING 7/16-20 90 degree
$17.63 $21.50
SKU 432018
DISC BRAKE, RPH12000
DISC BRAKE, RPH12000
$31.37 $38.25
SKU 438022
BRAKE HOUSING GASKET
BRAKE HOUSING GASKET
$5.54 $6.75
SKU 442220
O-RING
O-RING
$1.23 $1.50
SKU 462056
O-RING AS-568-256
O-RING AS-568-256
$6.77 $8.25
SKU 462057
O-RING-AS-568-259
O-RING-AS-568-259
$8.20 $10.00
SKU 462058
O-RING-BACK-UP
O-RING-BACK-UP
$11.48 $14.00
SKU 462059
RING-BACK-UP
RING-BACK-UP
$13.74 $16.75
SKU 462060
O-RING 2.50 O.D.
O-RING 2.50 O.D.
$1.23 $1.50
SKU 462061
Ramsey Winch Parts
PLATE-SEPARATOR, BRAKE, RPH-12000
$9.43 $11.50
SKU 474111
RUBBER GROMMET
RUBBER GROMMET
$3.49 $4.25
SKU 482013
Ramsey Winch
GEAR HOUSING SEAL
$17.63 $21.50
SKU 486081
AIR CYLINDER SHIM, RPH8000
AIR CYLINDER SHIM, RPH8000
$2.26 $2.75
SKU 488007
Ramsey Winch
SNAP RING
$2.26 $2.75
SKU 490037
SPRING-BRAKE
SPRING-BRAKE
$18.45 $22.50
SKU 494110
SPRING-RPH12000, PRESSURE TO BRAKE
SPRING-RPH12000, PRESSURE TO BRAKE
$2.26 $2.75
SKU 494112
SWITCH-PILOT LIGHT
SWITCH-PILOT LIGHT
$56.99 $69.50
SKU 504021
Ramsey Winch Parts
THRUST WASHER,.063 THK. X 1.50 OD
$2.26 $2.75
SKU 518047
Ramsey Winch Parts
THRUST WASHER, 1.37 O.D., RPH-12000
$3.49 $4.25
SKU 518052
