Planetary Hydraulic Winch Parts
Ramsey Winch Parts
Ramsey Winch Parts

Ramsey Winch Wildcat WC 130R Parts

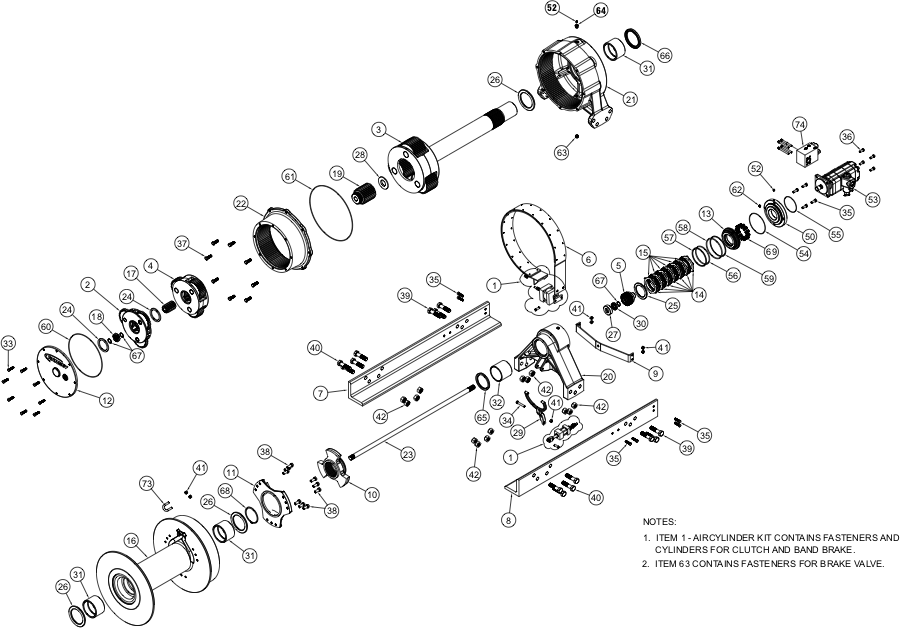

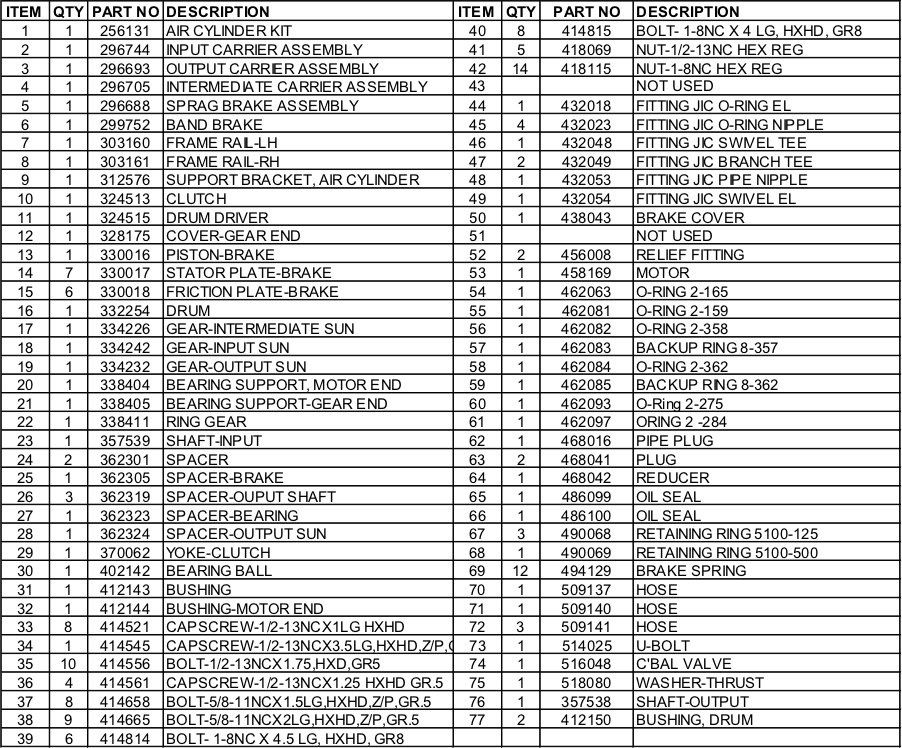

Ramsey Winch Wildcat WC 130R Parts DiagramRamsey Winch Wildcat WC 130R Parts List
Tap or Click Images to Zoom

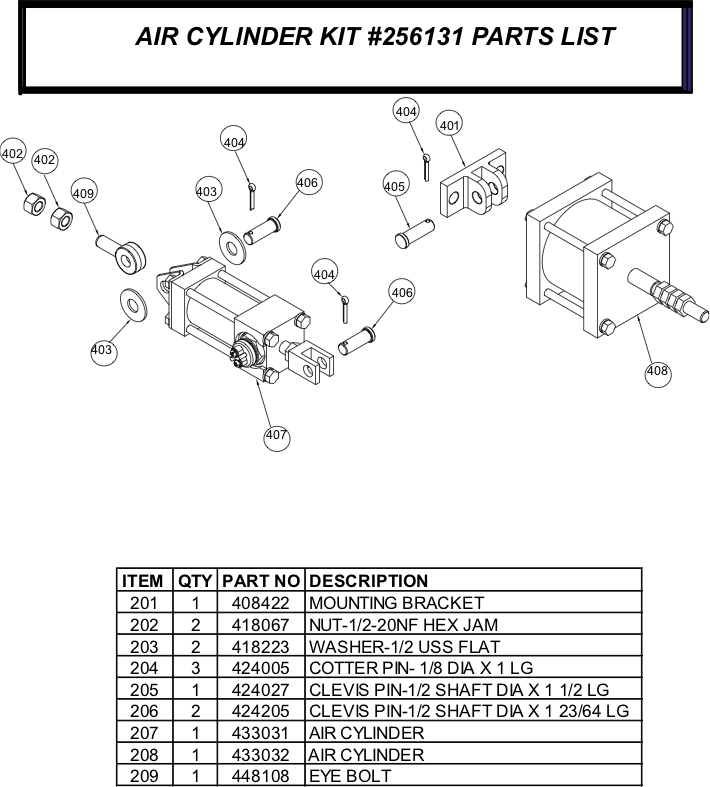

256131 Air Cylinder Kit Parts List

CLUTCH, DRUM SIDE, WILDCAT 100K
CLUTCH, DRUM SIDE, WILDCAT 100K
$432.14 $527.00
SKU 324515
COVER-GEAR END -50K
COVER-GEAR END -50K
$719.14 $877.00
SKU 328175
PISTON BRAKE WILDCAT
PISTON BRAKE WILDCAT
$329.64 $402.00
SKU 330016
STATOR PLATE-BRAKE
STATOR PLATE-BRAKE
$9.43 $11.50
SKU 330017
Ramsey Winch
BRAKE FRICTION PLATE
$6.77 $8.25
SKU 330018
Ramsey Winch
OUTPUT GEAR 50K
$86.92 $106.00
SKU 334226
SPACER-INPUT PLANETARY-80K
SPACER-INPUT PLANETARY-80K
$264.04 $322.00
SKU 362301
BRAKE SPACER WILDCAT
BRAKE SPACER WILDCAT
$40.80 $49.75
SKU 362305
Ramsey Winch Parts
SPACER-BEARING-WILDCAT 130K
$60.07 $73.25
SKU 362323
SPACER-OUTPUT SUN GEAR-WILDCAT 130K
SPACER-OUTPUT SUN GEAR-WILDCAT 130K
$126.28 $154.00
SKU 362324
Ramsey
CLUTCH-YOKE 80K WINCH
$137.76 $168.00
SKU 370062
BALL BEARING (INPUT SHAFT SUPPORT)
BALL BEARING (INPUT SHAFT SUPPORT)
$9.43 $11.50
SKU 402142
BUSHING-DRUM, WILDCAT 100K
BUSHING-DRUM, WILDCAT 100K
$317.34 $387.00
SKU 412143
MOTOR END BUSHING, WILDCAT 100K
MOTOR END BUSHING, WILDCAT 100K
$156.62 $191.00
SKU 412144
CAPSCREW 1/2-13NC X 1LG
CAPSCREW 1/2-13NC X 1LG
$2.26 $2.75
SKU 414521
NUT-1/2-20NF HEX JAM
NUT-1/2-20NF HEX JAM
$2.26 $2.75
SKU 418067
HEX NUT-1/2-13NC
HEX NUT-1/2-13NC
$2.26 $2.75
SKU 418069
COTTER PIN 1/8DIA X 1 LG
COTTER PIN 1/8DIA X 1 LG
$1.23 $1.50
SKU 424005
CLEVIS PIN 1/2 X 1 23/64LG
CLEVIS PIN 1/2 X 1 23/64LG
$4.72 $5.75
SKU 424205
FITTING 7/16-20 90 degree
FITTING 7/16-20 90 degree
$17.63 $21.50
SKU 432018
AIR CYLINDER CLUTCH, ENGAGE/DISENGAGE, WILDCAT SERIES
AIR CYLINDER CLUTCH, ENGAGE/DISENGAGE, WILDCAT SERIES
$366.67 $407.86
SKU 433031
RELIEF FITTING -1/8-27PFT
RELIEF FITTING -1/8-27PFT
$5.54 $6.75
SKU 456008
O-RING
O-RING
$4.72 $5.75
SKU 462063
O-RING 2-159
O-RING 2-159
$2.26 $2.75
SKU 462081
O-RING 2-358
O-RING 2-358
$1.23 $1.50
SKU 462082
BACKUP RING 8-357
BACKUP RING 8-357
$4.72 $5.75
SKU 462083
O-RING 2-362
O-RING 2-362
$2.26 $2.75
SKU 462084
O-Ring 2-280
O-Ring 2-280
$2.46 $3.00
SKU 462093
ORING- 18.00 ID X 18.25 OD X .125 THICK, -284
ORING- 18.00 ID X 18.25 OD X .125 THICK, -284
$6.77 $8.25
SKU 462097
PIPE PLUG 1/8-27 NPTF
PIPE PLUG 1/8-27 NPTF
$2.26 $2.75
SKU 468016
PLUG-3/4-16 (-8 SAE) WITH O-RING
PLUG-3/4-16 (-8 SAE) WITH O-RING
$2.26 $2.75
SKU 468041
REDUCER 3/4-16 O-RING X 1/8NPTF
REDUCER 3/4-16 O-RING X 1/8NPTF
$24.40 $29.75
SKU 468042
Ramsey
OIL SEAL
$76.26 $93.00
SKU 486099
OIL SEAL
OIL SEAL
$124.64 $152.00
SKU 486100
RING-RETAINING, TRUARC 5100-100
RING-RETAINING, TRUARC 5100-100
$1.23 $1.50
SKU 490068
RING-RETAINER, 5.00 OD SHAFT, TRUARC #5100-500
RING-RETAINER, 5.00 OD SHAFT, TRUARC #5100-500
$21.32 $26.00
SKU 490069
SPRING-BRAKE- 385LB IN/IN
SPRING-BRAKE- 385LB IN/IN
$2.26 $2.75
SKU 494129
U BOLT WIRE ROPE WC 80K
U BOLT WIRE ROPE WC 80K
$76.26 $93.00
SKU 514025
COUNTER BALANCE BLOCK WC
COUNTER BALANCE BLOCK WC
$1,387.44 $1,692.00
SKU 516048
Ramsey Winch Parts
THRUST WASHER 1.06 X 2.50 X .105
$16.20 $19.75
SKU 518080
BACKUP RING 8-362
BACKUP RING 8-362
$5.54 $6.75
SKU 462085
