Ramsey Winch Wildcat WC 50R Parts

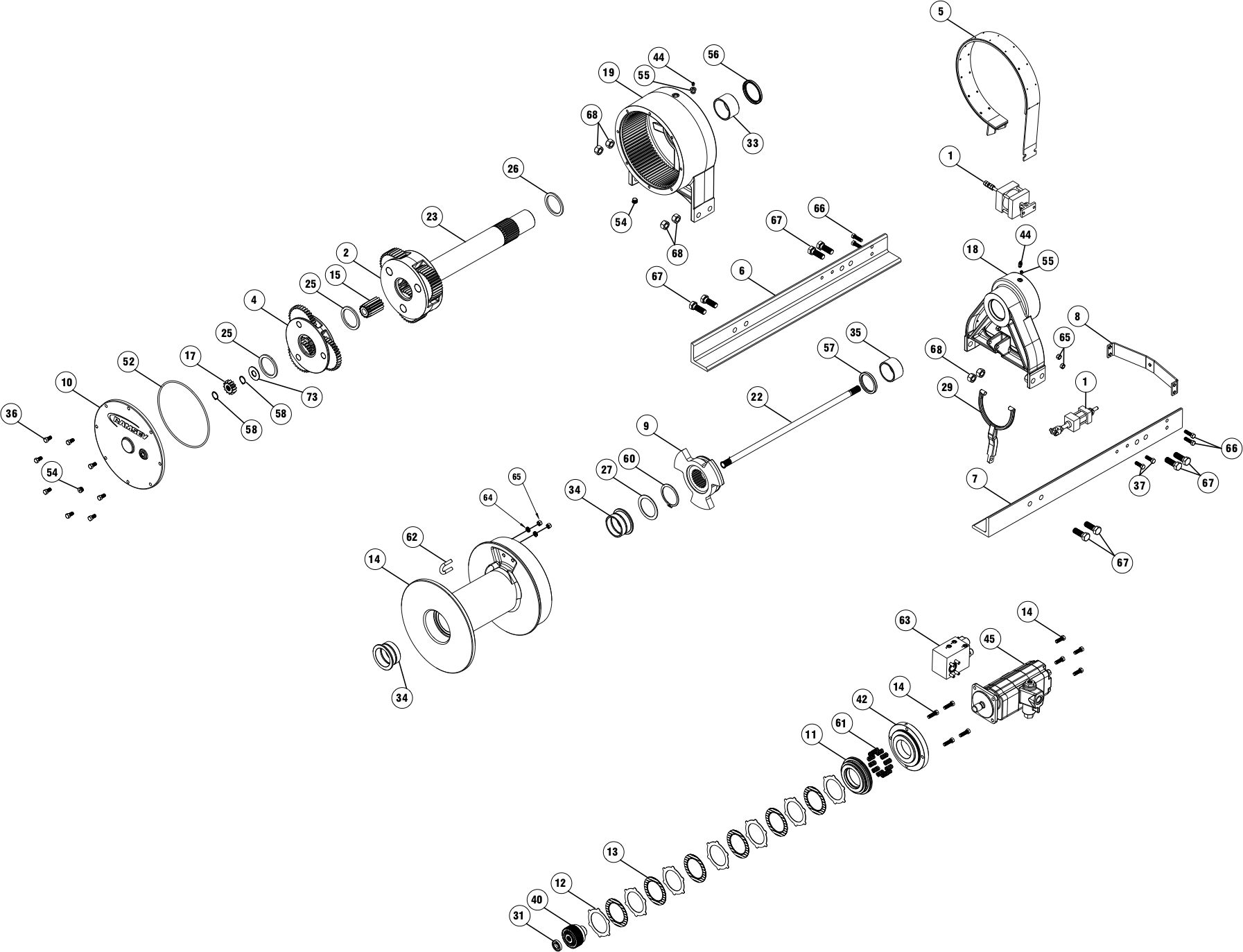

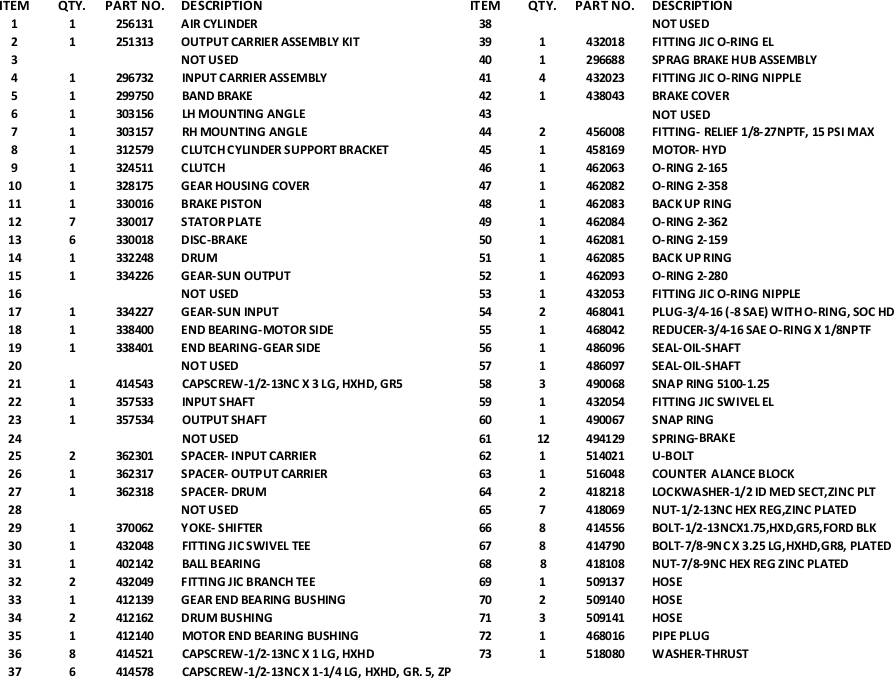

Ramsey Winch Wildcat WC 50R Parts DiagramRamsey Winch Wildcat WC 50R Parts List
Tap or Click Images to Zoom

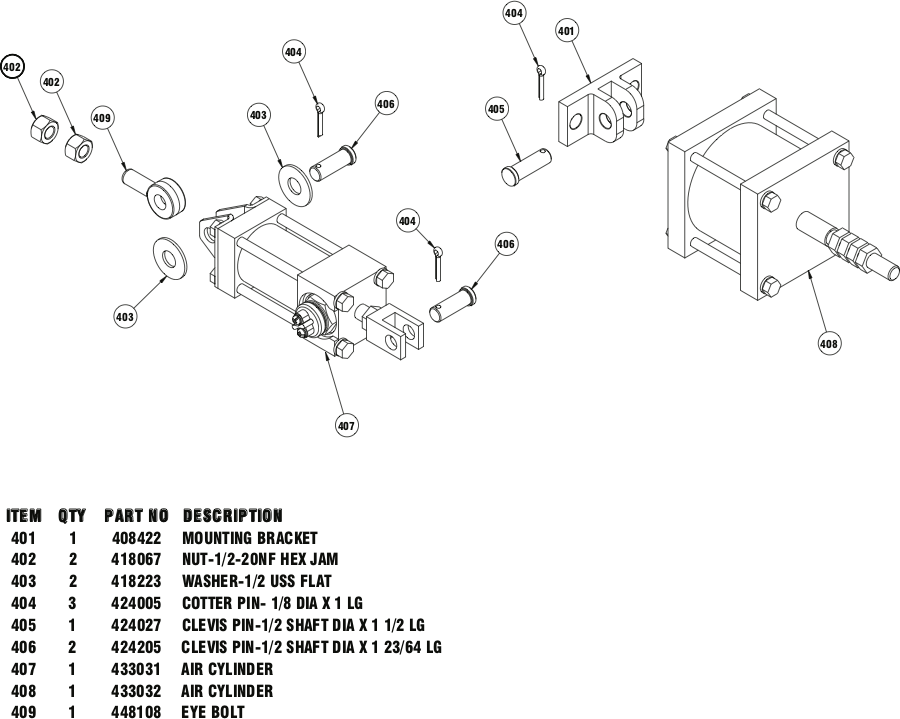

AIR CYLINDER KIT - WILDCAT
AIR CYLINDER KIT - WILDCAT
$874.94 $1,067.00
SKU 256131
COVER-GEAR END -50K
COVER-GEAR END -50K
$719.14 $877.00
SKU 328175
PISTON BRAKE WILDCAT
PISTON BRAKE WILDCAT
$329.64 $402.00
SKU 330016
STATOR PLATE-BRAKE
STATOR PLATE-BRAKE
$9.43 $11.50
SKU 330017
Ramsey Winch
BRAKE FRICTION PLATE
$6.77 $8.25
SKU 330018
Ramsey Winch Parts
OUTPUT GEAR 50K
$86.92 $106.00
SKU 334226
Ramsey Winch Parts
SUN GEAR INPUT -50K
$92.66 $113.00
SKU 334227
SPACER-INPUT PLANETARY-80K
SPACER-INPUT PLANETARY-80K
$264.04 $322.00
SKU 362301
SPACER-OUTPUT CARRIER-50K
SPACER-OUTPUT CARRIER-50K
$53.10 $64.75
SKU 362317
DRUM SPACER-50K
DRUM SPACER-50K
$49.61 $60.50
SKU 362318
Ramsey
CLUTCH-YOKE 80K WINCH
$137.76 $168.00
SKU 370062
BALL BEARING (INPUT SHAFT SUPPORT)
BALL BEARING (INPUT SHAFT SUPPORT)
$9.43 $11.50
SKU 402142
BUSHING-GEAR END -50K
BUSHING-GEAR END -50K
$89.38 $109.00
SKU 412139
DRUM BUSHING, WILDCAT 50K
DRUM BUSHING, WILDCAT 50K
$81.80 $99.75
SKU 412162
CAPSCREW 1/2-13NC X 1LG
CAPSCREW 1/2-13NC X 1LG
$2.26 $2.75
SKU 414521
NUT-1/2-20NF HEX JAM
NUT-1/2-20NF HEX JAM
$2.26 $2.75
SKU 418067
HEX NUT-1/2-13NC
HEX NUT-1/2-13NC
$2.26 $2.75
SKU 418069
LOCKWASHER 1/2 ID
LOCKWASHER 1/2 ID
$3.40 $4.25
SKU 418218
COTTER PIN 1/8DIA X 1 LG
COTTER PIN 1/8DIA X 1 LG
$1.23 $1.50
SKU 424005
CLEVIS PIN 1/2 X 1 23/64LG
CLEVIS PIN 1/2 X 1 23/64LG
$4.72 $5.75
SKU 424205
FITTING 7/16-20 90 degree
FITTING 7/16-20 90 degree
$50.00 $62.50
SKU 432018
AIR CYLINDER CLUTCH, ENGAGE/DISENGAGE, WILDCAT SERIES
AIR CYLINDER CLUTCH, ENGAGE/DISENGAGE, WILDCAT SERIES
$366.67 $407.86
SKU 433031
RELIEF FITTING -1/8-27PFT
RELIEF FITTING -1/8-27PFT
$10.00 $12.50
SKU 456008
O-RING
O-RING
$4.72 $5.75
SKU 462063
O-RING 2-159
O-RING 2-159
$2.26 $2.75
SKU 462081
O-RING 2-358
O-RING 2-358
$1.23 $1.50
SKU 462082
BACKUP RING 8-357
BACKUP RING 8-357
$4.72 $5.75
SKU 462083
O-RING 2-362
O-RING 2-362
$2.26 $2.75
SKU 462084
O-Ring 2-280
O-Ring 2-280
$2.46 $3.00
SKU 462093
PIPE PLUG 1/8-27 NPTF
PIPE PLUG 1/8-27 NPTF
$2.26 $2.75
SKU 468016
PLUG-3/4-16 (-8 SAE) WITH O-RING
PLUG-3/4-16 (-8 SAE) WITH O-RING
$2.26 $2.75
SKU 468041
REDUCER 3/4-16 O-RING X 1/8NPTF
REDUCER 3/4-16 O-RING X 1/8NPTF
$24.40 $29.75
SKU 468042
SHAFT OIL SEAL
SHAFT OIL SEAL
$26.65 $32.50
SKU 486096
Ramsey Winch
SHAFT OIL SEAL
$62.73 $76.50
SKU 486097
RING-RETAINING, TRUARC 5100-350
RING-RETAINING, TRUARC 5100-350
$11.48 $14.00
SKU 490067
RING-RETAINING, TRUARC 5100-100
RING-RETAINING, TRUARC 5100-100
$1.23 $1.50
SKU 490068
SPRING-BRAKE- 385LB IN/IN
SPRING-BRAKE- 385LB IN/IN
$2.26 $2.75
SKU 494129
Ramsey Winch Parts
U-BOLT, WILDCAT 50/60K
$70.73 $86.25
SKU 514021
COUNTER BALANCE BLOCK WC
COUNTER BALANCE BLOCK WC
$1,387.44 $1,692.00
SKU 516048
Ramsey Winch Parts
THRUST WASHER 1.06 X 2.50 X .105
$16.20 $19.75
SKU 518080
BACKUP RING 8-362
BACKUP RING 8-362
$5.54 $6.75
SKU 462085
