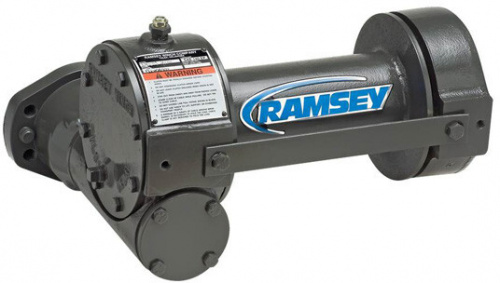

Ramsey Winch - H7B with 3,000lbs pull
+ Tap or click image to enlarge
Hydraulic Worm Gear Winch
$2,199.10
$2,345.70
SKU 120064
Product Details
| This Winch's Configuration | |
|---|---|
| Mounting Configuration | FOLS (Front Overwound Left Side) |
| Line Pull Rating (lbs.) | 3,000 |
| Gear Ratio | 38:01:00 |
| Drum Length | 3-1/2” |
| Clutch | None |
- Recommended cable 1/4”
- Blocked Clutch
- Meets SAE-J706
- Made in the USA
Specifications
| Rated Line Pull | 3,000 Lbs / 1,361 Kg |
| Note | Rated line pull is based on the first layer of cable. |
| 1st Layer Line Speed | 16.7 Ft/Min / 5.1 M/Min |
| Gear Ratio | 38:1 |
| Weight w/o Cable | 35 Lbs / 16 Kg |
| Brake | "Optional auxiliary brake is available", Yes – brake is self-locking |
| Cable | None |
| Drum Size (L x F x B) | 3.50 x 5.50 x 3.00 In / 88.9 x 139.7 x 76.2 MM |
| Cable Capacity | 70 Ft / 21.3 M |
| Recommend Cable Size | 1/4 In / 6.4 MM |
| Hydraulic Pressure Required | 750 PSI (52 Bar) |
| Hydraulic Flow Required | 15.0 GPM (57 LPM) |
| Motor Size | 4.5 Cu. In. (74 cc) |
| Additional Motor Options | Call Factory |
| Clutch Type | Blocked |
| Clutch Control | None |
