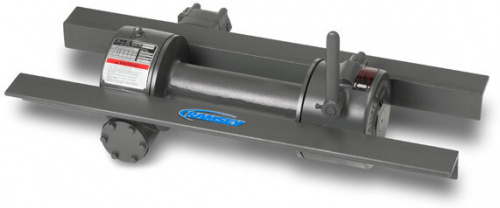

Ramsey Winch - HG400 with 10,000lbs pull

Ramsey Winch - HG400 with 10,000lbs pull
+ Tap or click image to enlarge
Hydraulic Worm Gear Winch
$3,713.69 $4,369.05
SKU 120244
Free Shipping
Ramsey Winches are built to order currently, due to supply limits. It may be up to 16-24 weeks for an order to be shipped. If you need more information please contact us.
Call To Order
1-866-658-7952

Product Details

This Winch's Configuration
Mounting ConfigurationFOLS
(Front Overwound Left Side)
Line Pull Rating (lbs.)10,000
Gear Ratio29:01:00
Drum Length11-5/8”
ClutchLever
Series Features
  • Fast Line Speed” (33 ft/min)
  • Includes Brake
  • Recommended cable 7/16”
  • Meets SAE-J706
  • Made in the USA

Specifications

Rated Line Pull10,000 Lbs / 4,536 Kg
NoteRated line pull is based on the first layer of cable.
1st Layer Line Speed33 Ft/Min / 10.1 M/Min
Gear Ratio29:1
Weight w/o Cable160 Lbs / 73 Kg
Brake"Optional auxiliary brake is available", Yes – brake is self-locking
CableNone
Drum Size (L x F x B)11.63 x 7.88 x 3.63 In / 295.4 x 200.2 x 92.2 MM
Cable Capacity130 Ft / 39.6 M
Recommend Cable Size7/16 In / 11.1 MM
Hydraulic Pressure Required2,800 PSI (193 Bar)
Hydraulic Flow Required23.0 GPM (87 LPM)
Motor Size6.2 Cu. In. / 102 cc
Additional Motor OptionsCall Factory
Clutch TypeBlocked, Lever Style
Clutch ControlManual

Shipping

Warranty

RAMSEY WINCH warrants each new RAMSEY Winch to be free from defects in material and workmanship for a period of one (1) year from date of purchase.
