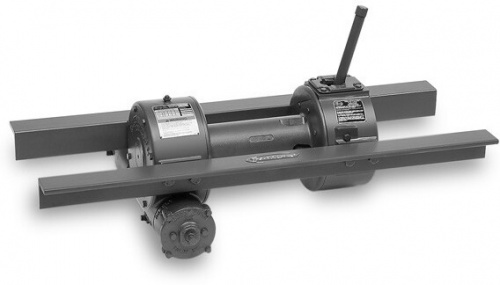

Ramsey Winch - H700 with 15,000lbs pull

Ramsey Winch - H700 with 15,000lbs pull
+ Tap or click image to enlarge
Hydraulic Worm Gear Winch
$7,047.14 $7,516.95
SKU 120460
Free Shipping
Ramsey Winches are built to order currently, due to supply limits. It may be up to 16-24 weeks for an order to be shipped. If you need more information please contact us.
Call To Order
1-866-658-7952

Product Details

This Winch's Configuration
Mounting ConfigurationFOLS
(Front Overwound Left Side)
Line Pull Rating (lbs.)15,000
Gear Ratio35:01:00
Drum Length11”
ClutchDow-Lok
Series Features
  • Heavy Duty
  • Includes Brake
  • Recommended cable 9/16”
  • Meets SAE-J706
  • Made in the USA

Specifications

Rated Line Pull15,000 Lbs / 6,804 Kg
NoteRated line pull is based on the first layer of cable.
1st Layer Line Speed27 Ft/Min / 8.2 M/Min
Gear Ratio35:1
Weight w/o Cable258 Lbs / 117 Kg
BrakeYes – brake is self-locking (Includes auxiliary brake)
CableNone
Drum Size (L x F x B)11.00 x 10.63 x 4.75 In / 279.4 x 270.0 x 120.7 MM
Cable Capacity170 Ft / 51.8 M
Recommend Cable Size9/16 In / 14.3 MM
Hydraulic Pressure Required2,750 PSI (190 Bar)
Hydraulic Flow Required30.0 GPM (114 LPM)
Motor Size9.6 Cu. In. (157 cc)
Additional Motor OptionsCall Factory
Clutch TypeBlocked, DOW-LOK®
Clutch ControlAir, Manual

Shipping

Warranty

RAMSEY WINCH warrants each new RAMSEY Winch to be free from defects in material and workmanship for a period of one (1) year from date of purchase.
