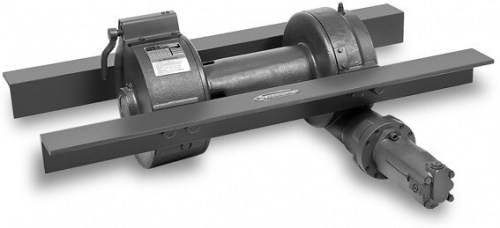

Ramsey Winch - H930 with 30,000lbs pull

Ramsey Winch - H930  with 30,000lbs pull
+ Tap or click image to enlarge
Hydraulic Worm Gear Winch
$9,107.75 $10,715.00
SKU 120651
Free Shipping
Ramsey Winches are built to order currently, due to supply limits. It may be up to 16-24 weeks for an order to be shipped. If you need more information please contact us.
Call To Order
1-866-658-7952

Product Details

This Winch's Configuration
Mounting ConfigurationFOLS
(Front Overwound Left Side)
Line Pull Rating (lbs.)30,000
Gear Ratio41:01:00
Drum Length13-7/8"
ClutchDow-Lok
Series Features
  • Heavy Duty
  • Includes Brake
  • Recommended cable 3/4”
  • Meets SAE-J706
  • Made in the USA

Specifications

Rated Line Pull30,000 Lbs / 13,608 Kg
NoteRated line pull is based on the first layer of cable.
1st Layer Line Speed13 Ft/Min / 3.9 M/Min
Gear Ratio41:1
Weight w/o Cable515 Lbs / 234 Kg
BrakeYes – brake is self-locking (Includes auxiliary brake)
CableNone
Drum Size (L x F x B)13.81 x 13.12 x 6.00 In / 350.8 x 333.2 x 152.4 MM
Cable Capacity155 Ft / 47.2 M
Recommend Cable Size3/4 In / 19.1 MM
Hydraulic Pressure Required2,500 PSI (172 Bar)
Hydraulic Flow Required35.0 GPM (132 LPM)
Motor Size24.0 Cu. In. (393 cc)
Additional Motor OptionsCall Factory
Clutch TypeBlocked, DOW-LOK®
Clutch ControlAir, Manual

Shipping

Warranty

RAMSEY WINCH warrants each new RAMSEY Winch to be free from defects in material and workmanship for a period of one (1) year from date of purchase.
