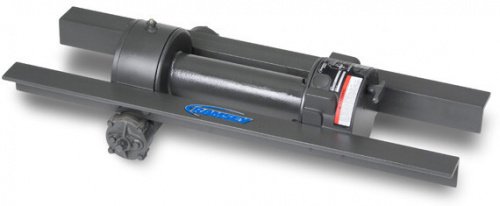

Ramsey Winch - H300 with 9,000lbs pull
+ Tap or click image to enlarge
Hydraulic Worm Gear Winch
$2,263.08
$2,413.95
SKU 121527
Product Details
| This Winch's Configuration | |
|---|---|
| Mounting Configuration | FOLS (Front Overwound Left Side) |
| Line Pull Rating (lbs.) | 9,000 |
| Gear Ratio | 60:01:00 |
| Drum Length | 11-5/16” |
| Clutch | Ram-Lok |
- Recommended cable 3/8”
- Meets SAE-J706
- Made in the USA
Specifications
| Rated Line Pull | 9,000 Lbs / 4,083 Kg |
| Note | Rated line pull is based on the first layer of cable. |
| 1st Layer Line Speed | 12.6 Ft/Min / 3.8 M/Min |
| Gear Ratio | 60:1 |
| Weight w/o Cable | 110 Lbs / 50 Kg |
| Brake | "Optional auxiliary brake is available", Yes – brake is self-locking |
| Cable | None |
| Drum Size (L x F x B) | 11.31 x 7.25 x 3.50 In / 287.3 x 184.2 x 88.9 MM |
| Cable Capacity | 140 Ft / 42.7 M |
| Recommend Cable Size | 3/8 In / 9.5 MM |
| Hydraulic Pressure Required | 1,750 PSI (121 Bar) |
| Hydraulic Flow Required | 15.0 GPM (57 LPM) |
| Motor Size | 4.5 Cu. In. (74 cc) |
| Additional Motor Options | Call Factory |
| Clutch Type | Blocked, RAM-LOK®, DOW-LOK®, Lever Style |
| Clutch Control | Air, Manual, Electric |
